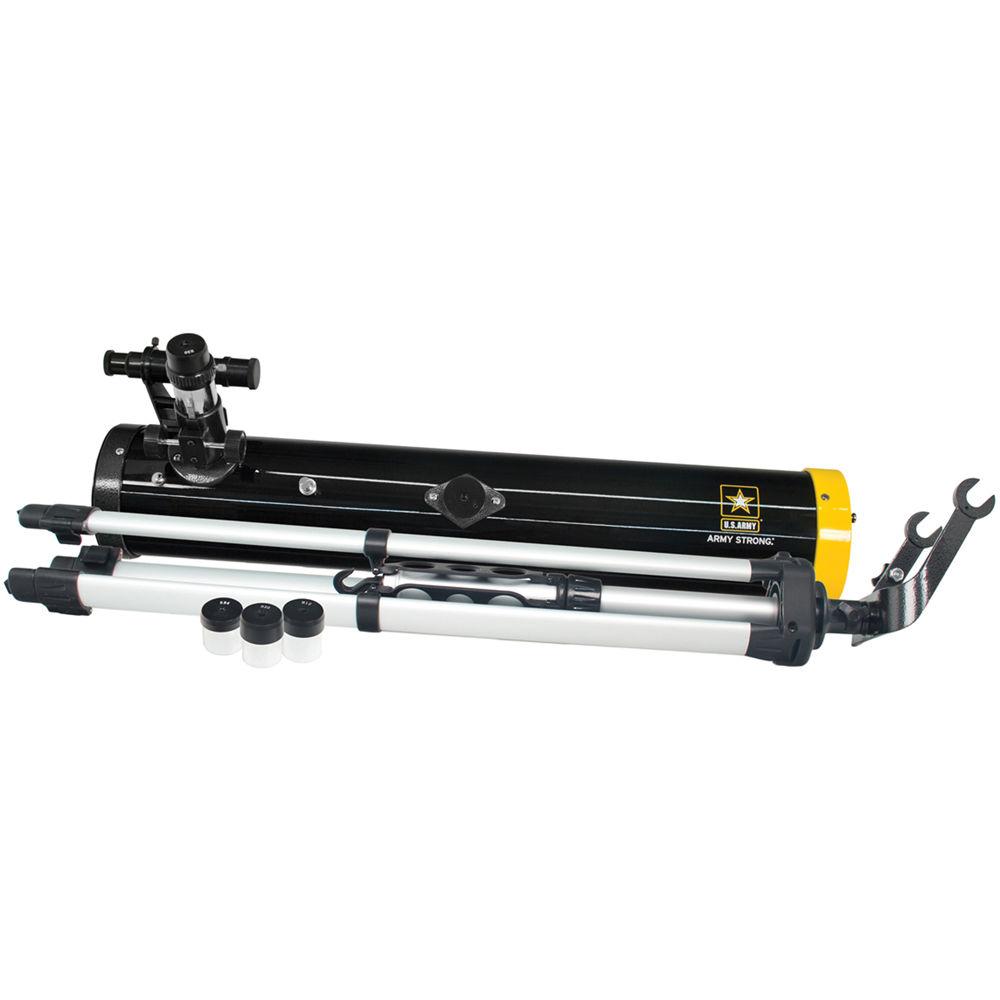

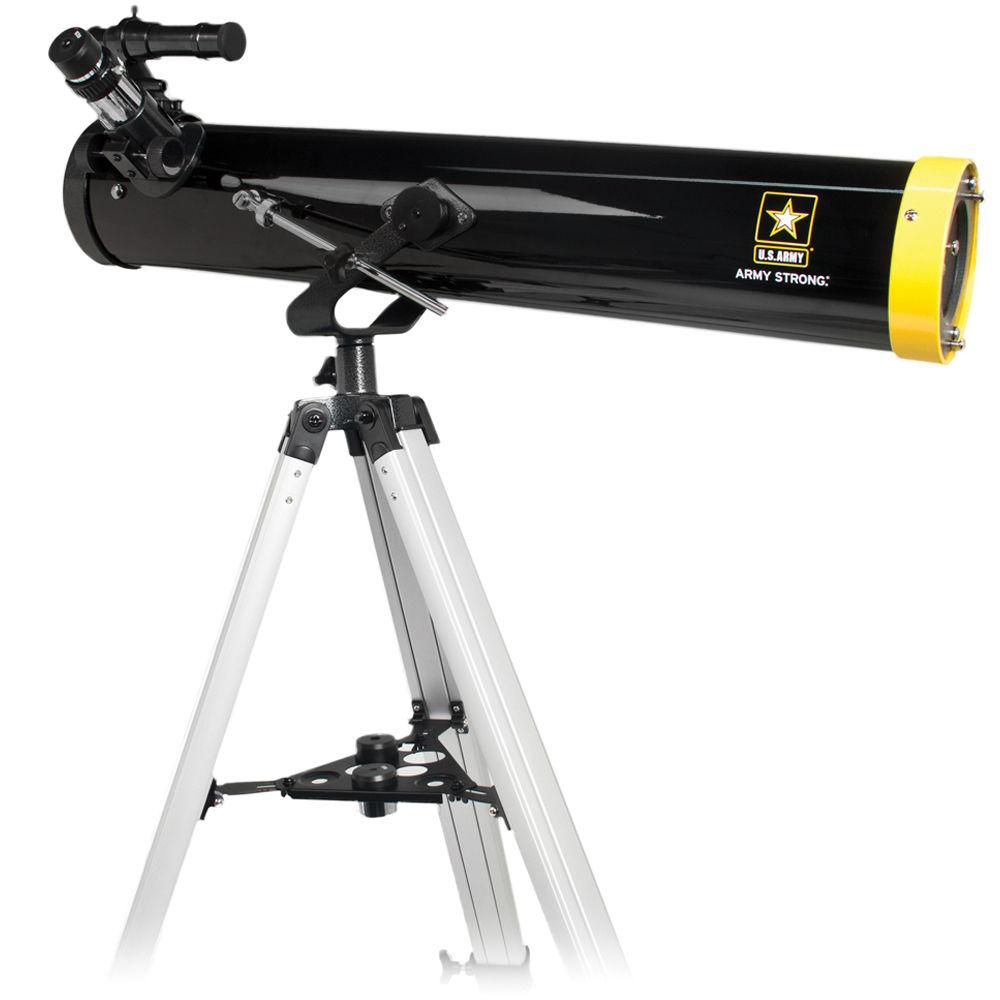

Product description The US Army 3" f/9.2 Reflector Telescope from Bower is a complete kit for observing the moon, planets, and bright deep-sky objects. Three fully multicoated eyepieces provide 175x, 56x, and 35x magnifications, and the focuser will accept any 1.25" eyepiece or accessory for expanding your observation capabilities. An adjustable height aluminum tripod provides a stable platform for sky watching. - Optical Performance
-
- 3" aperture
- 700mm focal length
- f/9.2 focal ratio
- Newtonian reflector optical design
- Anti-reflection fully multicoated optics increases light transmission for brighter and clearer images

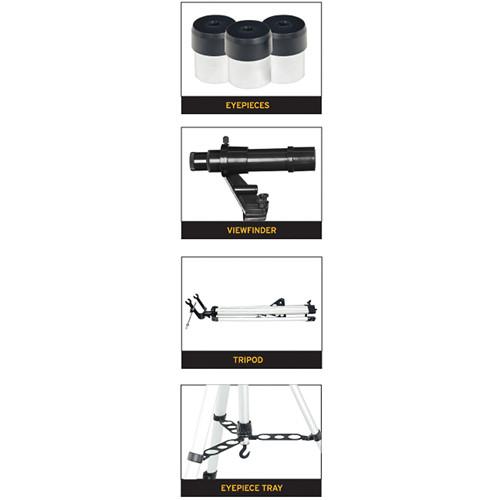

- Included Eyepieces and Accessories
-
- 1.25" Rack-and-Pinion focuser
- Anti-reflection fully multicoated optics reduces light loss
- 4mm eyepiece yields 175x magnification
- 12.5mm eyepiece yields 56x magnification
- 20mm eyepiece yields 35x magnification
- 5x24 finderscope with bracket
- Mount and Tripod
-
- Alt-Az mount with control arm
- Aluminum tripod with accessory tray
- Tripod height range from 27.6 to 46.5"
UPC: 636980830889 In the Box US ARMY 3" f/9.2 Reflector Telescope Tripod with Accessory Tray Alt-Az Mount 4mm Eyepiece 12.5mm Eyepiece 20mm Eyepiece 5x24 Finderscope and Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the US ARMY 3" f 9.2 Reflector Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUS ARMY US-TF70076 Specs | Optical Design | Newtonian reflector | | Aperture | 3" (76 mm) | | Focal Length | 700 mm | | Focal Ratio | F/9.2 | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | N/A | | Finderscope | 5 x 24 | | Tripod | Aluminum 2-Stage
Minimum height: 27.6" (70 cm)
Maximum height: 46.5" (118 cm)
Payload capacity: 5.5 lb (2.5 kg) | | Mount Type | Alt-Az | | Optical Tube Dimensions | Not specified by manufacturer | | Weight | 4 lb (1.8 kg), OTA | | | | Package Weight | 11.8 lb | | Box Dimensions (LxWxH) | 29.0 x 10.0 x 9.0" |
