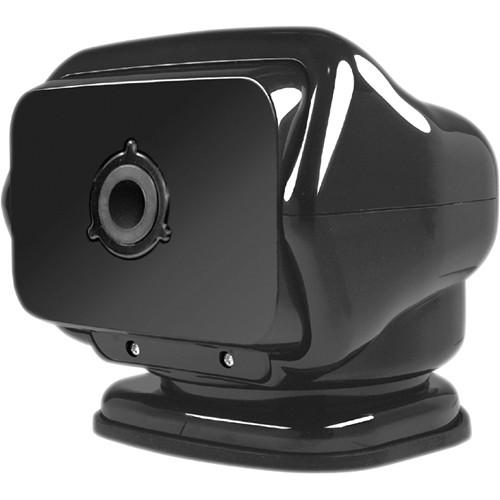

Product description The 160x120 resolution configuration ATAC 360 Magnetic Pan/Tilt Thermal Camera Kit from US Night Vision is a mobile thermal imaging device housed in a robotic motion control unit. The 160x120 VOx thermal sensor measures the heat signature within the field of view and enables the operator to see beyond smoke, dust, and fog obscuring the visual scene. Thermal imaging technology creates an image by identifying differences in temperature, making the Advanced Thermal Acquisition Camera (ATAC) capable of consistently operating in daylight, pitch dark, and dynamic lighting conditions. The ATAC thermal camera's pan/tilt mechanism is wirelessly operated by RF remote control. The radio frequency of the remote control can be programmed to prevent accidental interference with nearby ATAC units. Complete 360-degree pan capability delivers panoramic situational awareness at the push of a button. Both the pan and tilt axes are driven by high-torque motors with encased metal gears, ensuring responsive, precise, and smooth camera motion. This configuration of the ATAC 360 Thermal Camera includes a 7-inch Magellan RoadMate 1700 GPS that doubles as a display screen for the thermal camera. This system is plug-and-play right out of the box, permitting operators to seamlessly toggle between the RoadMate's GPS functions and real-time native resolution images of the thermal scene. The ATAC 360 is also compatible with the NightMIR master controller, which expands the functionality of the thermal camera to include digital zoom, selectable color palettes, manual gain control, reversible polarity, selectable crosshair reticle, and multiple output ports. The weather sealed housing, 30Hz refresh rate, and rapidly deployable-magnetic mount make the ATAC 360 a useful thermal imaging platform for law enforcement personnel and first responders. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Thermal Camera
-
- 160x120 VOx microbolometer
- 7.5-13.5µm spectral response
- <50mK thermal sensitivity
- NTSC video output
- 30Hz refresh rate
- White hot image polarity
- Magnetic Mount
-
- 360° pan and 135° tilt maximum range of motion
- High torque motors with encased metal gears
- Weather sealed housing
- Magnetic base mounts directly to vehicle roof or Universal Roof Rack (sold separately)
In the Box US NightVision ATAC 360 Magnetic Pan/Tilt Thermal Camera Kit (160x120) Wireless Remote Control 7" Display 25 ft Power/Video Cable Install Manual Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the US NightVision ATAC 360 Magnetic Pan Tilt Thermal Camera Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUS NightVision 001293 Specs Array Configuration | 160 x 120 VOx microbolometer | Sensitivity | <50 mK | Spectral Response | 7.5 - 13.5µm | Magnification | Not specified by mfr | Field of View | 24°; or 7° when zoomed | Minimum Focus Distance | Not specified by mfr | Refresh Rate | 30 Hz | Video Output | NTSC | Power Source | 12 VDC | Run Time | Not specified by mfr | Weatherproofing | Water sealed | Operating Temperature | -4 to 140°F (-20 to 60 °C) | Dimensions | 8 x 7.25 x 6.75" (20 x 18 x 17 cm) | Weight | 4 lb (1.8 kg) |
