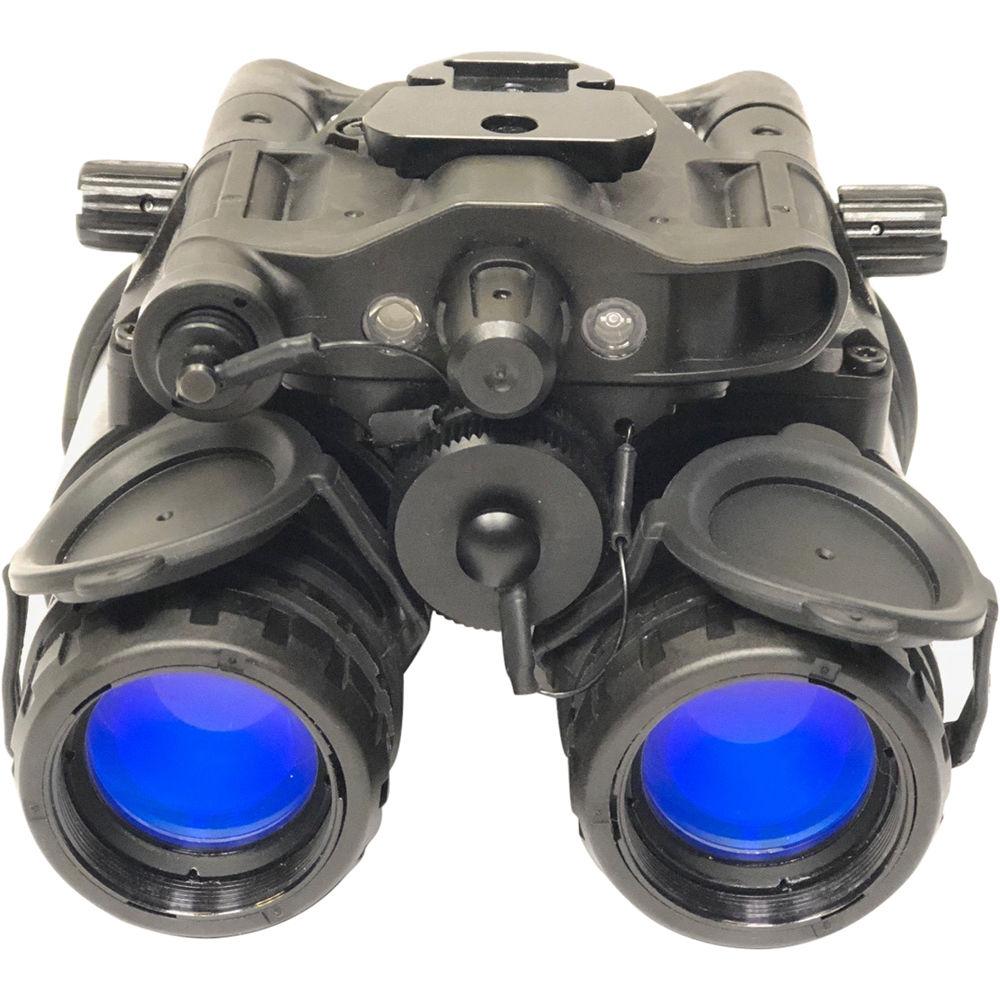

User Manual for US NightVision Harris F5032 Lightweight 1x27 Night Vision Binocular Click to enlarge the picture
Contents of the user manual for the US NightVision Harris F5032 Lightweight 1x27
- Product category: Night Vision Binoculars US NightVision
- Brand: US NightVision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for US NightVision Night Vision Binoculars
 |
User manual for the US NightVision Harris F5032 Lightweight 1x27 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any US NightVision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official US NightVision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a US NightVision product will considerably shorten its lifespan!
|
Product description The US Night Vision Harris F5032 Lightweight 1x27 Night Vision Binocular packs a powerful NVD into a compact and lightweight package for stealth operations that require strict light discipline and unencumbered movement. This unmagnified optic has a 40° field of view and an exceptionally short 10-inch close focus distance so you can perform tasks while maintaining blackout conditions. Lens coatings not only maximize light transmission, but are also water repellent and dust, smudge, and scratch resistant. To further protect the objectives the F5032 come with a set of sacrificial front lenses, and a set of Demist Shields ensure condensation won't collect on your oculars in extreme conditions. An integrated IR illuminator can flood a large area in infrared light to allow you to see even in zero-light conditions such as in closed rooms. Built to withstand the rigors of combat and extreme environments, the chassis is made of a proprietary glass-reinforced Ultem thermoplastic that is heat, solvent, and flame resistant. It is nitrogen-filled and O-ring sealed to be waterproof and submersible to a depth of 66 feet and resistant to internal fogging. An advanced sensor system detects when the binocular is in use and pointed directly up and won't shut off like other similar models, allowing its use while climbing a ladder, scaling a wall, or directing a chopper landing. As one would expect from a NVD the F5032 has manual or automatic brightness control, system indicators for when the illuminator is activated and low battery warning, and an auto shut-down that prevents damage to the intensifier tubes if a light is suddenly turned on. This NVD runs on a single included AA battery, and can easily be mounted on a helmet using an optional mount—and at just over one pound won't require a rear counterweight. The export of night vision equipment is strictly prohibited without a valid export license issued by the U.S. Department of State, Office of Defense Trade Controls, in accordance with International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130. - Performance
-
- HARRIS MX-11769 white phosphor intensifier tubes, hot-swappable for quick field changes and minimal down-time
- Unmagnified 1x power shows the scene exactly as it is with excellent situational awareness, a virtually unlimited eye relief, and extremely short close focus distance
- Anti-reflection optical coating protects lenses while being water repellent and dust/smudge/scratch resistant
- Integrated IR illuminator floods area with infrared light to enable viewing in zero-light areas, like closed rooms or overcast skies, with a maximum throw of 82'
- Extremely short 10-inch close focus distance for tasks such as administering first aid, reading maps, or servicing a field radio while maintaining proper light discipline
- Use and Handling
-
- Automatic vertical viewing system recognizes when the binocular is in use and prevents shut-off when a user tilts their head to look up
- Auto shut-off functions only when the goggles are in the stowed position
- Automatic cut-off system disables binocular when bright light is detected to prevent damage to intensifier tubes
- Manual or automatic brightness control enables customized view based on situation or personal preference
- Virtually unlimited eye relief provides comfortable viewing
- Wide 52-75mm interpupillary distance adjustment range
- +2/-2.5 dioptric correction enables tack-sharp focusing
- Low battery and IR illuminator activated LED indicators
- Construction Details
-
- Strong and durable heat/solvent/flame-resistant glass reinforced Ultem thermoplastic chassis
- Winged eyecups block peripheral light from entering the eye from the side, improving brightness, clarity, and contrast
- Waterproof and submersible to a depth of 66-feet
- Nitrogen-filled to be resistant to internal fogging when moving through extreme changes in temperature and environmental conditions
- Broad -35 to 126°F operating temperature
- Integrated top mounting rail for optional helmet mount
- Runs on one included AA battery
- Included Accessories
-
- Sacrificial windows install in front of the objective lenses and protect them from scratches and scuffs, especially from fine sand and debris in heavy driving winds
- Demist Shields install on eyepieces and prevent condensation from forming on the ocular lenses when moving through wide temperature variations
- Objective and ocular lens caps protect lenses when optic is not in use
- Non-abrasive lens tissues keep the lenses free from dust and smudges
- Two AA batteries, one for the binocular and a spare
- Soft carrying case & neck strap
- Helmet mountable with optional adapters
In the Box US NightVision Harris F5032 Lightweight 1x27 Night Vision Binocular Soft Carry Case Neck Strap Lens Cloth 2 x Eyecups 2 x Sacrificial Windows 2 x Demist Shield 2 x Ocular Caps 2 x Objective Caps 2 x AA Battery Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the US NightVision Harris F5032 Lightweight 1x27 Night Vision Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUS NightVision F5032 Specs | Intensifier Tube | HARRIS MX-11769 White Phosphor | | Magnification | 1x | | Objective Lens Diameter | 27 mm | | Angle of View | 40° | | Minimum Focus Distance | 10.0" / 25.0 cm | | Eye Relief | Unlimited | | Dioptric Correction | +2 / -2.5 | | Interpupillary Adjustment | 52.0-75.0 mm / 2.04-2.95" | | Infrared Illuminator | Yes | | Battery | 1 x AA Alkaline or Lithium | | Runtime | >24.0 h, Lithium
>15.0 h, Alkaline | | Weatherproofing | IPX8-rated, Waterproof
Submersible to 66.0' / 20.0 m | | Temperature Ranges | Operating Temperature: -35 to 126°F / -37 to 52°C
Storage Temperature: -51 to 160°F / -46 to 71°C | | Dimensions | 5.4 x 5.2 x 3.25" / 13.7 x 13.2 x 8.3 cm | | Weight | 17.6 oz / 500.0 g |
