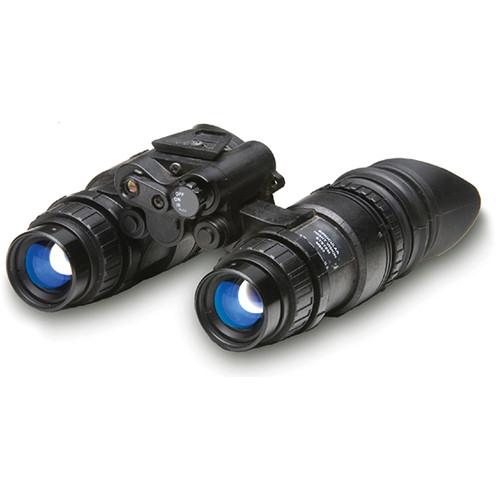

User Manual for US NightVision L-3 AN PVS-15 M953 Omega 1x27 Night Vision Binocular Click to enlarge the picture
Contents of the user manual for the US NightVision L-3 AN PVS-15 M953
- Product category: Night Vision Binoculars US NightVision
- Brand: US NightVision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for US NightVision Night Vision Binoculars
|
User manual for the US NightVision L-3 AN PVS-15 M953 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any US NightVision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official US NightVision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a US NightVision product will considerably shorten its lifespan!
|
Product description The L-3 AN/PVS-15 M953 Omega 1x27 Night Vision Binocular from US NightVision is a powerful night vision binocular. The L-3 AN/PVS-15 M953 Omega has two thin filmed third generation intensifiers and an auto-gated power supply. It can be attached to a headgear assembly such as the included PASGT Helmet Mount Assembly for hands-free use or as a hand-held. True stereoscopic vision is possible, and enhanced, by the two third generation thin filmed intensifier tubes. Depth perception can be a crucial concern and this binocular offers outstanding three dimensional viewing in a cost effective, feature laden package. This lightweight unit is a multi-use, professional system offering versatility and performance not found in single tube designs. High quality objective and ocular lenses provide a clear sharp line of sight; while the two auto-gated thin filmed Omega third generation intensifier tubes deliver outstanding resolution. Automatic brightness control and high light tube cut-off protection ensures even illumination in fluctuating light conditions and keeps the electromechanical components out of harm's way. With the L-3 AN/PVS-15 M953 Omega, you can head into the darkest of places, and seemingly turn night into day. There are many different variables that affect the distance that one can see with a night vision device, among them the object's size, the level of details being sought from the object and the conditions of observation. Night vision devices detect much further under a full moon and clear skies than they will under a new moon and cloudy skies. Many different formulas are used to determine the statistic of maximum viewing range and the method of calculation varies by manufacturer. The important factors to consider when evaluating any night vision device are the intensifier tube's generation, s/n ratio, level of magnification, specified resolution, along with the clarity & light transmission efficiency of the optical system. All night vision devices sold by have mechanisms in place to protect the intensifier tube from a sudden burst of bright light, but this does not mean that bright light doesn't damage the device. No matter what, bright light in any form is not good for the longevity and performance of image intensifier tubes. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - PASGT helmet mount Assembly included for hands free use
- Integrated IR Illuminator extends usability in no light situations
- Diopter Adjustment of +2 to -6 allows individual eye customization
- Automatic brightness control and high light tube cut-off protection
- Redundant dual-tube design with an eye relief of 25 mm provides stereoscopic vision
- 2 third generation Omega auto-gated intensifier tubes with a thin film coating on the cathode
In the Box US NightVision L-3 AN/PVS-15 M953 Omega 1x27 Night Vision Binocular PASGT Helmet Mount Assembly 2 x Demist Shields 2 x Sacrificial Windows 2 x Eye Cups Lens Cover Set AA Battery Soft Case Lens Paper Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the US NightVision L-3 AN PVS-15 M953 Omega 1x27 Night Vision Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUS NightVision AN/PVS-15 Specs | Intensifier Tube | Third generation | | Infrared Illuminator | Yes | | Magnification | 1x | | Resolution | 64 lp/mm minimum | | Angle of View | 40° | | Field-of-View (@ 1000 Yds) | 2100' @ 1000 yds / 697.2 m at 1000 m | | Minimum Focus Distance | 82' / 25 m | | Lens System | 27 mm | | Power Source | 1 AA Battery / ≈16 hrs at room temperature | | Weatherproofing | Submersible to 65.6' / 20 m | | Dimensions | 6.5 x 4.9 x 3.3" / 165.1 x 124.5 x 83.8 mm | | Weight | 1.6 lb / 726 g |
