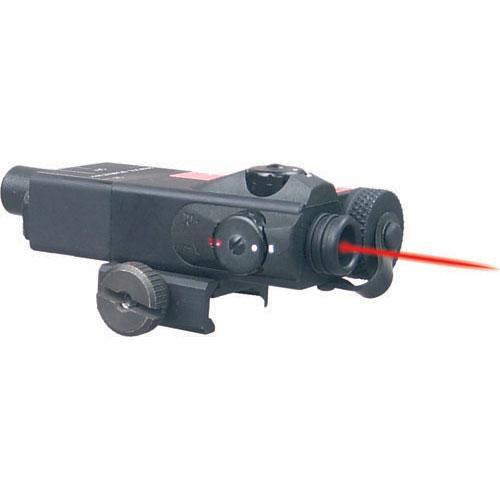

User Manual for US NightVision LDI ITAL Laser Designator Click to enlarge the picture
Contents of the user manual for the US NightVision LDI ITAL Laser Designator
- Product category: Laser Sights & Illuminators US NightVision
- Brand: US NightVision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for US NightVision Laser Sights & Illuminators
|
User manual for the US NightVision LDI ITAL Laser Designator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any US NightVision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official US NightVision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a US NightVision product will considerably shorten its lifespan!
|
Product description This LDI ITAL Laser Designator is designed for military and law enforcement applications; this aiming laser is capable of pinpoint target designation and acquisition. This ITAL laser is configured with an 835 nm infrared pointer, and a thumb screw mount that facilitates rapid attachment to a Mil-Std 1913 Picatinny rail. ITAL stands for In-line Target Acquisition Laser, and this device is designed to be mounted in-line with the bore of your firearm. A pressure pad switch allows instant remote activation of the laser. Available to US military and law-enforcement agencies only Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITARdabbaewyrcvtucvcwbxycbcbubvdrd), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - LDI catalog number: 19002
- Waterproof to 9.8' (3.0 m)
- Picatinny compatible thumb screw mount
- Fully adjustable windage and elevation correction
- Rugged housing is machined from 6061-T6 aircraft grade aluminum alloy
- Designed For M4/M16/AR15 Firearms
- The ITAL is designed to be mounted in line with the bore of flat-top firearms. Its low-profile form-factor allows it to be mounted in front of daytime optics, holographic sights, night vision devices.
In the Box US NightVision LDI ITAL Laser Designator 1.5V "AA" Battery 6.0" Remote Cable w/Pressure Switch Right Angle Connector Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the US NightVision LDI ITAL Laser Designator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUS NightVision 000378 Specs | Type | Diode Class IIIb | | Output Power | 1 mW | | Peak Wavelength | 835 nm | | Beam Divergence | 0-6° | | Beam Diameter | 8.0mm @ 25 m | | Range of Visible Illumination | 656 yd (600 m) | | Mount | Picatinny compatible thumb screw mount | | Power Source | One 1.5V "AA" battery | | Runtime | 5.0 Hours | | Waterproofing | Waterproof to 9.8' (3.0 m) | | Dimensions | 2.8 x 1.4 x 0.73" (7.2 x 3.6 x 1.9 cm) | | Weight | 4.9 oz (139 g) |
