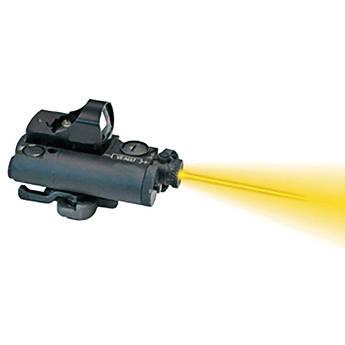

User Manual for US NightVision LDI OTAL-A Infrared Laser Pointer Illuminator Click to enlarge the picture
Contents of the user manual for the US NightVision LDI OTAL-A Infrared Laser
- Product category: Laser Sights & Illuminators US NightVision
- Brand: US NightVision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for US NightVision Laser Sights & Illuminators
|
User manual for the US NightVision LDI OTAL-A Infrared Laser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any US NightVision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official US NightVision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a US NightVision product will considerably shorten its lifespan!
|
Product description The LDI OTAL-A Infrared Laser Pointer/Illuminator from US Night Vision is a rugged compact 50mW adjustable focus laser pointer and target designator. It is constructed from anodized aircraft aluminum, is submersible to 20 meters. and features adjustable windage and elevation, making this pointer a dependable battle-ready laser aiming device. When focused, the laser pointer emits a narrow beam for precise aiming. Defocusing the laser enables the operator to paint their field of view with infrared light, increasing situational awareness in close quarter combat and low-light situations.This model of the LDI ITAL-A is configured with a 50 milliwatt beam that is visible to a range of 2000 meters, ideal for mid and long-range tasks at dusk/dawn and no light conditions. The laser mounts behind the front sight of M-4 style rifles without obscuring the operator's view or adding excess weight to the weapon barrel. Additionally, this low-profile laser device accommodates scopes, holographic sights, and night vision devices. An included remote cable pressure switch makes activation as simple as tapping the pressure sensitive pad switch. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Lightweight Rugged Construction
- Constructed from 6061T-6 anodized aircraft aluminum and submersible to 20 meters, this pointer is a dependable battle-ready laser aiming device.
- Laser Pointer
- This version of the OTAL-A is configured with a 50mw 835nm beam that is visible with night vision to a range of 2187 yd / 2000m, ideal for mid and long-range tasks at dusk/dawn and in no light conditions.
- Mounting
- A low profile design allows the laser to be easily mounted on flat top rifles ahead of scopes, holographic sights, and night vision devices.
In the Box US NightVision LDI OTAL-A Infrared Laser Pointer/Illuminator 7" Remote Cable Pressure Pad Switch Quick Release Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the US NightVision LDI OTAL-A Infrared Laser Pointer Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUS NightVision 000974 Specs | Type | Class IIIb | | Output Power | 50 mW | | Peak Wavelength | 835 nm | | Beam Divergence | 0.5 - 75 mrad | | Range of Visible Illumination | 2187 yd / 2000 m | | Mount | Mil-Std 1913 | | Runtime | Up to 20 hours of continuous operation on (1) CR123 battery | | Operating Temperature Range | -40 to 124°F / -40 to 51°C | | Waterproofing | Submersible to 66 ft / 20 m | | Dimensions | 3.8 x 1.8 x 1.45" / 9.6 x 4.6 x 3.7 cm | | Weight | 5.5 oz / 139 g |
