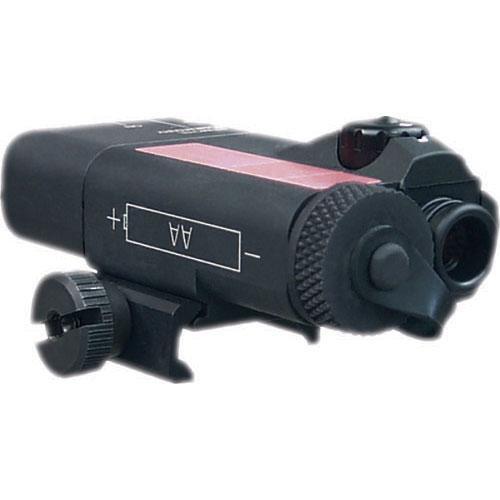

User Manual for US NightVision LDI OTAL Laser Designator Click to enlarge the picture
Contents of the user manual for the US NightVision LDI OTAL Laser Designator
- Product category: Laser Sights US NightVision
- Brand: US NightVision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for US NightVision Laser Sights
|
User manual for the US NightVision LDI OTAL Laser Designator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any US NightVision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official US NightVision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a US NightVision product will considerably shorten its lifespan!
|
Product description The LDI OTAL Laser Designator is designed for military and Law Enforcement applications. This rugged unit mounts behind the front sight cage on the AR-15, M-16 and M-4 style rifle on a Picatinny rail. The laser is offset to the axis of your rifles bore; it projects the beam around the side of the front sight post. This OTAL attaches to a Picatinny rail by means of a Picatinny-compatible thumb screw mount. The OTAL delivers a tactical level 635 nm visible laser beam to your intended target instantly upon activation. Momentary or constant-on operation of the pointer is made possible via a single or double tap to the pressure pad switch. The OTAL is only available to US military and law-enforcement agencies Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITARuqsyvztsvebtrtcvvf), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - LDI catalog number: 19101
- Picatinny thumb screw mount
- Waterproof to 9.8' (3.0 m)
- Fully adjustable windage and elevation correction
- Rugged housing is machined from 6061-T6 aircraft grade aluminum alloy
- Laser Safety
- Eye-safe in low power mode (Laser Class I), with safety block for force-on-force training
(High power mode is not eye-safe) - Tactical Switching
- Remote pressure pad switch:
Single tap enables momentary activation
Double tap instantly activates the laser in a continuous-on mode - Designed For M4/M16/AR15 Firearms
- The OTAL does not block iron sights: the laser beam projects around the left side of the front sight. Its low-profile form-factor allows the OTAL to be mounted in front of daytime optics, holographic sights, night vision devices.
In the Box US NightVision LDI OTAL Laser Designator 6.0" Remote Cable Pressure Pad Switch 1.5V "AA" Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the US NightVision LDI OTAL Laser Designator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUS NightVision 000172 Specs | | | Laser Type | Class IIIa | | Laser Color | Red | | Peak Wavelength | 635 nm | | Peak Output | 5 mW | | Beam Diameter | 0.3" / 8 mm | | Range of Illumination | 492 yd / 450 m (Night)
33 yd / 30 m (Day) | | | | Runtime | 5 Hours | | Water Resistance | Waterproof to 9.8' / 3 m | | Dimensions | L: 2.8 x W: 0.7 x H: 1.4" / L: 7.1 x W: 1.8 x H: 3.5 cm | | Weight | 4.9 oz / 139.0 g (with Battery) |
