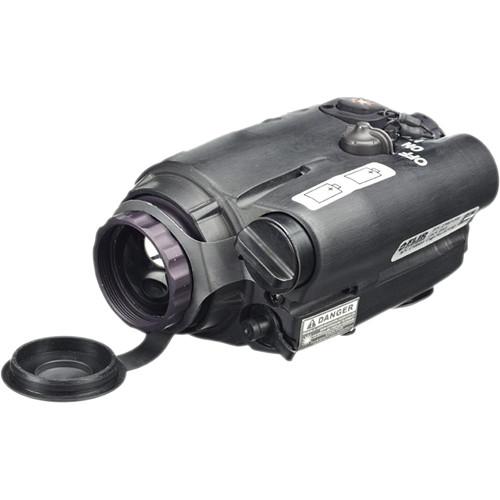

User Manual for US NightVision Recon M18 640x480 Thermal Monocular Kit with iTelligent iPad Adapter and Tripod Click to enlarge the picture
Contents of the user manual for the US NightVision Recon M18 640x480 Thermal
- Product category: Thermal Imagers US NightVision
- Brand: US NightVision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for US NightVision Thermal Imagers
|
User manual for the US NightVision Recon M18 640x480 Thermal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any US NightVision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official US NightVision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a US NightVision product will considerably shorten its lifespan!
|
Product description The Recon M18 640x480 Thermal Monocular Kit from FLIR includes a Leupold tripod and an iTelligent iPad adapter for the monocular. This kit also comes with an eyepiece adapter that allows the Recon monocular to be paired with an iPad 3. When attached to the iPad, the viewer the a handheld thermal imaging device designed for tactical professionals and first responders.For improved accuracy and target acquisition, this configuration of the Recon M18 has a built-in IR laser pointer. The 30mW laser provides adequate output for close to mid-range subjects. The thermal sensor features a 640x480 resolution and outputs native resolution images to NTSC compatible video gear for remote monitoring and recording. The monocular housing is weather sealed to Mil-Std 810F standards and includes a standard 1/4" tripod socket for stabilizing the image platform during extended-duration observations. The in-view OLED color display, 4x digital zoom capability, and image enhancement controls make the Recon M18 a full-featured thermal monocular for search and rescue missions, surveillance, and more.This item is only available to US Military and law enforcement agencies Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITARwqyewbedxrzwazvstvyazvzbfaruxwrvcrbv), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Imaging Performance
-
- 640x480 VOx microbolometer
- 18.7x14° field of view
- 2x and 4x digital zoom
- 640x480 OLED color display
- NTSC video output
- Use and Handling
-
- 30mW 850nm infrared laser pointer
- Selectable reticle pattern
- Polarity modes: Black hot, White hot, Color
- 2x and 4x digital zoom with auto-scaling reticle
- STACE digital image enhancement
- Manual calibration, NUC
- Adjustable brightness
- Automatic gain control
- Powered by two CR123 batteries
- Construction Details
-
- Mil-Std 810F compliant housing
- Operating temperature: -26 to 131°F
- Waterproof depth: 66 ft
- Weight: 17 oz with batteries
- iTelligent iPad Adapter
-
- iPad 3 compatible
- Custom fit iPad case allows access to device ports and buttons
- Impact-resistant backing protects iPad and provides non-reflective matte finish
- Multiple 1/4"-20 threaded mounts allow portrait and landscape orientation
- Anodized aluminum construction with Coyote Tan finish
- Teflon anodized eyepiece adapter for Recon M18 monocular
- 360° clocking ring adapter offers secure connection to iPad case
In the Box US NightVision Recon M18 640x480 Thermal Monocular Kit with iTelligent iPad Adapter and Tripod (IR Laser, Coyote Tan) iTelligent iPad 3rd Gen Night Vision & Optics Adapter (Coyote Xylan Finish) Eyecup Adapter Ring Tripod Carrying Bag Lanyard Laminated Quick-Reference Card Video Output Cable 2 x CR123 Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the US NightVision Recon M18 640x480 Thermal Monocular Kit with iTelligent iPad Adapter and Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUS NightVision M18 Specs | Array Configuration | 640 x 480 VOx microbolometer | | Sensitivity | Not specified by mfr | | Spectral Response | Not specified by mfr | | Digital Zoom | 2x, 4x | | Angle of View | 18.7 x 14.0° | | Lens System | Not specified by mfr | | Eye Relief | Not specified by mfr | | Minimum Focus Distance | Not specified by mfr | | Video Output | NTSC | | Display | 640 x 480 OLED | | Power Source | (2) CR123 batteries | | Run Time | Up to 3 hours of continuous operation | | Mount | 1/4"-20 | | Laser Type | Class 3b; 30mW 850nm infrared | | Weatherproofing | Mil-Std 810F | | Waterproof Depth | 66' (20 m) | | Operating Temperature | -26 to 131°F (-32 to 55°C) | | Dimensions | 5.0 x 3.3 x 2.3" (13 x 8 x 6 cm) | | Weight (with Batteries) | 17 oz (480 g) |
