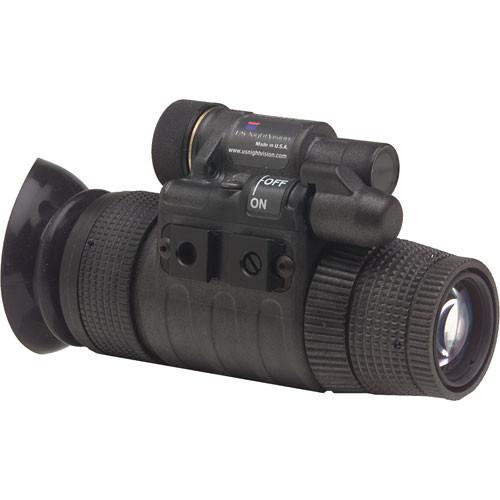

User Manual for US NightVision USNV-14 Gen 2 1.0x Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the US NightVision USNV-14 Gen 2 1.0x
- Product category: NV Monoculars & Multi-Systems US NightVision
- Brand: US NightVision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for US NightVision NV Monoculars & Multi-Systems
|
User manual for the US NightVision USNV-14 Gen 2 1.0x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any US NightVision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official US NightVision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a US NightVision product will considerably shorten its lifespan!
|
Product description US NightVision Corporation is a leading manufacturer and distributor of the latest and highest quality night vision and tactical equipment. Whether you're looking for body armor, a thermal imaging weapon sight, or a hands-free night vision goggle, USNV has a huge selection for you to choose from. This permutation of the USNV-14 night vision monocular is equipped with both brilliant optics and an impressive 2nd generation image intensifier. This highly-refined nighttime optic is built for the rigors of intense field use and abuse; its rugged housing is fully sealed, waterproof, and purged with dry nitrogen to maintain image clarity in dynamic climates. When operating under total-darkness conditions, the integral IR unit provides supplementary illumination that is invisible to the human eye. The optical system of this monocular is based upon unity, or 1:1 magnification - a battle-proven viewing style that incorporates the independent use of each eye. This tactic enhances the operator's FOV while facilitating the retention of full peripheral vision in the unaided eye. The USNV-14's noticeably-discreet form-factor occupies a smaller footprint than the well known A/N PVS-14 - yet this optic shares nearly identical specifications, capabilities, and performance levels as its older battle-tested cousin. It can be used hand-held, head/helmet mounted, tripod mounted, adapted for use with cameras and camcorders, and it can also be operated in tandem with a second USNV-14 for use as a nighttime binocular. There are many variables that affect the distance that one can see with a night vision device; the object's size, ambient weather and lighting conditions, the level of detail needed for recognition, etc. The important factors to consider when evaluating any night vision device are the generation of the intensifier tube along with its specified resolution and s/n ratio. The magnification, clarity, and light transmission performance of the NVD's optics also contribute to its low/no-light performance capabilities. All NVDs sold by feature bright-light protection systems. However, this does not mean that bright light can/will not damage the device. Exposure to bright light compromises the longevity and performance of image intensifier tubes. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITARfvaxstfbbwcxdzrxuyeezyvssasvdutyb), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Key Features
-
Integral IR illuminator, submersible nitrogen purged housing, 40 hr run-time - Tactical Accessories
-
Picatinny compatible Weapon mount Headmount and transfer arm for hands-free use Demist shield, sacrificial window, eye cup preserve optical integrity - 2nd Generation Intensifier
- Resolution: 36 lp/mm typical Second generation intensifiers are less reliant upon ambient light, produce clearer images with less distortion, and last longer than earlier versions of night vision technology.
In the Box US NightVision USNV-14 Gen 2 1.0x Night Vision Monocular Headmount Transfer Arm Military Soft Case Shoulder Strap Weapon Mount Sacrificial Window Demist Shield Eye Cup Lens Tissue AA Battery Adapter "AA" Battery CR123A Battery Intensifier Tube Data Sheet Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the US NightVision USNV-14 Gen 2 1.0x Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUS NightVision USNV-14 Specs Intensifier Tube | 2nd Generation | Magnification | 1.0x | Angle of View | 40.0° | Field-of-View (@ 1000 Yds) | 2100' (697 m at 1000 m) | Minimum Focus Distance | 9.2"/23.4 cm | Eye Relief | 27mm | Dioptric Correction | +6/-4 | Interpupillary Adjustment | Not applicable | Lens System | Objective; f/1.2 | Infrared Illuminator | Integral | Power Source | One "AA" or 1 CR123A battery | Weatherproofing | Water & fog proof, submersible to 66'/20 m | Temperature Ranges | Not specified by manufacturer | Dimensions | 5.0 x 2.8 x 2.2" (12.7 x 7.1 x 5.6 cm) | Weight | 9.2 oz (261 g) |
