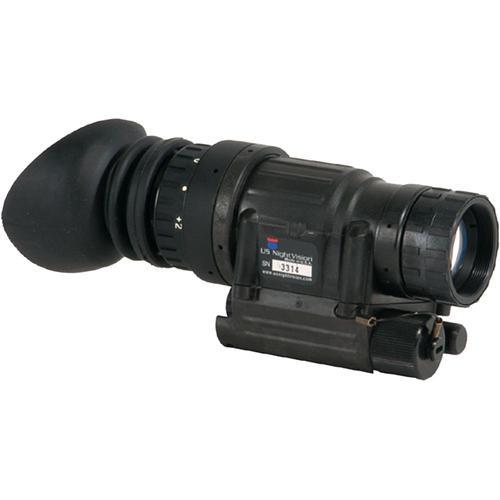

User Manual for US NightVision USNV-PVS-14A 1.0x Tactical Night Vision Monocular Goggle Kit Click to enlarge the picture
Contents of the user manual for the US NightVision USNV-PVS-14A 1.0x Tactical Night
- Product category: NV Monoculars & Multi-Systems US NightVision
- Brand: US NightVision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for US NightVision NV Monoculars & Multi-Systems
|
User manual for the US NightVision USNV-PVS-14A 1.0x Tactical Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any US NightVision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official US NightVision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a US NightVision product will considerably shorten its lifespan!
|
Product description US NightVision Corporation has a reputation as a leading manufacturer and distributor of the latest and highest quality night vision and tactical equipment that is known world wide. Their dedication to customer service, satisfaction and support is exemplary and sets an extremely high standard for the entire industry. Whether you're looking for body armor, a thermal imaging weapon sight, or a hands-free night vision goggle, USNV has a huge selection for you to choose from. The USNV-PVS-14A Tactical Night Vision Monocular Goggle Kit is configured for the most demanding of night time applications and the most discerning of users. This kit contains the renowned USNV-PVS-14A: this NVD offers a power-house feature-set that includes a manual variable-gain control that provides the highest quality image at all times, regardless of the lighting conditions. The PVS-14A is engineered to operate on a single "AA" battery. This extremely lightweight and versatile night vision monocular can be head-mounted, handheld or camera adapted. The heart of this PVS-14 sports a finely crafted third generation intensifier that resolves 64 lp/mm. Third generation intensifiers feature longer life spans, higher resolution and lower levels of bright light blooming. You can be sure that regardless of the situation, you will have a bright, clear and detailed image. This Tactical Kit comes packaged with a head mount and a helmet mount, along with a number of other accessories that allow the operator to maximize the versatility of the USNV-PVS-14A. There are many different variables that affect the distance that one can see with a night vision device, among them the object's size, the level of details being sought from the object and the conditions of observation. Night vision devices detect much further under a full moon and clear skies than they will under a new moon and cloudy skies. Many different formulas are used to determine the statistic of maximum viewing range and this varies by manufacturer, so ultimately the generation of the intensifier tube is much more relevant than any quoted statistic when determining the maximum viewing range. All night vision devices sold by B&H have mechanisms in place to protect the intensifier tube from a sudden burst of bright light, but this does not mean that bright light doesn't damage the device. No matter what, bright light in any form is not good for the longevity and performance of image intensifier tubes. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITARcvdsbdyfetbawdw), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - +4/-6 Dioptric adjustment
- Hands-free viewing with headgear or helmet mount
- Automatic Brightness Control and Bright Source Protection
- Manual gain control for enhanced performance in altering light conditions
- Comprehensive Tactical Kit
- Kit contains the following mission-critical items:
Headmount, PASGT helmet mount, demist shield, sacrificial window, brow pad, military soft case, shoulder strap, eye cup, daylight filter, lens tissue, lanyard, two "AA" batteries, and ops manual - ITT Third Generation Intensifier Tube
- Third generation Pinnacle intensifier resolves 64 lp/mm
Pinnacle tubes feature a thin-film ion barrier on the MCP, and a gallium-arsenide coated photocathode. The power supply was redesigned and autogated for a significantly enhanced response to dynamic lighting conditions.
Compared to standard third generation technology, Pinnacle tubes deliver a 22% higher photoresponse, a 24% improvement in S/N ratio, a significant reduction in halo diameter, a 20% greater range of vision at night, and 10,000+ hours of tube life. In the Box US NightVision USNV-PVS-14A 1.0x Tactical Night Vision Monocular Goggle Kit Military Soft Case Shoulder Strap Head Mount PASGT Helmet Mount 2 x Brow Pads Eye Cup Objective Cover/Daylight Filter Lens Cap Sacrificial Window Demist Shield Lens Tissue 2 x 1.5V "AA" Batteries Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the US NightVision USNV-PVS-14A 1.0x Tactical Night Vision Monocular Goggle Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUS NightVision USNV-PVS-14A Specs | Intensifier Tube | 3rd Generation | | Infrared Illuminator | Yes | | Magnification | 1x | | Angle of View | 40.0° | | Field-of-View (@ 1000 Yds) | 2100' (697 m at 1000 m) | | Minimum Focus Distance | 10.0"(25.0 cm) | | Lens System | f/1.2 Objective lens | | Power Source | 1 1.5-volt "AA" batteries | | Waterproofing | Water resistant | | Dimensions | 4.5 x 2.0 x 2.3" (114 x 51 x 58mm) WxHxD | | Weight | 0.86 lb (392 g) |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 56 owners. Add your rating and experience with the product.
