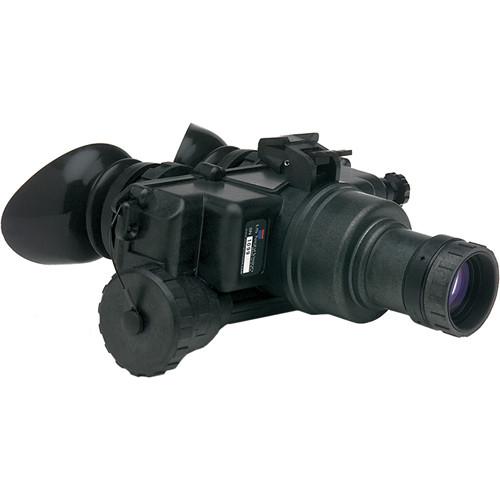

User Manual for US NightVision USNV-PVS-7 Night Vision Biocular Click to enlarge the picture
Contents of the user manual for the US NightVision USNV-PVS-7 Night Vision Biocular
- Product category: Night Vision Bi-Oculars US NightVision
- Brand: US NightVision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for US NightVision Night Vision Bi-Oculars
|
User manual for the US NightVision USNV-PVS-7 Night Vision Biocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any US NightVision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official US NightVision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a US NightVision product will considerably shorten its lifespan!
|
Product description The USNV PVS-7 from US NightVision Omega Series goggle is a night vision biocular with 1.0x magnification - unity, or 1:1, vision provides the user with complete freedom of movement while maintaining their equilibrium and balance. The PVS-7 is a bi-ocular optic that's fitted with two oculars and a single objective lens. Bi-oculars enhance the operator's long-term viewing experience with a greater level of comfort and increased levels of depth perception. Featuring simple user controls and a fully automated image tube protection, the USNV-PVS-7 provides outstanding night vision performance. An integral IR illuminator with momentary and continuous-on operation turns total-darkness conditions into an easily managed environment. Infrared-on and low-battery indicators are displayed within the operators FOV. This PVS-7 comes configured with a high-resolution 3rd generation intensifier tube with an autogated power-supply, and lightweight headgear for hands-free use. The package includes a soft military carry case, 2 AA batteries, extra brow pads, lens tissue, and the operations manual. All NVDs sold by feature bright-light protection systems. However, this does not mean that bright light can/will not damage the device. Exposure to bright light compromises the longevity and performance of image intensifier tubes. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Construction Details
-
- Waterproof Mil-Spec housing
- Soft angled rubber eye cups
- Non-reflective matte-black finish
- Use and Handling
-
- Simple user controls
- Headgear for hands-free use
- 40 Hr run-time on 2 "AA" batteries
- Infrared/low-battery displayed in FOV
- Night Vision Performance
-
- Resolution minimum = 64LP
- Signal to Noise minimum performance = 21:1
- Fully-automated intensifier tube protection system
- IR illuminator with momentary/constant-on switching
- 3rd Generation autogated intensifier tube manufactured by L3 Warrior Systems: Third generation intensifiers last longer and deliver brighter images with greater detail and less distortion than previous generations of night vision technology. The power supply is configured with an autogating circuit that significantly enhances the tube's response to dynamic lighting conditions.
In the Box US NightVision USNV-PVS-7 Night Vision Biocular Head-mount Military Soft Case 2 x Demist Shield 2 x Sacrificial Window Shoulder Strap Objective Lens Cap 2 x Brow Pads Lens Tissue Lanyard 2 x Eye Cups 2 x "AA" Batteries Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the US NightVision USNV-PVS-7 Night Vision Biocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUS NightVision USNV-PVS-7 Specs | Intensifier Tube | 3rd generation autogated | | Magnification | 1.0x | | Angle/Field of View | 40° / 2100' @ 1000 yd / 697 m at 1000 m | | Lens System | 26 mm f/1.8 Objective | | Minimum Focus Distance | 7.9" / 20.0 cm | | Eye Relief | Not specified by manufacturer | | Dioptric Correction | +2/-6 Dioptric correction | | Interpupillary Adjustment | Not specified by manufacturer | | Infrared Illuminator | Yes | | Battery / Runtime | 2 "AA" / 40 hrs w/o IR | | Weatherproofing | Waterproof | | Temperature Ranges | Not specified by manufacturer | | Dimensions | 6 x 5 x 3" / 15.2 x 12.7 x 7.6 cm | | Weight | 1.2 lb / 19.2 oz / 544 g |
