Product description Accessing and monitoring network traffic is essential to keep the network operating smoothly and the 1G Variable 4-Port Aggregator & Regenerator from US Robotics is equipped to expand an existing SPAN (Port Mirror) or TAP port monitoring capabilities. This network aggregator and regenerator can be attached to a SPAN port to analyze network traffic or admins can utilize the TAP (Test Access Point) method to analyze network traffic and gain access to both send and receive data streams simultaneously.
This network device comes equipped with a single Gigabit Ethernet unidirectional input port, a single Gigabit Ethernet unidirectional output port, dual Gigabit Ethernet input or output ports, and two power inputs. Network administrators can also take advantage of dedicated LED indicators to see power and port status of the aggregator/regenerator. Monitoring & Analysis - View entire full duplex conversations using single interface monitoring tools
- Improve visibility into the network - including VLAN tags
- Decrease reliance on switch resources for network management visibility
- Eliminate SPAN port contention, oversubscription, and configuration errors
- Easily share monitor ports for improved monitoring without maintenance windows
- Ideal for Intrusion Detection System (IDS) applications

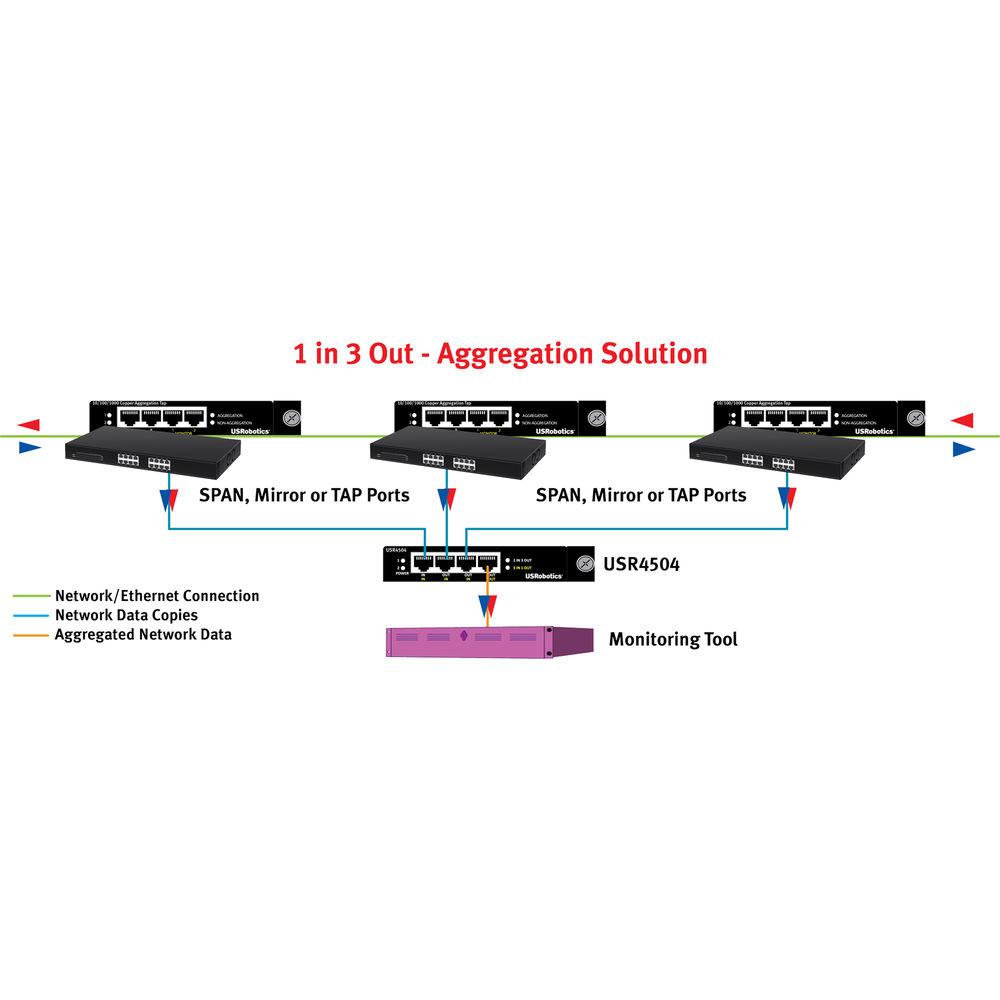

Aggregating Data (3:1 Mode) - Combine multiple network links or channels from TAP, SPAN, or mirror ports into one stream
- Monitor network traffic from up to three different sources through a single-interface monitoring tool
- Visibility into complete network conversations, including full-duplex conversations
- Provide security or analysis to a larger part of the network by allowing single port device access to traffic from multiple points in the network

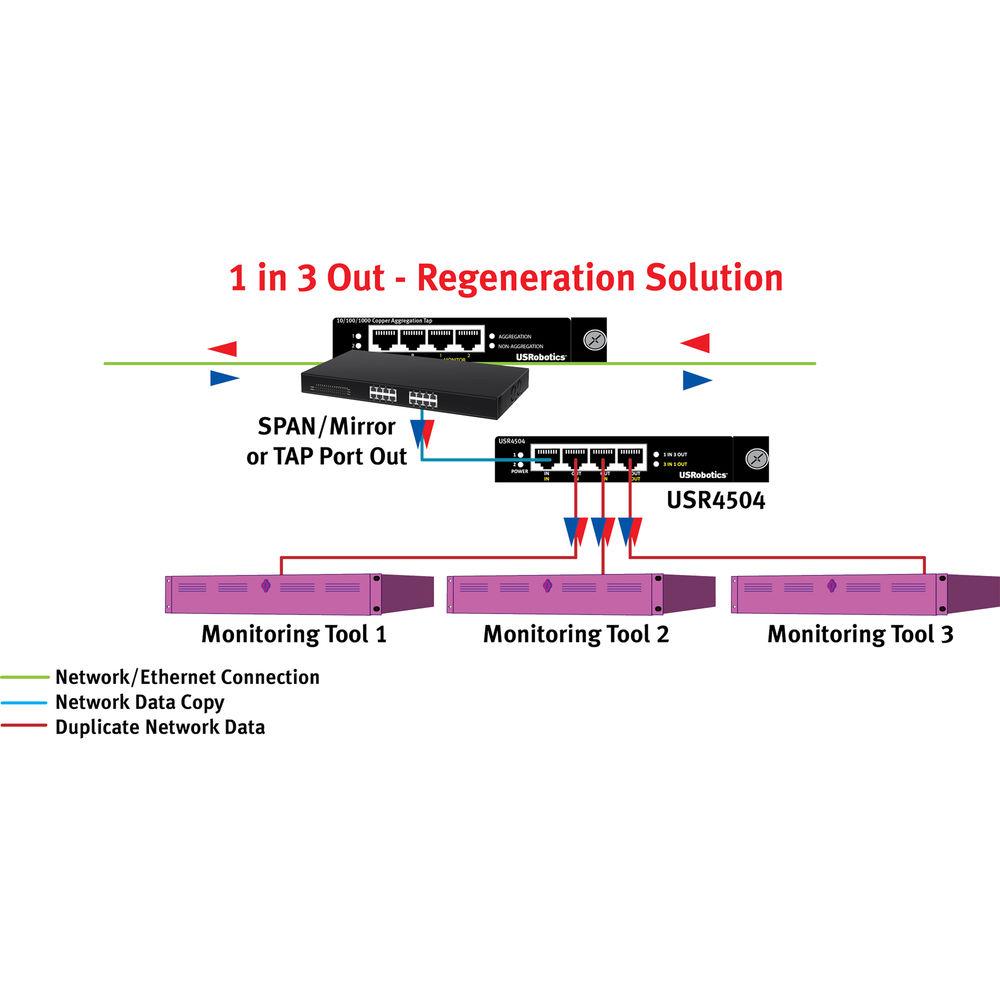

Regenerating Data (3:1 Mode) - Duplicate traffic from a single Tap or SPAN port to up to 3 monitoring tools
- Access to the same links for system redundancy, testing and advanced monitoring applications
- Expand access to data across company assets and provide a wider variety of data to each department
- Improve overall switch performance by removing port mirror degradation while freeing valuable ports
Security - No MAC or IP settings on the traffic ports makes the device invisible to the network
- Unidirectional passive traffic makes it impossible to access or infiltrate connected monitoring and analysis tools
- Redundant power supply option ensures seamless monitoring even if the main power source is unavailable
To eliminate power as a single point of failure two power supplies must be used. The second power supply must be connected to a different external power source circuit than the first power supply. Additional power supplies may be sourced using the specifications provided Simple Installation - Simple DIP switch configuration setting
- Plug and play (no configuration or management settings after switch is set) means simple and fast installation
- Deploy tools immediately without impacting production network
- Auto negotiates settings for 10/100/1000 Mbps network speeds
- All ports support Power over Ethernet (PoE) for spaces that may have limited power
- Comes with convenient attached rack mount bracket for use with the optional 1U rack mount kit for solutions of up to 3 devices
In the Box US Robotics 1G Variable 4-Port Aggregator & Regenerator AC Power Supply with Power Cords for US, UK/IRE, Europe Limited 2-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the US Robotics 1G Variable 4-Port Aggregator & Regenerator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUS Robotics USR4504 Specs | Physical Specifications | Metal 1U chassis
4 x LEDs (Power 1, Power 2, 1-In-3-Out, 3-In-1-Out)
1 x RJ-45 PoE 10/100/1000 Ethernet Unidirectional input port
1 x RJ-45 PoE 10/100/1000 Ethernet Unidirectional output port
2 x RJ-45 PoE 10/100/1000 Ethernet input or output ports
2 x Power inputs - 5.5 x 2.1mm barrel sockets
Variable DIP switch | | Power | AC Power Supply Input: 100-240 VAC, 50-60 HZ, 0.8 A
AC Power Supply Output: 5 VDC, 1 A 5 W min
AC Power Plug Dimension: 2.1 mm ID x 5.5 mm OD, center positive | | Packets | Up to 10240 bytes supported | | Temperature & Humidity | Operating Temperature: 0 to 104°F (0 to 40°C)
Non-Operating Temperature: -22 to 149°F (-30 to 65°C)
Humidity: 5 to 90% non-condensing
<25 bty> | | Regulatory Certifications | FCC approved (Part 15/Class B)
CE approved
CAN ICES-3 (A)/NMB-3(A)
RoHS Compliant
WEEE Compliant | | Dimensions | 1.10 x 5.75 x 5.75" / 2.8 x 14.6 x 14.6 cm (with rackmount) | | Weight | 0.75 lb / 0.34 kg |
