US Robotics Courier Cellular 3G Modem

Search your instruction manual in PDF to download

User Manual for US Robotics Courier Cellular 3G Modem Wireless Router

Click to enlarge the picture
US Robotics Courier Cellular 3G Modem Wireless Router Contents of the user manual for the US Robotics Courier Cellular 3G Modem
  • Product category: Modems US Robotics
  • Brand: US Robotics
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for US Robotics Modems

US Robotics Courier Cellular 3G Modem Wireless Router US Robotics Courier Cellular 3G Modem Wireless Router US Robotics Courier Cellular 3G Modem Wireless Router US Robotics Courier Cellular 3G Modem Wireless Router US Robotics Courier Cellular 3G Modem Wireless Router US Robotics Courier Cellular 3G Modem Wireless Router
User manual for the US Robotics Courier Cellular 3G Modem contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any US Robotics product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official US Robotics user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a US Robotics product will considerably shorten its lifespan!



Product description

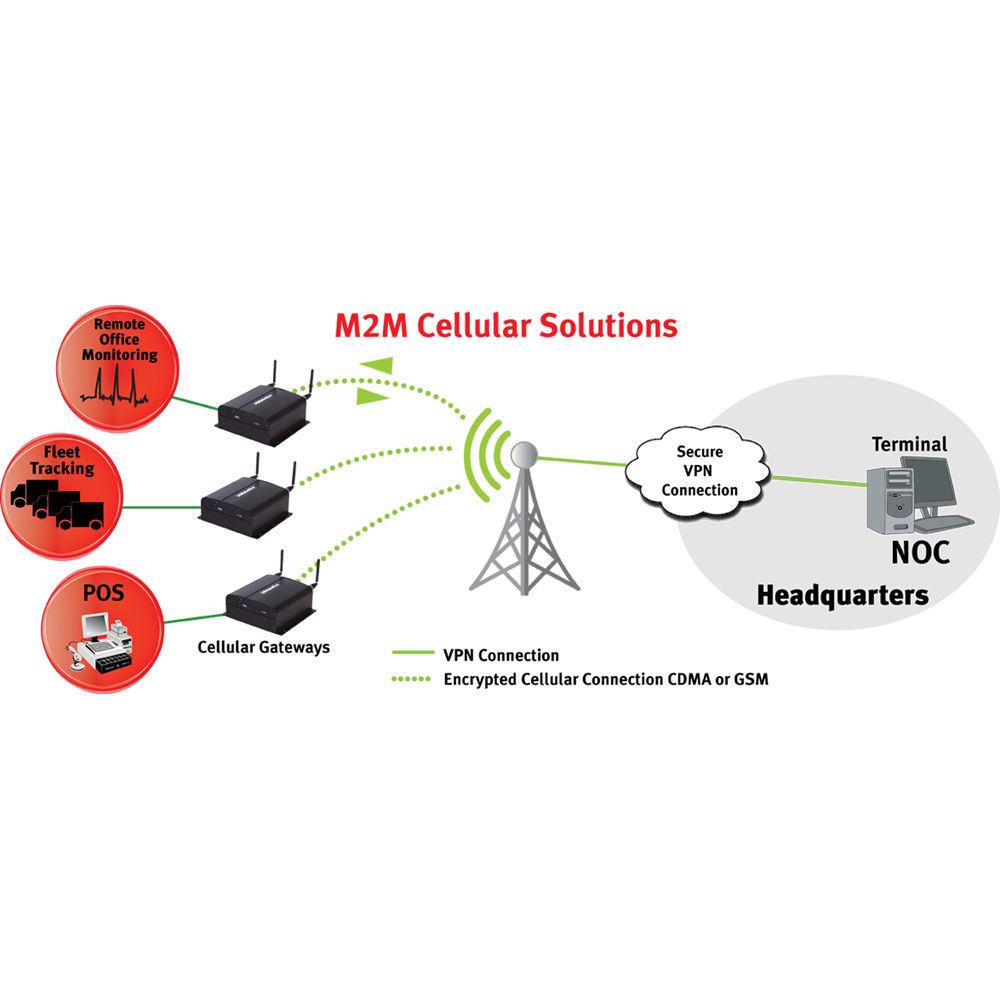

Supporting a wide range of M2M (machine to machine) applications such as remote maintenance and control, point of sale, and monitoring and automation, the Courier Cellular 3G Modem/Wireless Router from US Robotics makes it easy to manage business applications and devices from virtually anywhere. This networking device is designed to work on most major 3G cellular networks including AT&T, Verizon, Spring, US Cellular, Aeris, T-Mobile, Bell Mobility, and Telus and supports 3G, 2G, and CDMA radio technologies.

On the Courier Cellular Modem/Router you will find dual antennas supporting both WWAN and GPS functionality along with a single Fast Ethernet port. The RS-232 Serial connection found below the Fast Ethernet port is designed to support serial based systems that may already be in use by various business applications. Once configured, network admins can implement a variety of security protocols including IPsec VPN functionality and firewall support to keep intruders out of the network.

The Complete Solution

  • Access to MVNO with no volume restrictions offering worldwide SIMs and data plans
  • Provisioned SIMs available for immediate drop ship for qualified customers
  • Dedicated Sales and Engineering staff available to help plan M2M solutions

Courier Brand

  • Reliable modems trusted by IT admins for over 30 years
  • Business class, rock solid quality you can depend on for mission critical applications

Easy Setup

  • Simple and fast installation with custom settings for each device
  • Change network carriers in less than a minute
  • User friendly GUI (Graphical User Interface) for configuring SIMs, firewalls, and port filtering

Cellular Networks

  • HSPA+, HSUPA, HSDPA, UMTS, EDGE/GSM/GPRS
  • CDMA 1xRTT/EV-DO
  • AWS Band

Multiple Interfaces

  • RS-232 (DB9) Serial interface for easy communication with console ports, ATMs, digital signage, and meters
  • 10/100 RJ45 Ethernet to connect to LANs, ATMs, and POS systems (credit card processors)

Advanced Features

  • Web based remote configuration capability via dynamic DNS or static IP
  • Persistent and reliable connectivity ideal for remote management solutions
  • Remote configuration capability

Security and Reliability

  • Encrypted cellular connections when combined with a network operator's secure tunnel prevent eavesdropping and block unauthorized access

    Services dependent on MVNO partnership for qualified customers, subscriptions may be required
  • All software and configuration images are protected with digital signatures with rollback safety
  • Built in software and hardware watchdogs monitor the device automatically resolving common problems including persistent connectivity and automatic reboot ideal for remote management solutions
  • Certificate and password based security mechanisms protect all management functions. All management actions use hardware assisted encrypted links
  • Wired LAN connectivity facilitates compliance with strict medical safety requirements

Industrial Quality Design

  • Compact design ideal for branch offices with small IT closets or small off-site locations in need of remote management

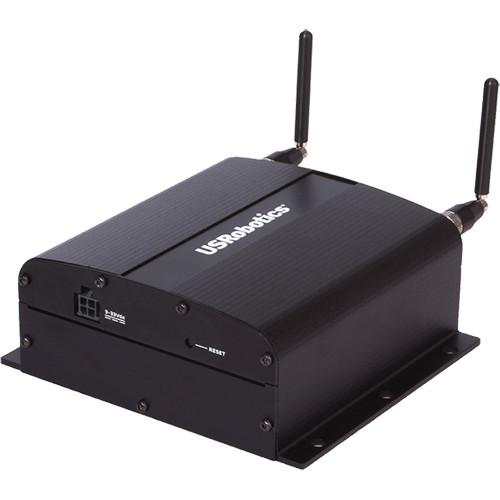

  • Rugged aluminum housing for use in harsh conditions

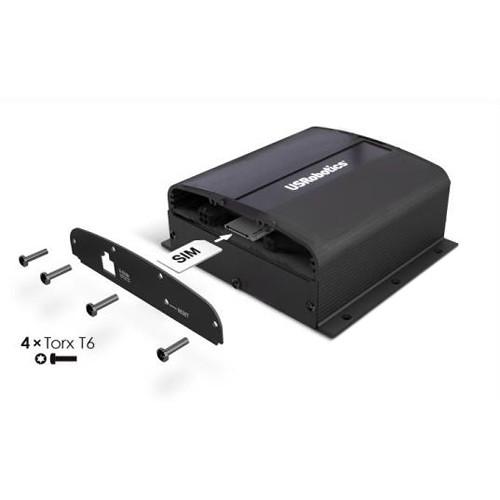

  • Concealed SIM slot discourages unauthorized removal of SIM

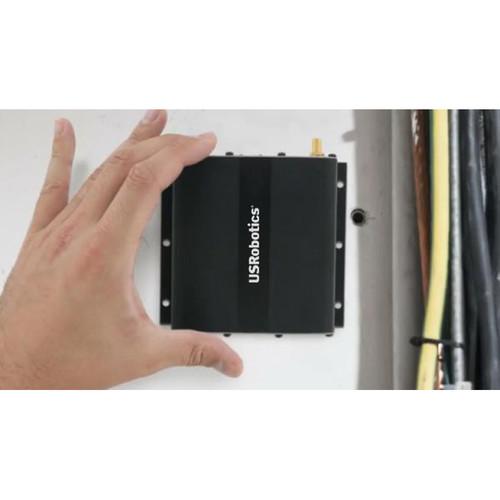

  • Versatile mounting options to increase stability and security

Embedded GPS

  • Asset tracking capability
UPC: 738168041633 In the Box US Robotics Courier Cellular 3G Modem/Wireless Router
  • 2 x 2 db SMA Penta-Band Antennas
  • US Power Supply
  • Limited 1-Year Manufacturer Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the US Robotics Courier Cellular 3G Modem Wireless Router in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    US Robotics USR3510 Specs

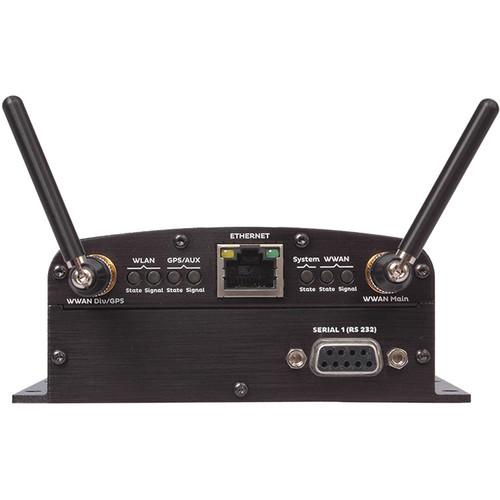

    Physical Specifications 1 x Main Antenna Connection: 50 Ohm SMA female (WWAN Main)
    1 x Diversity Antenna/GPS Connection: 50 Ohm SMA female (WWAN Div / GPS)
    1 x RS-232 Connection: DB9-F
    1 x 10/100 Mbps RJ45 Connector

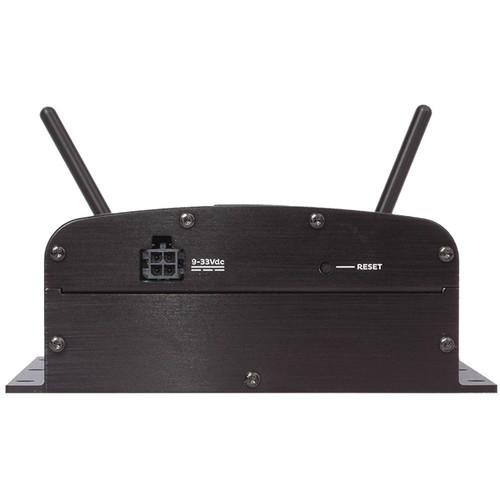

    1 x Power Connector: 4 pin Micro-Fit 3.0, dual row, 2 circuits
    7 x 3-color LEDs showing system status and signal strength
    1 x Reset switch
    1 x Internal SIM slot (1.8V/3V) - USIM/SIM Class B and Class C
    Power Specifications DC Power in 9-33 V DC
    Attached to 2G network, no Ethernet: 121 mA
    Attached to 2G network, Ethernet connected: 136 mA
    Attached to 2G network, no Ethernet, 2G call (2 Tx, 32 dBm): 270 mA, peak = 772 mA
    Attached to 3G network, no Ethernet, 3G call @ 2100 MHz (band I): 341 mA
    Technologies Radio Technology & Frequency Bands
    3G UMTS/HSDPA/HSUPA/HSPA+: 800-850/900/1900/2100 MHz and AWS band (1700/2100 MHz) (B1, B2, B4, B5, B6, B8)
    2G GSM/GPRS/EDGE: 850/900/1800/1900 MHz
    CDMA 1xRTT/EV-DO rev0/EV-DO revA (GTM689 only): 800/1900 MHz (BC0, BC1)
    Maximum Connection Speed HSPA+: 14.4 Mbps (Cat 10) down, 5.76 (Cat 6) up
    EV-DO RevA Mode: 3.1 Mbps FL / 1.8 Mbps RL
    HSPA+ Rel 7 SW features CPC (DTX/DRX), Enhanced L2, EF-DPCH
    Graphical User Interface HTML configuration is supported by most web browsers
    GPS Assisted/Standalone GPS
    - Standalone GPS, Assisted GPS, gps OneXTRA

    Wideband GPS processing (20 MHz) for improved measurement accuracy
    - Embedded Standalone GPS
    - Tracking sensitivity: -159 dBm
    - Cold start sensitivity: -145 dBm
    - Hot start sensitivity: -159 dBm
    - Open sky TTFF: cold start: 40 seconds
    - Open sky TTFF: super hot start: 1 second
    - Open sky accuracy: < 3M CEP -50

    NMEA sentences: GGA, GSA, GSV, RMC, VTG
    Security IPsec VPN
    - Encryption: 3DES, AES128, AES 256
    - Authentication: MD5, SHA1, SHA256
    - Key Group: DH1, DH2, DH5, DH14
    Firewall
    - DMZ
    - Inbound Port Forwarding
    - Outbound Port Filtering
    - Outbound Trusted IPs
    Regulation Compliance FCC
    Industry Canada/IC
    Network: PTCRB
    RoHS Compliant
    Carrier Carrier Approvals
    AT&T
    Verizon
    Sprint
    US Cellular
    Aeris
    T-Mobile
    Bell Mobility
    Telus
    Temperature & Humidity Operating Temperature: -22 to 158°F / -30 to 70°C
    Non-Operating Temperature: -40 to 185°F / -40 to 85°C
    Operating Humidity: 5 to 95% non-condensing
    Enclosure Type Industrial grade aluminum
    Mounting 6 through holes for M4 bolts - 2 x 2 compatible with VESA Mount MIS-D 75 (optional standard DIN rail mounting interface)
    Dimensions 4.53 x 4.13 x 1.77" / 11.5 x 10.5 x 4.5 cm
    Weight 0.75 lb / 0.34 kg
    Package Weight 1.1 lb
    Box Dimensions (LxWxH) 2.205 x 1.181 x 0.945"
