User Manual for US Robotics Courier Console Port Server & Remote Power Hybrid Switch Click to enlarge the picture
Contents of the user manual for the US Robotics Courier Console Port Server
- Product category: Network Switches, Bridges & Hubs US Robotics
- Brand: US Robotics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for US Robotics Network Switches, Bridges & Hubs
 |
User manual for the US Robotics Courier Console Port Server contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any US Robotics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official US Robotics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a US Robotics product will considerably shorten its lifespan!
|

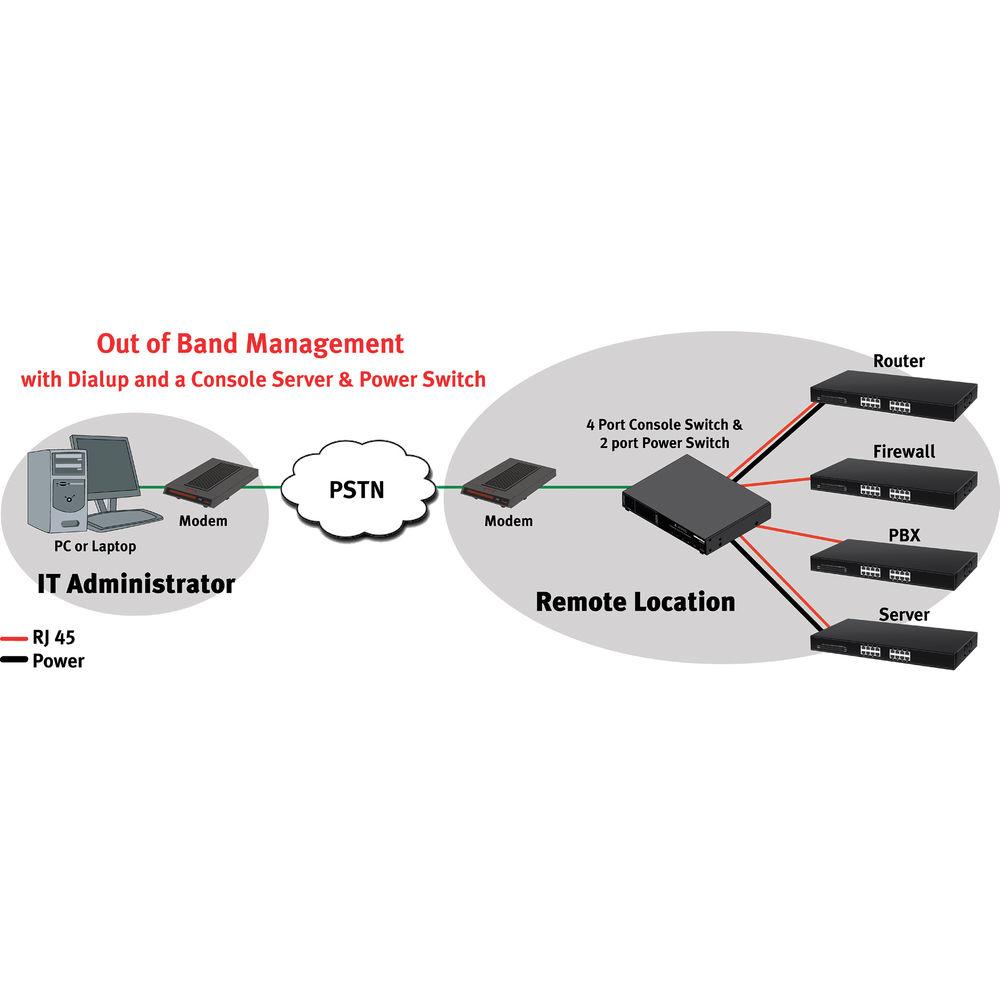

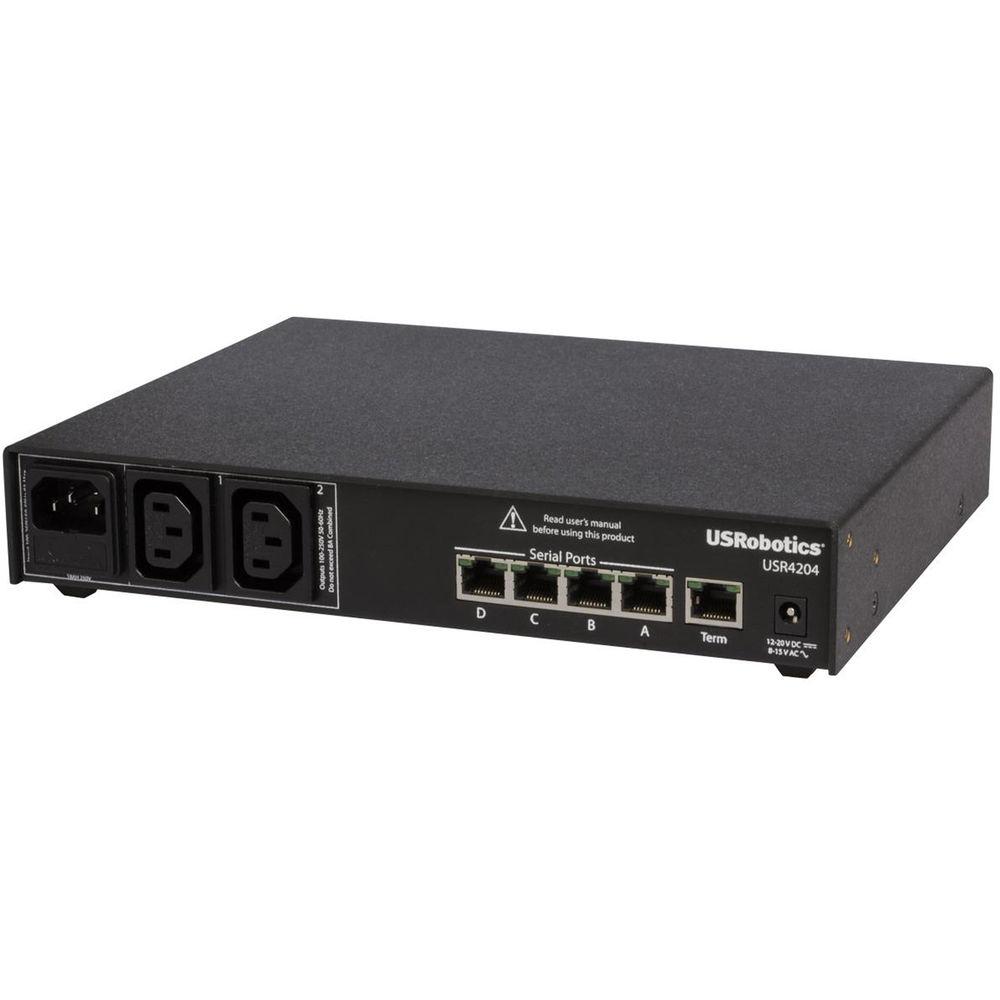

Product description Remotely access four serial devices or access those devices locally via a connected terminal with the Courier Console Port Server & Remote Power Hybrid Switch from US Robotics. This Console Port Server & Switch comes equipped with a single RS232 RJ-45 terminal port and four RJ-45 console ports designed to connect to devices such as routers, servers, and firewalls making them remotely accessible when the network goes down or Out-of-Band is the only available option. In addition to versatile connectivity options, this device supports a single administrator account and up to fifteen user accounts complete with username/password login access and notifications for unauthorized attempts to access the network. Accompanying the network ports are two C13 power outlets capable of power cycling servers, routers, and other connected appliances along with the ability to return connected devices to a previous power state following a power failure. Serial Console Management - Switch between 4 serial devices remotely with a modem or locally with a connected terminal
- Serial ports have 2 LEDs that indicate select, transmit, and receive
- RS232 Async, full duplex operation
- Supports software flow control in each direction
- 256 byte buffer, 2.5 kb when used with a Courier Business Modem
- Uses standard Ethernet cables to connect the console server to network appliances
Power Management - Remotely power cycle servers, routers or other appliances quickly and efficiently
- Power meter provides true RMS current measurement of each outlet
- High load rating supports high power rated appliances
- Power state memory - after power failure, the unit returns to previous state
Simple User Interfaces - Simple menu-driven, key port operations accessible from the main menu
- Customizable port names for easy selection of serial and power ports
Industrial Quality Design - Desktop or 19" 1U Rackmount options included
- Compact design ideal for branch offices with small IT closets or small off-site locations in need of remote management
- Designed and developed in the USA
Security - Username/password login security with an almost unlimited number of password combinations
- Tighter security with optional strong password constraint
- 1 Administrator and 15 user accounts with permission-based port access and optional administrator privileges
- Configurable security banner at login
- Configurable login banner
- Unauthorized access notifications and user lockout
- Two factor security when used with a Courier Business Modem's additional security login
- Additional dialback security with a Courier Business Modem - checks calls for password authorization and then dials back preset numbers to ensure appropriate users establish connections
Advanced Features - Remote flash capability lets you upgrade at remote locations from a central site
- Use a master configuration file to easily setup duplicate units for multiple deployments
- Line-feed pacing eliminates Cisco command processor overload when streaming CLI commands as a batch file
- RS-232 Break signal generation allows Cisco routers to enter ROM Monitor mode
- Same screen reboot controls for observing all critical boot messages during power cycle
- Supports up to 4 appliances directly, expandable with additional units

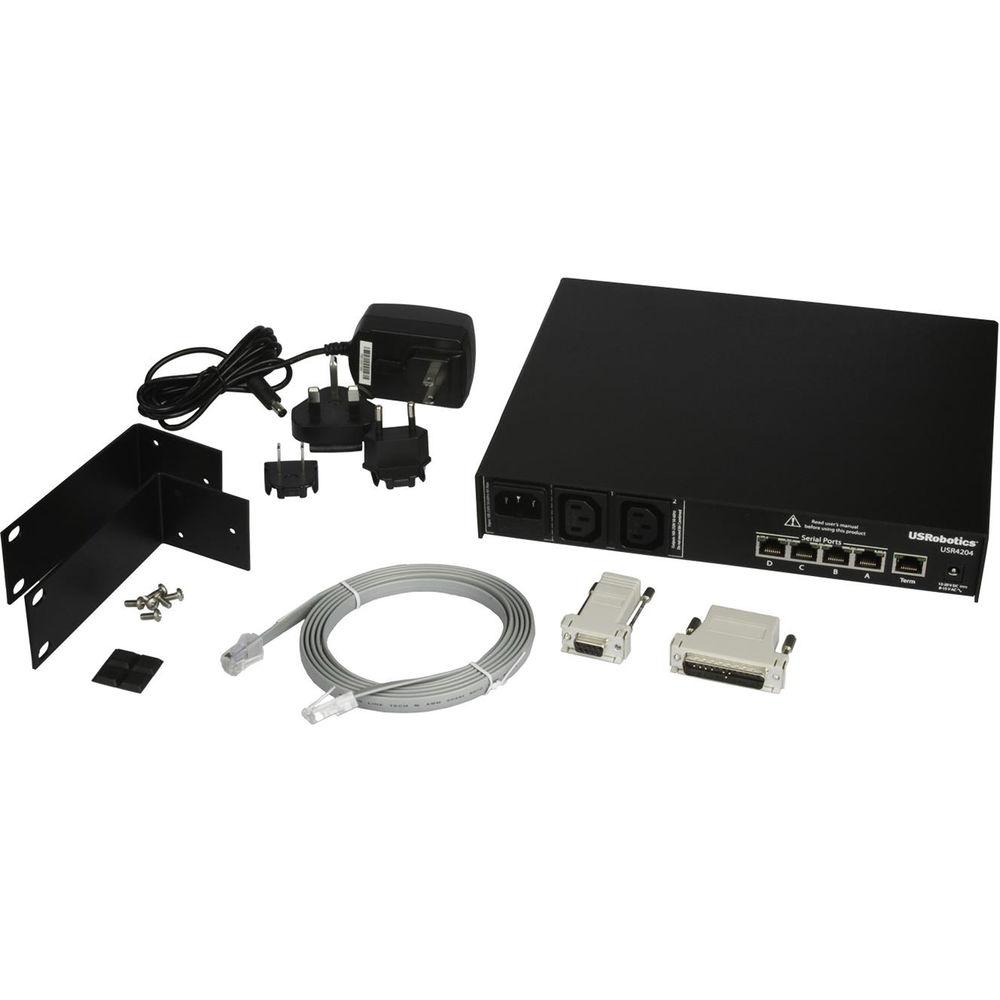

In the Box US Robotics Courier Console Port Server & Remote Power Hybrid Switch VersaPower Kit (Universal Power Adapter 100 - 240 V) with UK, European, China and US Plugs RJ-45 Rollover Cable RJ-45 to DB25 Adapter RJ-45 to DB9 Adapter 2 x Rackmount Brackets with Mounting Screws 4 x Rubber Feet Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the US Robotics Courier Console Port Server & Remote Power Hybrid Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUS Robotics USR4204 Specs | | | Ports | 4 x Ethernet (RJ45)
1 x Ethernet (RJ45) (Console) | | | | Power Draw | 1.5 W (Active) | | Current | 8 A | | AC Input Power | 100 to 250 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 20 to 80% | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Storage Humidity | 5 to 95% | | Certifications | RoHS, WEEE, as per Manufacturer | | | | Material of Construction | Steel | | Dimensions | 10 x 7.8 x 1.7" / 25.3 x 19.7 x 4.4 cm | | Weight | 3 lb / 2 kg |
