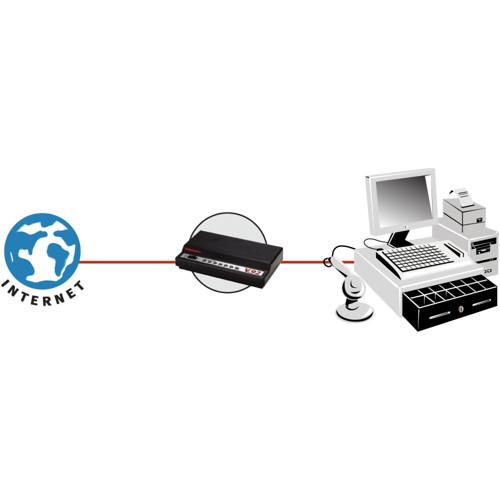

Product description With support for both V.92, V.22, and a variety of other networking protocols, the Serial Controller Dial-Up External Fax/Modem from US Robotics is designed for use with Point of Sale (PoS) systems and other devices suited to operate with a 56K modem. This external fax/modem comes equipped with an 8 position DIP switch, multiple LED status indicators, a DTE RS232/v.24-DB25 interface, and a RJ-11 phone line interface making for easy installation. Once installed users benefit from a variety of features including Modem on Hold (MoH) functionality making it possible to receive incoming calls while placing the modem on hold and fax functionality to allow for the sending and receiving of faxes through your computer. The Serial Controller Dial-Up External Fax/Modem is firmware upgradable to ensure you always have the latest updates to keep this modem operating smoothly. Advanced Features and Functionality - External DIP switches allows manual configuration of specific critical settings
- Extra LEDs for better monitoring of serial signals
- Precise manual volume control
- Permanently store preferred modem default settings
Enhanced Data Speeds - Fast Connect (V.22) allows 1200 bps connections without error control in less than 1 second, making this modem ideal for POS and ATM transactions that require lightning fast connections
- V.92 lets you send attachments up to 50% faster
Powerful Management Tools - Modem on Hold (MoH) lets you screen incoming calls so you can take the important ones
- Modem on Hold lets you take calls while online without dropping your Internet connection - there's no need for a second phone line
Fax Features and Functionality - Send and receive secure data and faxes through your computer while running other applications
- Fax features include delayed broadcast and group faxing
Upgradable - Firmware upgradability and downloadable software ensure that this modem will continue to meet your changing needs without the need to buy a new modem
Advanced Line Probing Technology - This modem finds the most efficient path for each connection, assuring the best possible speeds, resulting in faster downloads and fewer dropped calls
Lower Power Consumption - This updated modem uses 50% less energy when in use and 75% less energy when idle mode, which makes it more environmentally friendly and will contribute to reducing electricity costs

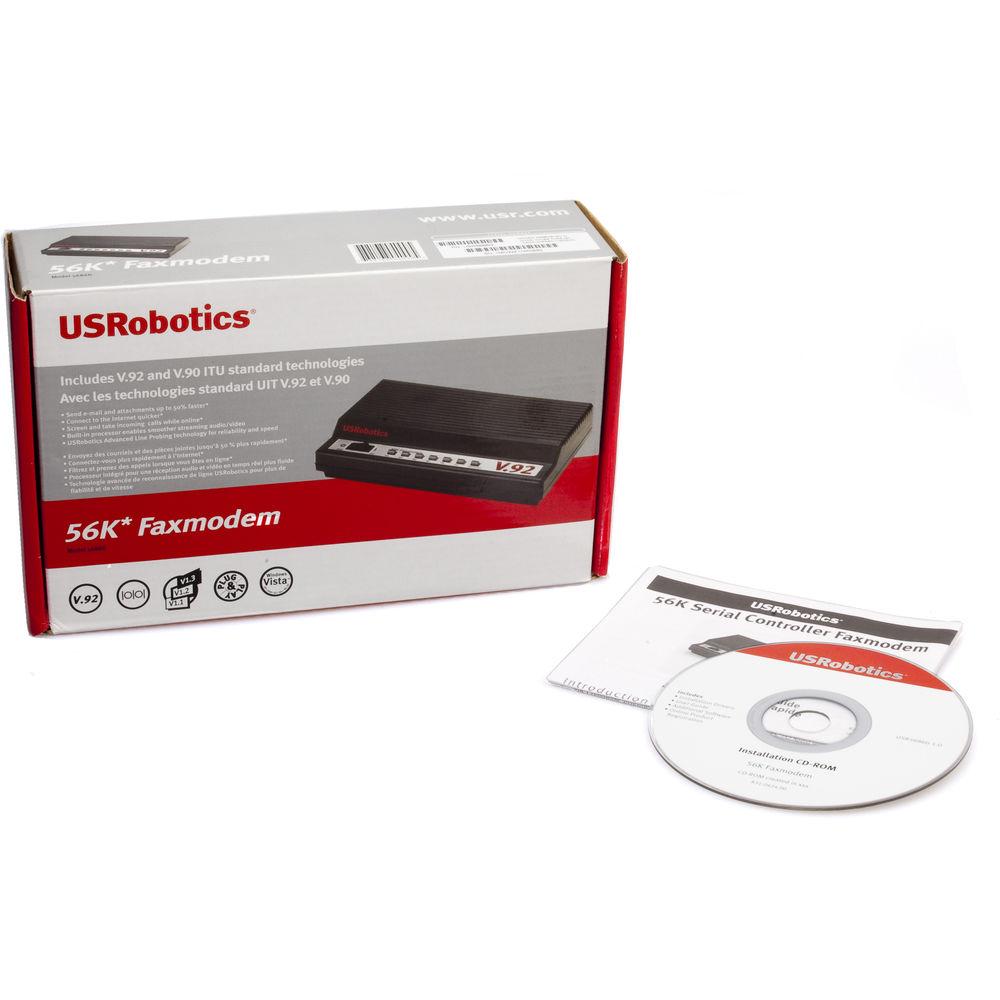

UPC: 738168040995 In the Box US Robotics Serial Controller Dial-Up External Fax/Modem AC Power Supply Unit RJ-11 Telephone Cable Limited 2-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the US Robotics Serial Controller Dial-Up External Fax Modem in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUS Robotics USR5686G Specs | Protocols & Specifications | V.92, V.90, V.34+, V.34, V.32bis, V.32, V.22bis, V.22, V.23, V.21, Bell 103, and Bell 212A
V.42/MNP 2-4 error correction, V.44 & V.42 bis/MNP 5 compression
V.80 video conferencing support
Fax: V.17, V.29, V.27ter, V.21; EIA 578 (Class 1) and EIA 592 (Class 2.0), Group III
Caller ID and distinctive ring (require service from your local phone company/Caller ID may not be supported in some countries)

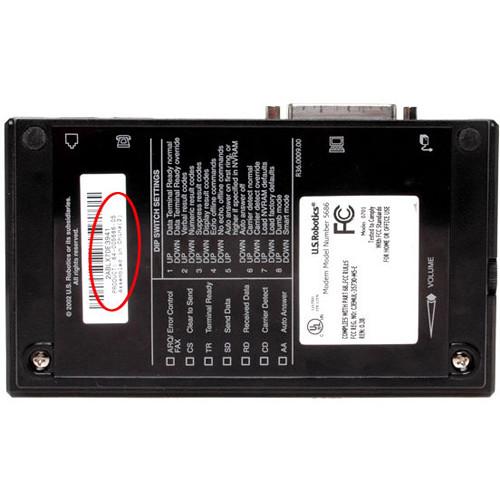

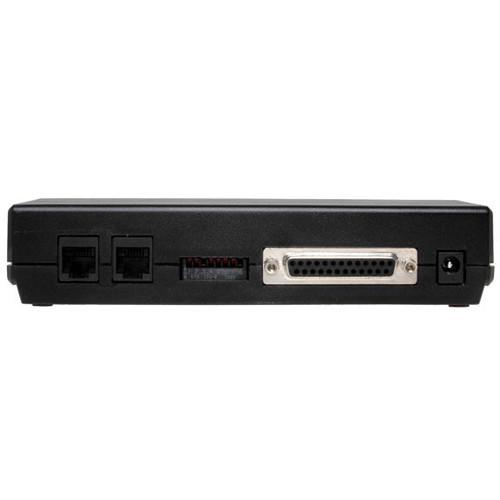

Hayes Compatible | | Physical Specifications | • 8 Position DIP Switch

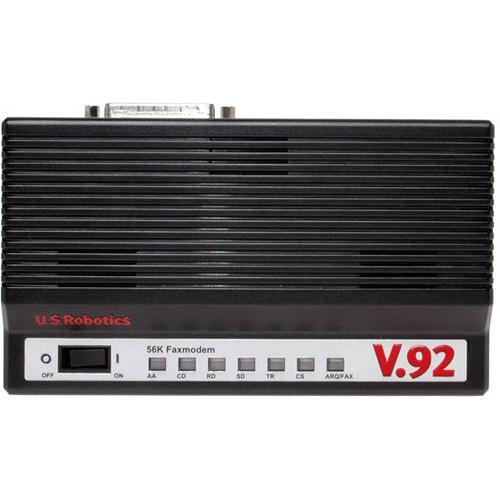

• 7 LEDs (AA, CD, RD, SD, TR, CS, ARQ/FAX)
• DTE Interface: RS232/V.24 - DB25 female connector
• Phone Line Interface: Dual RJ-11
• Power Supply: 9Vac 1A
• Power Switch
• Volume Control Knob | | Regulatory | • FCC approved (Part 15 Class B/Part 68)
• IC approved
• UL listed
• CUL listed
• CE approved (Class B) | | Temperature & Humidity | Operating Temperature
32 to 122°F / 0 to 50°C
Non-Operating Temperature
-4 to 158°F / -20 to 70°C
Operating Humidity
20 to 80% non-condensing
Non-Operating Humidity
5 to 95% non-condensing | | Power Consumption | • Typical: ≈3.6 W active, ≈1.6 W idle
(including provided power adapter)
• Typical: ≈2.5 W active, ≈1.1 W idle
(excluding power adapter) | | Operating Systems | Modem is compatible with Server 2012 R2, Win 10, Win 10 64 bit, Server 2012, Server 2011, Windows 8 64 bit, Win 8, Windows 7 64 bit, Win 7, Server 2008 64 bit, Server 2008, Vista 64 bit, Vista, Server 2003 64 bit, Server 2003, XP 64 bit, XP, NT 4.0, 2000, ME, 98, 95, 3.1, Linux and DOS
Unimodem TSP/TAPI compliant
Fax software requires Microsoft Windows 95 or later
Modem on Hold requires Windows 2000 or later | | Minimum System Requirements | • Available Serial Port
• Analog Phone Line
• RS-232 Serial Cable | | Dimensions | 6.50 x 3.75 x 1.30" / 16.51 x 9.53 x 3.30 cm | | Weight | 0.54 lb / 0.24 kg | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 9.2 x 6.0 x 3.0" |
