User Manual for US Robotics uShare Mini NAS Adapter Click to enlarge the picture
Contents of the user manual for the US Robotics uShare Mini NAS Adapter
- Product category: NAS Accessories US Robotics
- Brand: US Robotics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for US Robotics NAS Accessories
 |
User manual for the US Robotics uShare Mini NAS Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any US Robotics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official US Robotics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a US Robotics product will considerably shorten its lifespan!
|

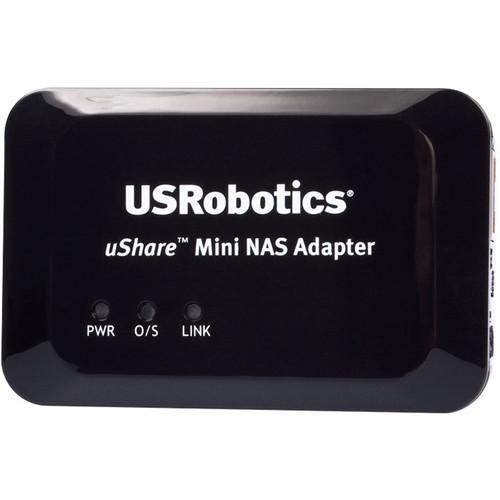

Product description File sharing is made easy with the uShare Mini NAS Adapter from US Robotics. Simply connect a USB storage drive to this NAS adapter and connect the adapter to your network and begin sharing stored files with users throughout the network. With built-in security it is simple to manage users and even create specific username/password logins to ensure unauthorized users do not access your NAS. You can also remotely access files stored within your NAS along with the ability to map a drive thanks to support for WebDAV. The uShare Mini NAS adapter features one USB 2.0 storage port, one USB 2.0 printer port, and a single RJ-45 Gigabit Ethernet port to connect the adapter to your local network. File Sharing - Easily share files with any computer on the local network
- Flexibility to change USB hard drives as needed, upgrade or increase shared storage size quickly
Built-In Security - Samba server allows server manager to create up to 16 user IDs and define the authority for each user
- User level security settings (Read Only & Read/Write)
- Administrative username/password login security for HTML-based configuration utility
- Password management provides secure access to shared folders and web management
Access Files from Anywhere - Easy remote access to the shared files on the attached hard drive with just an Internet connection when outside local network
- WebDAV makes it easy to map a drive to the shared folders for convenient, fast access
- No need to carry backups or extra drives while traveling
Share Your Printer - Integrated print server turns a supported USB printer into a network printer which can be shared among all network users
Share and Stream Media - Supports Xbox 360/PlayStation3 media sharing and iTunes music streaming
- Use as a media center to play movies, music, or view pictures
Bit Torrent Engine - Works as a Bit Torrent download center without turning on your PC
Compatibility - Designed for users on different systems to easily share files across Windows, Mac and Linux environments
- Compatible with Windows XP SP3/Vista/7 and Mac 10.5.4 or higher
Advanced Features - Included SyncQuick Backup software allows you to backup files quickly and easily
- SyncQuick NAS Manager automatically finds attached storage devices for easy configuration
- Supports USB mass storage devices up to 2TB, including flash and portable drives
- Supports Auto IP (DHCP server or DHCP Client)/Fixed IP
- Supports Ethernet connections at speeds of 10/100 Mbps and 1 Gigabit (1000 Mbps)
UPC: 738168041206 In the Box US Robotics uShare Mini NAS Adapter Ethernet Cable Power Supply Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the US Robotics uShare Mini NAS Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUS Robotics USR8710 Specs | Standards and Compliance | Compliant with Universal Serial Bus 2.0/1.1 Specifications
IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3ab (Gigabit Ethernet over copper)
Server Types: Samba, WebDAV, DHCP, Printer, UPnP Media Server (DLNA compliant), Bit Torrent (client) | | Storage | Support for USB Storage and Flash drives from 4 GB up to 2 TB
SyncQuick NAS Manager
SyncQuick Backup utility
Average Data Transfer Rate 15-20 MB/s | | Security | Support for 16 User level accounts

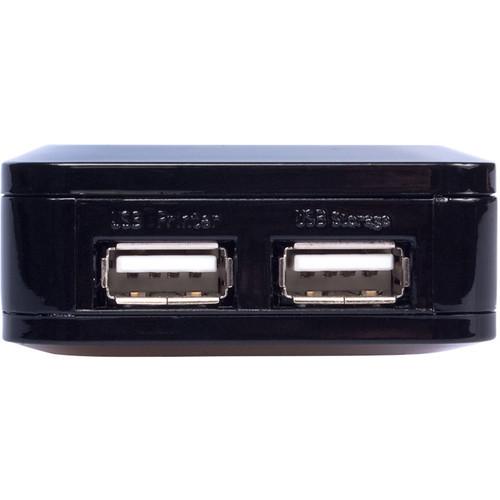

HTML-based configuration utility with username/password login security | | Physical Specifications | 1 x USB 2.0 storage port
1 x USB 2.0 printer port

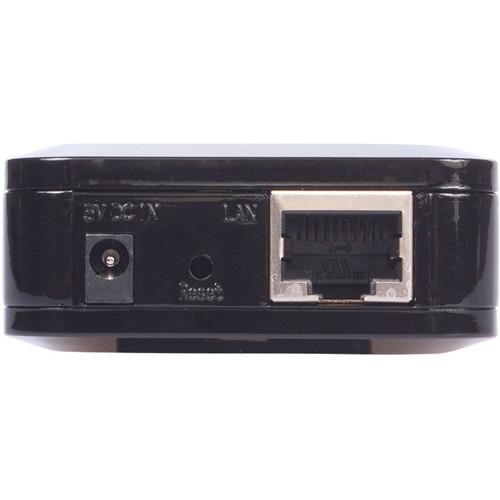

1 x RJ-45, 10/100/1000 Ethernet port
Power Connector: 5 VDC in
3 x LEDs: Power, Device Operating System, Ethernet Link | | Temperature & Humidity | Operating Temperature: 32 to 95°F / 0 to 35°C
Non-Operating Temperature: 32 to 122°F / 0 to 50°C
Operating Humidity: 20 to 80% non-condensing
Non-Operating Humidity: 5 to 95% non-condensing | | Regulatory Approvals | FCC approved (Part 15 Class B)
CE approved (Class B) | | Minimum System Requirements | TCP/IP network
4 GB Hard drive FAT32/ NTFS/ FAT64 file system | | Operating Systems Supported | Windows 7 64-bit, Win 7, Vista 64-bit, Vista, XP 64-bit SP3, and XP SP3
Mac OS X 10.5.4 or higher
Linux
Unix (Samba) | | Dimensions | 3.25 x 2.15 x 0.95" / 8.25 x 5.46 x 2.41 cm | | Weight | 0.18 lb / 81.65 g | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 9.0 x 6.0 x 3.0" |
