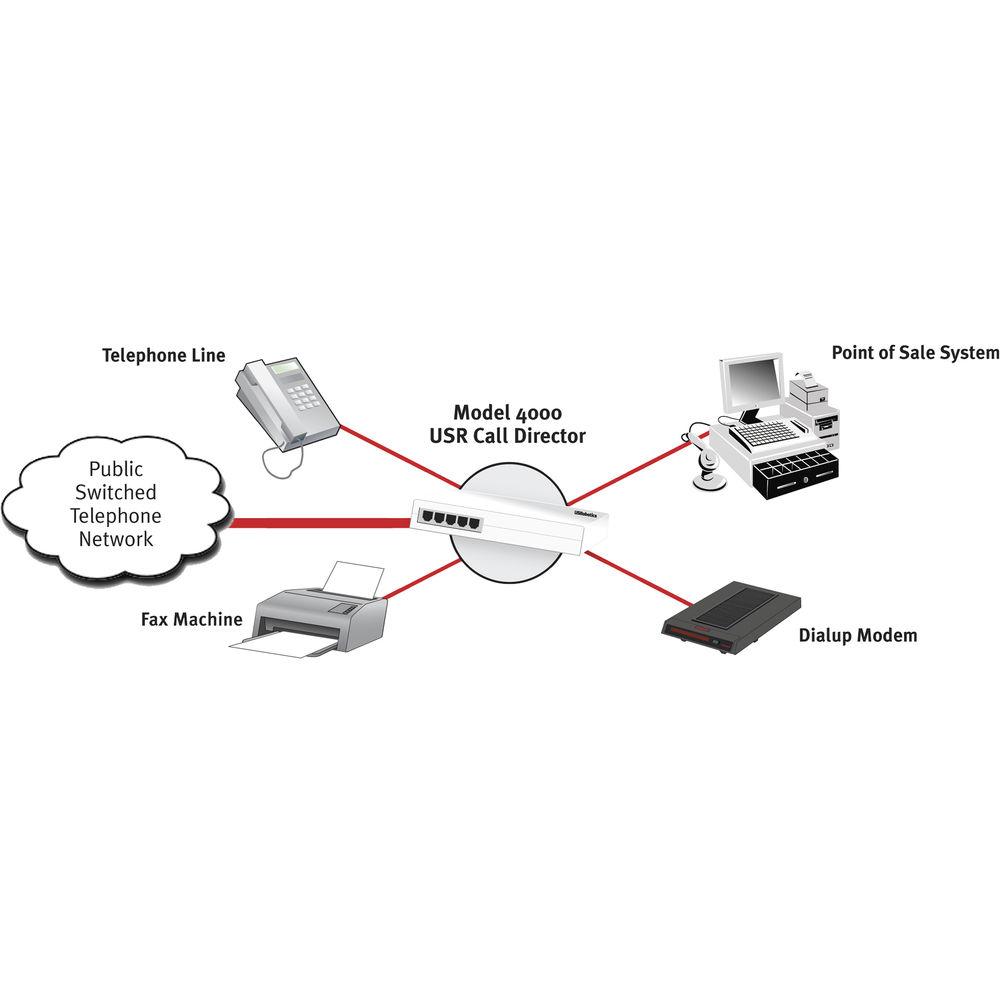

Product description Route incoming voice, fax, and modem calls to the right equipment with the USR Call Director Phone/Fax/Modem Switch from US Robotics. Designed for use with a variety of devices including modems, out-of-band network management, POS, time and attendance, credit card terminals, and more, the call director ensures that voice, fax, and modem calls are directed to the proper destination.
This device requires no configuration and can automatically detect the type of call and the proper destination for that call. Once installed, the Call Director effectively eliminates the need for additional equipment to route calls, and it can transfer calls manually to ensure they are directed to the correct destination. Programming is simple and can be accomplished using a telephone keypad. The network is secured using access codes while remote programming and diagnostics capabilities allow admins to manage the network remotely. Automatic Detection - Pre-programmed to automatically route fax calls to fax or fax modem
- Barge-In protection means active calls won't get interrupted by another connected device
Add New Equipment - Add new equipment without adding phones lines
- Eliminate unnecessary phone lines
Manual Control - Transfer a call to any device port by touch tones
Ringback Tones - Bell Spec tones sounds just like the phone company's
Non-Volatile Memory - Programming is preserved after a power outage
Programmable - Program all features via telephone keypad; no PC interface or drivers to install
- Program security access codes means better security and control
- Remote programming and diagnostics
Supported Devices - Modems, Out-of-Band Network Management, POS, Energy Management/HVAC, Time & Attendance, Fax Machines, Credit Card Terminals, Postage Meters, and Digital Signage and more

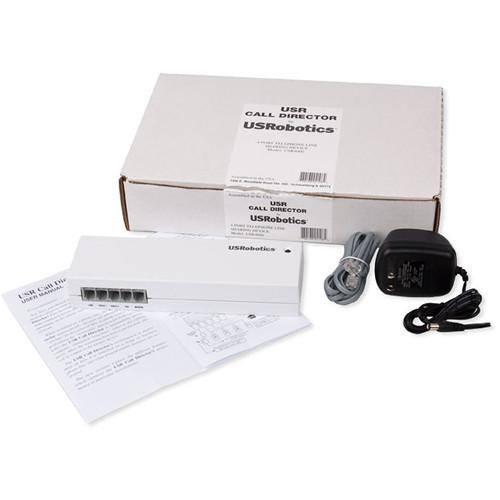

UPC: 738168041084 In the Box US Robotics USR Call Director Phone/Fax/Modem Switch Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the US Robotics USR Call Director Phone Fax Modem Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUS Robotics USR4000 Specs | Input Power Requirements | At AC Transformer: 110-125 Volts AC only, 50-60 Hz
At power jack on Call Director: 12/14 VAC, 14/16 VDC | | Power Consumption | Active: 6.2 Watts
Standby:
Approximately 50 mA @120 VAC
Approximately 44 mA @12 VDC | | Interface | Call Operator Interface
Ringer Equivalence Number: 0.5 B
Input Ring Detection: 40-150 Volts AC, 15-68 Hz
Device Interface
Battery: 48 Volts Nominal DC to all devices
Off-Hook Detection: 3-80 mA
Ring Generator Frequency: 30 Hz (+/-0.1) Hz Voltage Regulated and current limited | | Waveform | True Sinusoidal
Ringing No Load: Approximately 82.8 Volts RMS AC
Ringing 8K Ohm Imp. (REN1.0): Approx. 81.6 Volts RMS AC
Ringing 4K Ohm Imp. (REN2.0): Approx. 73.0 Volts RMS AC
Ringing 2.7K Ohm Imp. (REN3.0): Approx. 64.5 Volts RMS AC
Ringing 2K Ohm Imp. (REN4.0): Approx. 55.0 Volts RMS AC

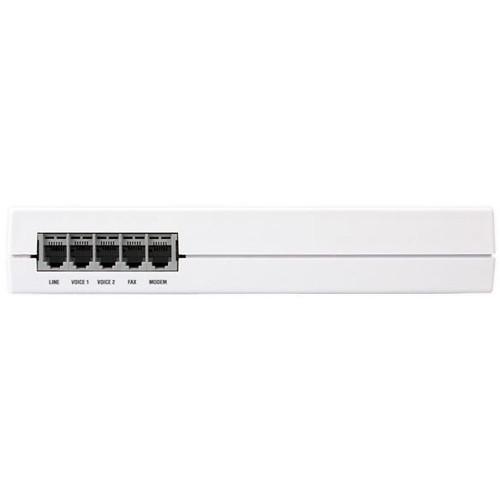

Ringing 1.8K Ohm Imp. (REN5.0): Approx. 49.5 Volts RMS AC | | Physical Specifications | 5 RJ-11 Ports (Line In, Voice 1, Voice 2, Fax, Modem)

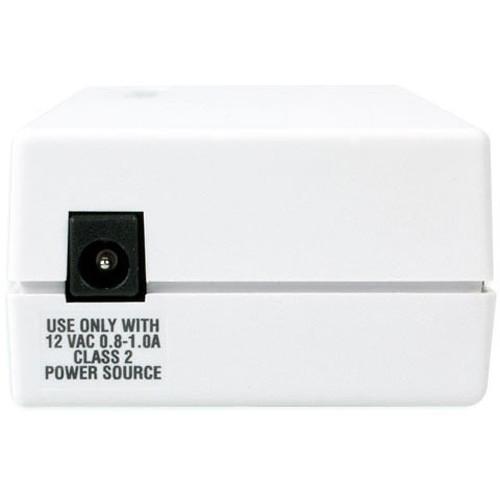

Power Supply: 12 VAC / 1 A
Power LED | | Temperature & Humidity | Operating Temperature: 0 to 40°C
Non-Operating Temperature: -10 to 70°C
Operating Humidity: 10 to 90% non-condensing
Non-Operating Humidity: 5 to 90% non-condensing | | Regulatory | FCC approved (Part 15 Class B / Part 68) | | Dimensions | 8.20 x 2.50 x 1.45" / 20.83 x 6.35 x 3.68 cm | | Weight | 1.0 lb / 0.45 kg | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 11.9 x 3.6 x 2.5" |
