Useful Arts Audio SFP-60 Microphone Preamplifier

Search your instruction manual in PDF to download

User Manual for Useful Arts Audio SFP-60 Microphone Preamplifier

Click to enlarge the picture
Useful Arts Audio SFP-60 Microphone Preamplifier Contents of the user manual for the Useful Arts Audio SFP-60 Microphone Preamplifier
  • Product category: Microphone Preamps Useful Arts Audio
  • Brand: Useful Arts Audio
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Useful Arts Audio Microphone Preamps

Useful Arts Audio SFP-60 Microphone Preamplifier Useful Arts Audio SFP-60 Microphone Preamplifier Useful Arts Audio SFP-60 Microphone Preamplifier
User manual for the Useful Arts Audio SFP-60 Microphone Preamplifier contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Useful Arts Audio product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Useful Arts Audio user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Useful Arts Audio product will considerably shorten its lifespan!



Product description

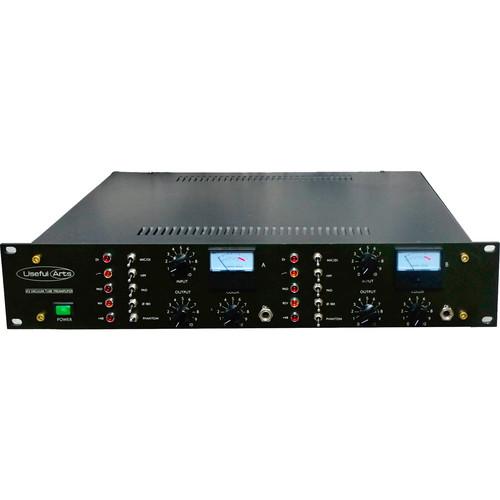

Let your mic signals pop in the mix with less post-processing using the SFP-60 Microphone Preamplifier from Useful Arts Audio. Featuring a streamlined signal path, this two-channel, full-featured all-tube mic preamp offers a sound that is more clear, present, and edgy rather than dark and creamy. It's specifically designed to make vocals sound forward and intimate. The SFP-60 accomplishes this by using tubes to accentuate harmonics that make sound more clear and pleasing to the ear. An EF-806 pentode input tube adds third-order harmonic content for clarity and bite, while the final two gain stages are high-current ECC82 triodes, which contribute more second-order harmonic components for added richness or "thickness" without darkening the sound.

Unlike most preamps, which are designed to maintain a predetermined ratio of distortion to gain, the SFP-60 puts the artistic choice of distortion in your hands. At a setting of 0, the preamp is very clean—it sounds "polite." A setting of 10 adds about 10 dB of gain and increases the distortion artifacts by nearly ten times. The result is an aggressive, full sound that stands out in a mix and grabs the listener's attention. This creative range gives the SFP-60 the ability to suit a variety of tracks and sources. The preamp's impulse response is tailored to avoid distortion in the time domain so as to preserve the full dynamic detail of your signal.
  • THE SFP-60 reproduces transients with a minimal settling time, greatly increasing the perceived clarity of the sound.
  • The output tube is loaded with a massive inductor rather than with a resistor—the same technique used in the design of classics like the Telefunken V76.
  • The SFP-60 features separate internal-regulated DC power supplies for tube filaments, phantom power, and high voltage.
  • The high-voltage, soft-start power supply puts out over 270V of clean, regulated power to ensure maximum headroom and the lowest noise possible.
  • Each gain stage is single-ended, inherently class A.
  • The audio magnetics (input and output transformers, plate inductor) are custom-wound by CineMag.
  • The output transformer is built with 50% nickel core.
  • The frequency response is flat within 2 dB from 20 Hz to 20 kHz.

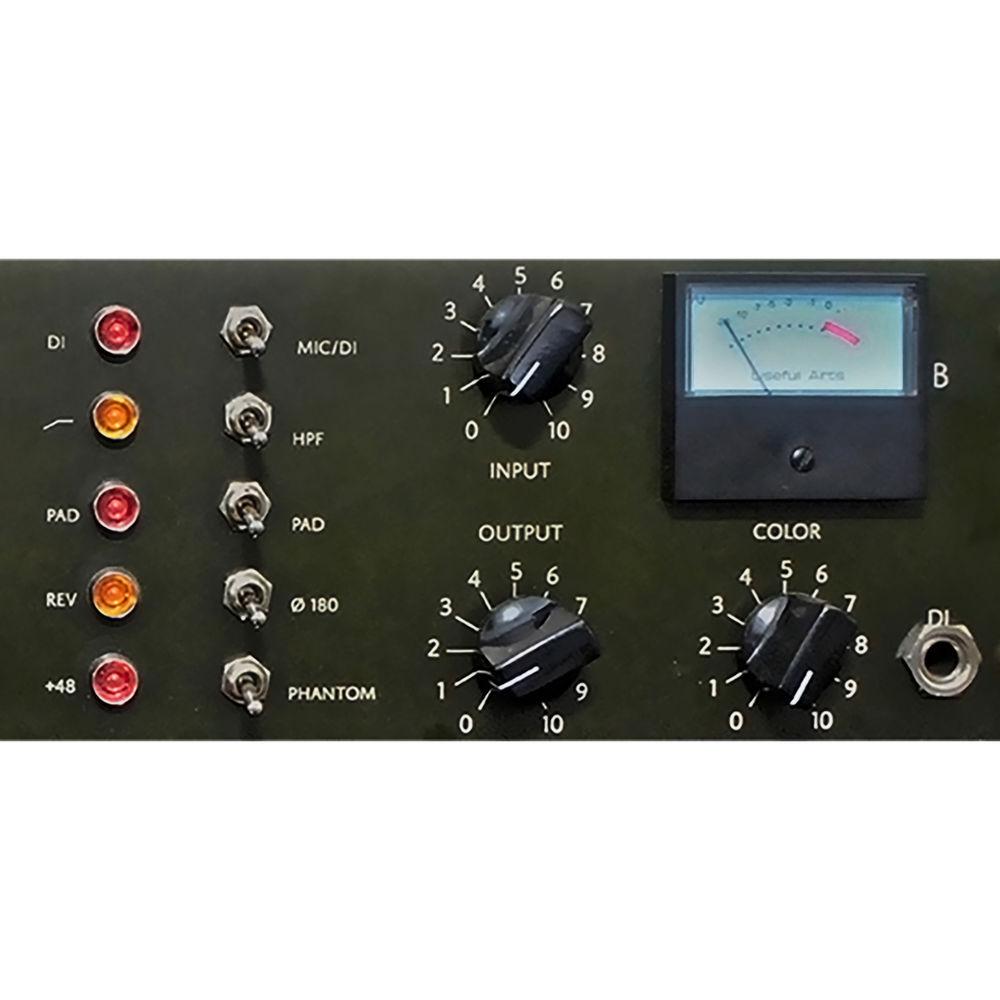

  • Each channel of the SFP-60 features five switches:
    • Input selector (rear XLR / front instrument input)
    • High-pass filter
    • Input pad
    • Phase reverse
    • Phantom power

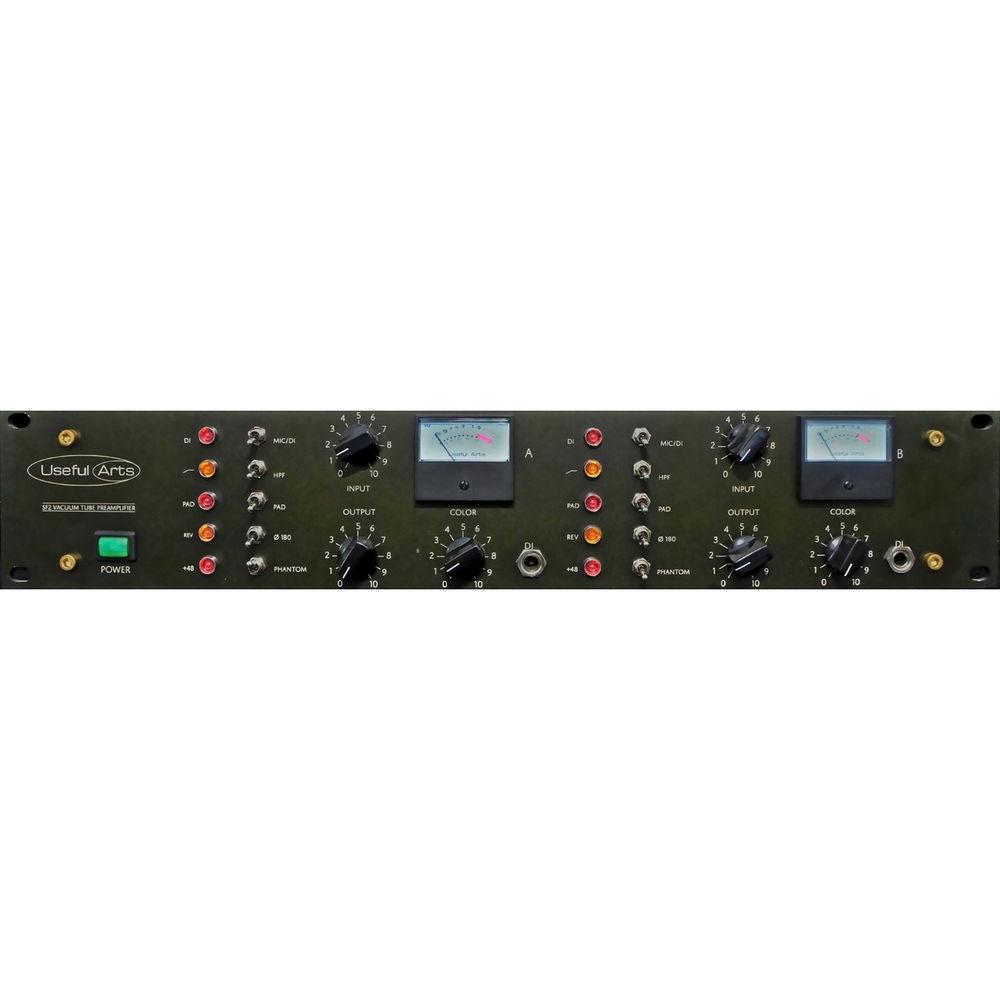

  • The front panel switches control sealed, gold-plated relays to ensure years of operation without pops and clicks.
  • The only active devices in the signal path are the three tube gain stages, consisting of one EF806 and one ECC82 per channel. JJ tubes are used for long life and easy replacement.
  • The input and output levels of the triode stages are separately controllable by detented attenuators. Using the color control, the SFP-60 provides just over 55 dB of usable gain.

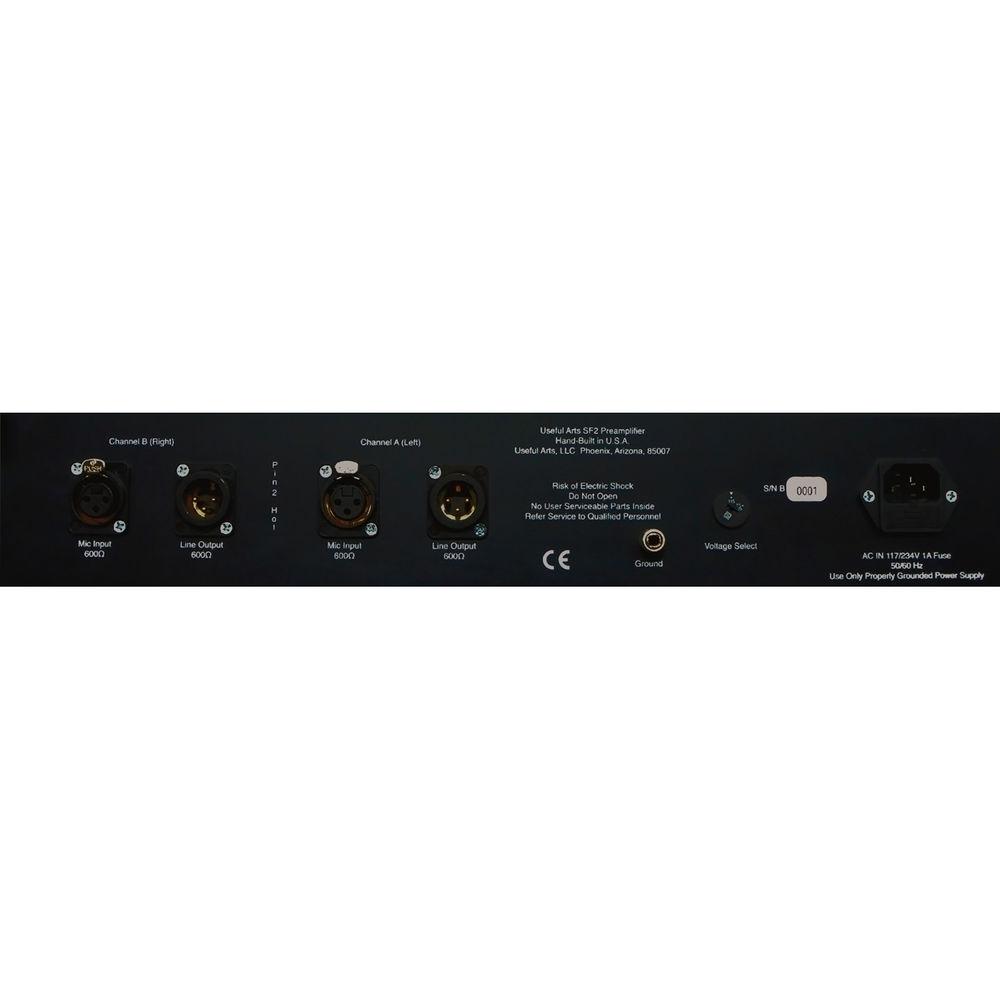

  • The rear panel provides gold-plated XLR connectors for the transformer-balanced inputs and outputs, a ground post, and a voltage selector for 115/230V operation
  • Each channel features an output-level VU meter, which is op-amp buffered to ensure that the signal is not loaded by the meter.
  • The audio power supply features a toroidal dual-primary transformer and linear regulation for lowest noise.
  • Construction is fully modular, with gold-plated connectors used throughout the audio path.
  • The faceplate is milled from 0.190"-thick aircraft-grade aluminum for maximum rigidity, and anodized in a very dark green finish.
  • All markings on the front panel are laser-engraved.
In the Box Useful Arts Audio SFP-60 Microphone Preamplifier
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Useful Arts Audio SFP-60 Microphone Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Useful Arts Audio SFP 60 Specs

    Number of Channels 2
    Frequency Response 20 Hz to 20 kHz (+/- 2 dB)
    Inputs and Outputs 2 x Transformer-balanced XLR mic inputs, 600 Ohms
    2 x Transformer-balanced XLR line outputs, 600 Ohms
    2 x Front-panel DI inputs
    Gain 55 dB at max color setting
    S / N Ratio 60 dB
    THD Variable from 0.09-0.4% (all 2nd harmonic)
    Output Stage Choke-loaded
    Tube Compliment 2 x ECC82, 2 x EF806 (pure tube audio path)
    Power 100-240 VAC at 50/60 Hz (changeable at rear fuse block)
    Rack Height 2 RU
    Dimensions 17 x 15" / 43.2 x 38.1 cm, behind faceplate
    Weight 12 lb / 5.4 kg
