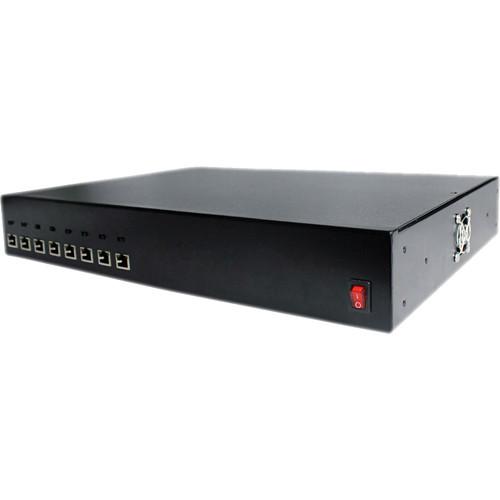

User Manual for UTP Balun VBDP24AC-8-120 8-Channel Video, Audio, Power, Data Transceiver Hub Click to enlarge the picture
Contents of the user manual for the UTP Balun VBDP24AC-8-120 8-Channel Video, Audio,
- Product category: Signal Extenders UTP Balun
- Brand: UTP Balun
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for UTP Balun Signal Extenders
|
User manual for the UTP Balun VBDP24AC-8-120 8-Channel Video, Audio, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any UTP Balun product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official UTP Balun user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a UTP Balun product will considerably shorten its lifespan!
|
Product description The black VBDP24AC-8-120 8-Channel Video, Audio, Power, Data Transceiver Hub from UTP Balun allows the transmission of CCTV video, audio, AC power, and data over a single network cable at the same time. This device uses a single CAT5, 5e, or 6 UTP cable as a transmission medium and works together with the VBDP-C Camera Side Transceiver Device (sold separately). This transceiver hub is capable of transmitting 8 channels of PAL, NTSC, SECAM color or monochrome video signals, mono monitor audio, RS-485, or RS-232 signals up to the distance of 1,000’ (300m) and provides 12 or 24VAC power to each camera. - Uses 300W AC power and each channel is independently chosen with 24 and 28VAC output power
- Transmit 8 channels video, audio, 24 and 28VAC power, and data over a UTP cable
- Anti-interference, surge protection, anti-static protection, transient shock protection
- Hard anti-rust iron shell
In the Box UTP Balun VBDP24AC-8-120 8-Channel Video, Audio, Power, Data Transceiver Hub (Black) 2 x Rack Mount Ear 4 x Rubber Feet 7 x Mounting Screw Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the UTP Balun VBDP24AC-8-120 8-Channel Video, Audio, Power, Data Transceiver Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUTP Balun VBDP24AC-8-120 Specs | | | Number of Channels | 8 | | Distance | Up to 300' (100 m) at 24 VAC output
Up to 1,000' (300 m) at 12 VDC output | | | | Power Input | 120 VAC | | Maximum Power Consumption | 300 W | | Output Power | Type: 24 / 28 VAC | | Consumption | Maximum Transmission: 28 VAC / 1 A | | | | Connector | Transmission and Property:
Female BNC port (dual output) | | Compatible | System: PAL, NTSC, SECAM | | Signal transmission | Width: 6 MHz | | Anti-Interference | >60 dB | | Video | Balun Port: RF45 | | | | Connection | Transmission and Property:
Female BNC port | | Bandwidth | 20 Hz to 20 kHz | | Isolation | Compression: >500 V | | | | Port | Signal Transmission and Property:
DB9 / Screw Fix Port | | Signal Type | RS-232 / RS-485 | | Transmission Rate | <500 kb> | | | | Connector | Electromagnetic Compatibility:
Protection: 2 KV Per: IEC61000-4-5 | | ESD | 1a contact discharge level 3
1b Air Discharge level 3
per IEC61000-4-2 | | | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Humidity | 0 to 95% (non-condensation) | | MTBF | >20,000 hours | | | | Shell | Iron | | Dimensions (LxWxH) | 16.93 x 11.81 x 2.63" (430.00 x 300.00 x 66.80 mm) | | Weight | 13.45 lb (6.10 kg) |
