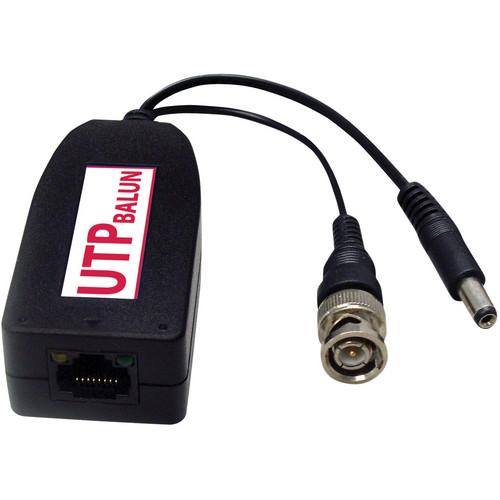

Product description The VBP2412DC Passive Video Balun from UTP Balun is used to transmit baseband video signals from a camera and deliver 12VDC of power to the camera over a single UTP cable. This balun accepts video and power signals transmitted via a UTP cable from the VBP36DC-04HA, VBP36DC-08HA, or VBP36DC-16HA Passive Video Balun Power Hubs (sold separately). - Uses UTP cable to transmit video signal and deliver power to camera at the same time
- Passive video balun with step-down power stabilizer to 12VDC
- No additional cabling needed for power
- Transmission distance up to 1,000' (300m)
- Supports all baseband signal formats including PAL, NTSC, and SECAM
- Power input range from 12 to 48VDC
- Maximum output power of 12VDC with 1096mA ; range of 1,000' (300m)
- Over current protection indicator LED
- RJ45 jack for easy connection
- RJ45 jack 568A & 568B miswiring prevention design protects the device from damage
- Built-in static electricity and lightning surge protection
UPC: 577020832268 In the Box UTP Balun VBP2412DC Passive Video Balun Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the UTP Balun VBP2412DC Passive Video Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUTP Balun VBP2412DC Specs | Input Voltage | 12 to 48 VDC | | Output Voltage | 12 VDC + 5% | | Output Current | 12 VDC, 500 mA @ 0 to 600' (0 to 200 m)
12 VDC, 300 mA @ 600 to 1,000' (200 to 300 m) | | Range | 0 to 1,000' (0 to 300 m) | | Power Consumption | 6 W maximum | | Video Signals | Supporting: All baseband signals including PAL, NTSC, and SECAM | | Band | Balance: 0 to 6 MHz, select (-3 db) | | Maximum Transmission Distance | Color 1,000' (300 m) | | Cable | Transmitting: UTP CAT5e | | Interference Rejection | >60 dB | | Transmission Channels | 1 | | Power Supply | Connector: 5.5 DC - M Jack | | Connector | Video: 1 x Male BNC with cable, Resistance 75 Ω
UTP Video and Power Transmission: 1 x RJ45 Jack with Indicator light
Power: 12 VDC jack | | Surge Protection | Lightning Protection: 2 kV 10/700 μs, Standard: IEC61000-4-5
Static Electricity: 1a contact discharge level 3, 1b air discharge level 3, Standard: IEC61000-4-2 | | Indicators | Power LED: Green
Over Current Protection LED: Yellow | | Stability | MTBF: >10,000 hours | | Operating Temperature | 32 to 131°F (0 to 50°C) | | Storage Temperature | -4 to 176°F (-20 to 80°C) | | Relative Humidity | 0 to 95% (non-condensation) | | Dimensions (L x W x H) | 8.86 x 1.41 x 0.86" (225.00 x 36.00 x 22.00 mm)
Power & BNC Lead: 4.5" (11.4 cm) standard lead | | Weight | 1.8 oz (50.0 g) | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 5.0 x 3.4 x 1.0" |
