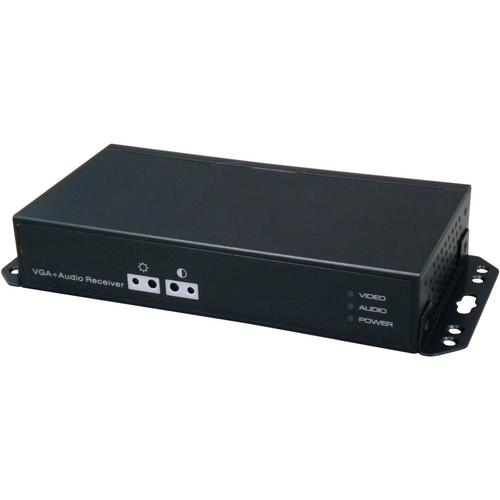

Product description The black VGAE1R Long Range VGA and Audio Receiver from UTP Balun is used as a remote device for transmitting audio and VGA video signals over a UTP (Unshielded Twisted Pair) cable. It has 1 channel for VGA and audio, and provides 2 pairs of VGA and audio outputs. The unit is compatible with the VGAE1T and VGAE4T Transmitters (sold separately), and has a transmission distance of up to 1,000’ (300m). Its brightness and contrast adjustment feature delivers good quality video at a standard resolution of 1024 x 768. It can also transmit at a resolution of 1600 x 1200 at 60 Hz up to 500’ (150m). - Transmission distance up to 1,000' (300m)
- Transmits audio and VGA video signals via UTP cable (CAT5 and 5e)
- Built-in brightness and contrast adjusters
- Provides 2 sets of VGA video and audio outputs
- High video resolution with a standard resolution of 1024 x 768 and maximum resolution of 1600 x 1200 at 60 Hz
- Offers interference rejection
- Built-in transient protection
- Supports PC, Mac, Sun, and Linux systems
- Supports VGA, SVGA, XGA, SXGA, and multi-sync monitors
UPC: 577020032170 In the Box UTP Balun VGAE1R Long Range VGA & Audio Receiver (Black) 2 x Mounting Bracket 4 x Mounting Screw 4 x Rubber Feet Mini Phillips Screwdriver 12VDC Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the UTP Balun VGAE1R Long Range VGA & Audio Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUTP Balun VGAE1R Specs | | | Voltage | 12 VDC, 1 A | | Inputs | 90 to 250 VAC | | Power Consumption | 5 W | | Connectors | DC jack | | | | Output Connectors | 2 x 15-pin HDB female (black)
Resistance: 75 Ω | | Input Connectors | Signal Input: RJ45 | | Transmission | Signal Transmission Band: < 350 MHz (-3 dB) | | Linear Distortion | < 3% | | Synchronization | Synchronous Signal: 0 to 5 V, TTL PWL
Synchronous Signal Band: 1 to 200 KHz | | MTBF | > 20,000h | | | | Video Output | 2 kV (common mode), 10/700 μs
Standard: IEC61000-4-2 | | Video Input | 2 kV (different mode), 2 kV (common mode)
Standard: IEC61000-4-2
For Over Current: 100 mA | | | | Connectors | 2 x 3.5 mm audio jack | | Resistance | Output Resistance: 600 Ω | | Band | 10 to 20 KHz | | | | Indicator Lights | Video: Green
Audio: Yellow
Power LED: Red | | | | Compatible Operating Systems | Windows 2000, Windows XP, Linux, Mac, Sun | | | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | 14 to 176°F (-10 to 80°C) | | Relative Humidity | 10 to 85% | | | | Housing Material | Metal | | Dimensions (L x W x H) | 6.30 x 3.35 x 1.26" (160.00 x 85.00 x 32.00 mm) | | Weight | 15.3 oz (435.0 g) | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 4.5 x 2.75 x 2.63" |
