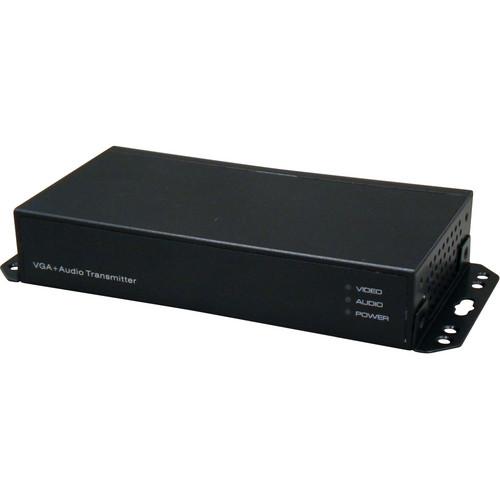

Product description The black VGAE1T 1 x 2 Long Range VGA & Audio Transmitter from UTP Balun is an active VGA video and audio transmitter that allows 2 channels of VGA video and audio signals to be transmitted via UTP cable. It provides 2 channels of video and audio via RJ45 outputs and one set of local VGA video and audio outputs. When paired with the VGAE1R Receiver (sold separately), the VGAE1T Transmitter can transmit VGA video and audio to a maximum distance of 1000’ at a standard resolution of 1024 x 768. It can also send out video at a higher resolution of 1600 x 1200 @ 60 Hz up to 500’. - 1000' (300m) transmission range when used with the VGAE1R Receiver
- VGA video and audio signal transmission via UTP cable (CAT5 / CAT5e)
- 350 MHz signal transmission bandwidth
- Provides four RJ45 outputs for transmission and one pair of local VGA video and audio outputs
- Video resolution depends on the length and quality of UTP cable; standard resolution is at 1024 x 768, but can go up to 1600 x 1200 @ 60 Hz
- Built-in transient protection
- Supports PC, Mac, Sun, and Linux systems
- 12 VDC or USB Power (12 VDC power supply included)
UPC: 721405351411 In the Box UTP Balun VGAE1T 1 x 2 Long Range VGA & Audio Transmitter (Black) USB-A to USB-B Cable Male to Male VGA Cable 2 x Mounting Brackets 4 x Mounting Screws 4 x Rubber Feet Audio Cable 12VDC Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the UTP Balun VGAE1T 1 x 2 Long Range VGA & Audio Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUTP Balun VGAE1T Specs | Voltage | 12 VDC | | Power Consumption | 1 W | | Connectors | DC Jack or USB-B
Video Input Connectors: 15-pin HDB male (black); resistance: 75 Ω
Video Output Connectors: 15-pin HDB female (black); resistance: 75 Ω
Signal Transmission Output Connector: 2 x RJ45; resistance: 50 Ω | | Protection | USB Protecting Current: 500 mA | | Transmission | Signal Transmission Band: <350 MHz (-3 dB) | | Linear Distortion | < 3% | | Synchronization | Signal: 0 to 5 V; TTL PWL
Band: 1 to 200 KHz | | Support | DDC2 | | Surge Protections | Video Output Protection: 2 kV (common mode); 10/700 μs; Standard: IEC61000-4-2
Video Input Protection: 2 kV (different mode); 2 kV (common mode); Standard: IEC61000-4-2
Video Input Protection for Over Current: 100 mA | | Audio | Connectors: 3.5 mm audio jack
Input Resistance: 10 KΩ
Output Resistance: 600 Ω
Band: 10 to 20 KHz | | Indicators | Video: Green
Audio: Yellow
Power LED: Red | | Stability | MTBF: > 20,000 hours | | Compatibility | Windows 2000, Windows XP, Linux, Mac, and Sun | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Relative Humidity | 10 to 85% | | Storage Temperature | 14 to 176°F (-10 to 80°C) | | Dimensions (L x W x H) | 6.30 x 3.35 x 1.26" (160.00 x 85.00 x 32.00 mm) | | Weight | 15.5 oz (440.0 g) | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 4.5 x 2.75 x 2.63" |
