User Manual for UTP Balun VPAB100LP Passive Audio Balun Click to enlarge the picture
Contents of the user manual for the UTP Balun VPAB100LP Passive Audio Balun
- Product category: Video Extenders & Repeaters UTP Balun
- Brand: UTP Balun
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for UTP Balun Video Extenders & Repeaters
 |
User manual for the UTP Balun VPAB100LP Passive Audio Balun contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any UTP Balun product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official UTP Balun user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a UTP Balun product will considerably shorten its lifespan!
|

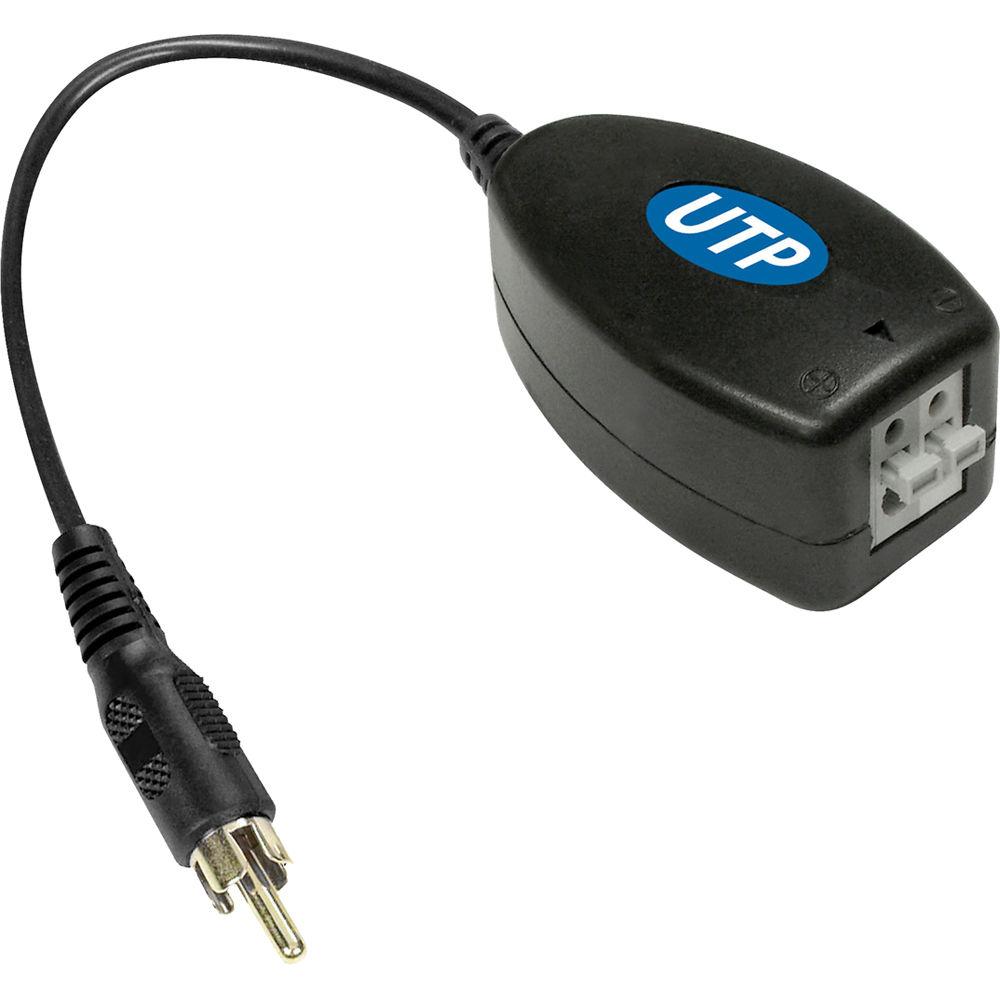

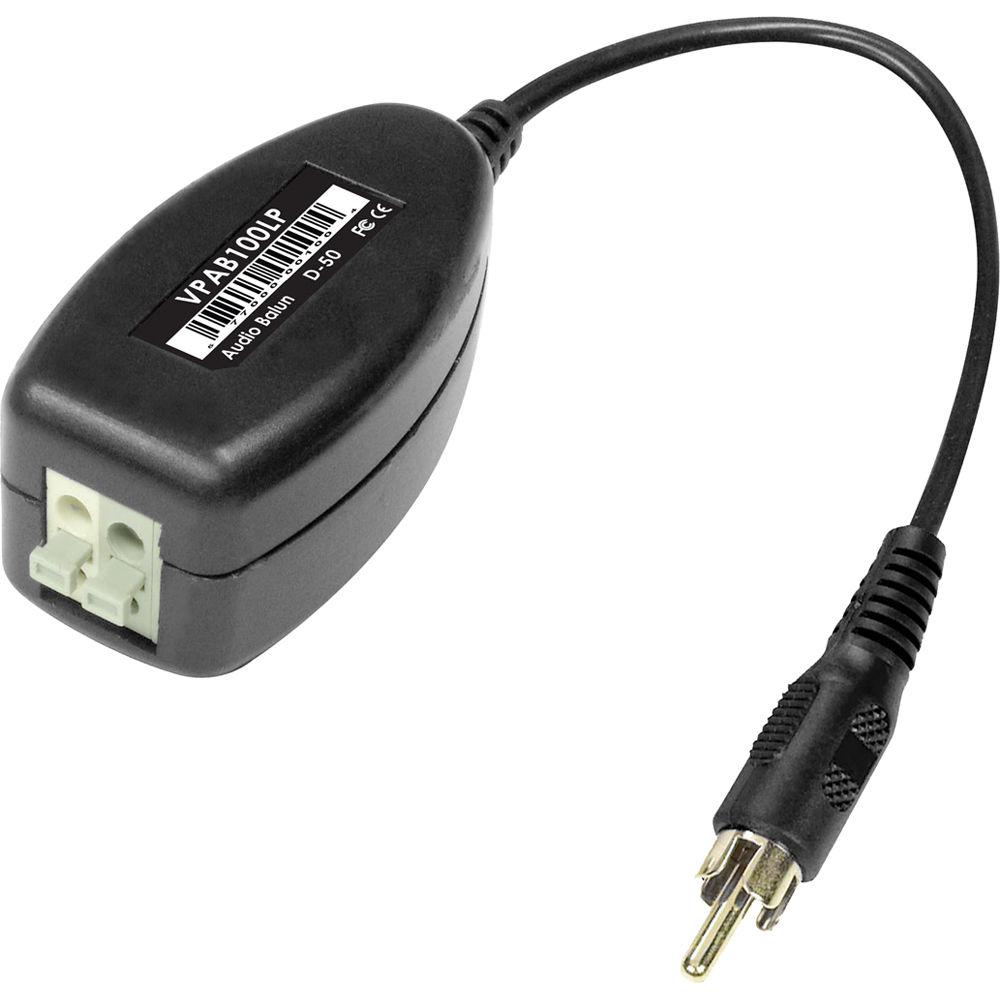

Product description The VPAB100LP Audio Balun Kit from UTP Balun is a transmitter/receiver set with 4.5" leads that allow you to transmit audio over UTP cable in real-time, without any delay. A 1V audio signal can be transmitted up to 1000 ft and a 6V audio signal can be transmitted up to 3300 ft. The set is passive, so no power is required. UPC: 721405351626 In the Box UTP Balun VPAB100LP Passive Audio Balun Transmitter Receiver Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the UTP Balun VPAB100LP Passive Audio Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUTP Balun VPAB100LP Specs | Audio Input/Output | RCA Male to Push Pin terminals | | Audio Features | Resistance:
RCA: 600 Ω
UTP, RJ45 Data Connector: 100 Ω
Signal Transmission Bandwidth:
20 Hz to 20 kHz | | Surge Protections | Output Protection:
2 kV (common mode), 10/700 μs, Standard: IEC61000-4-5
Input Protection:
2 kV (different mode), 2 kV (common mode), Standard: IEC61000-4-5
Input Protection for Overcurrent:
100 mA | | ESD Protection | Contact Discharge:
6 kV Level 3
Air Discharge:
8 kV Level 3
Standard:
IEC61000-4-2 | | Rejection/Protection | Wave / Interference Rejection & Isolation:
Extra Interference Rejection > 60 dB | | Transmission Distance | 1 V Audio: 1000 ft (300 m)
6 V Audio: 3300 ft (1000 m) | | MTBF | > 10,000 hours | | Cable | UTP / Twisted Pair CAT5 (24 AWG) | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Temperature | -4 to 176°F (-20 to 80°C) | | Relative Humidity | 0 to 95% (non-condensing) | | Dimensions | 1 x 0.9 x 1.8" (2.5 x 2.3 x 4.6 cm)
4.5" (11.4 cm) lead | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 5.0 x 3.4 x 1.2" |
