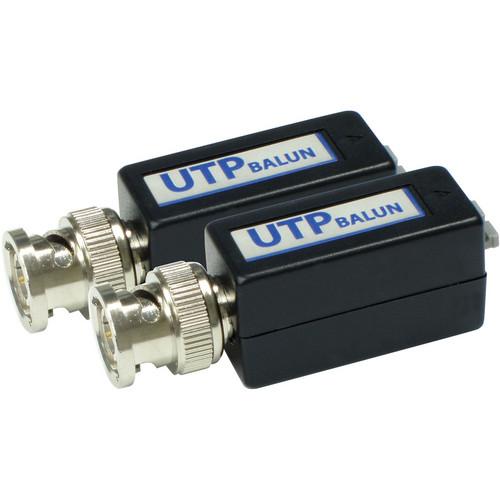

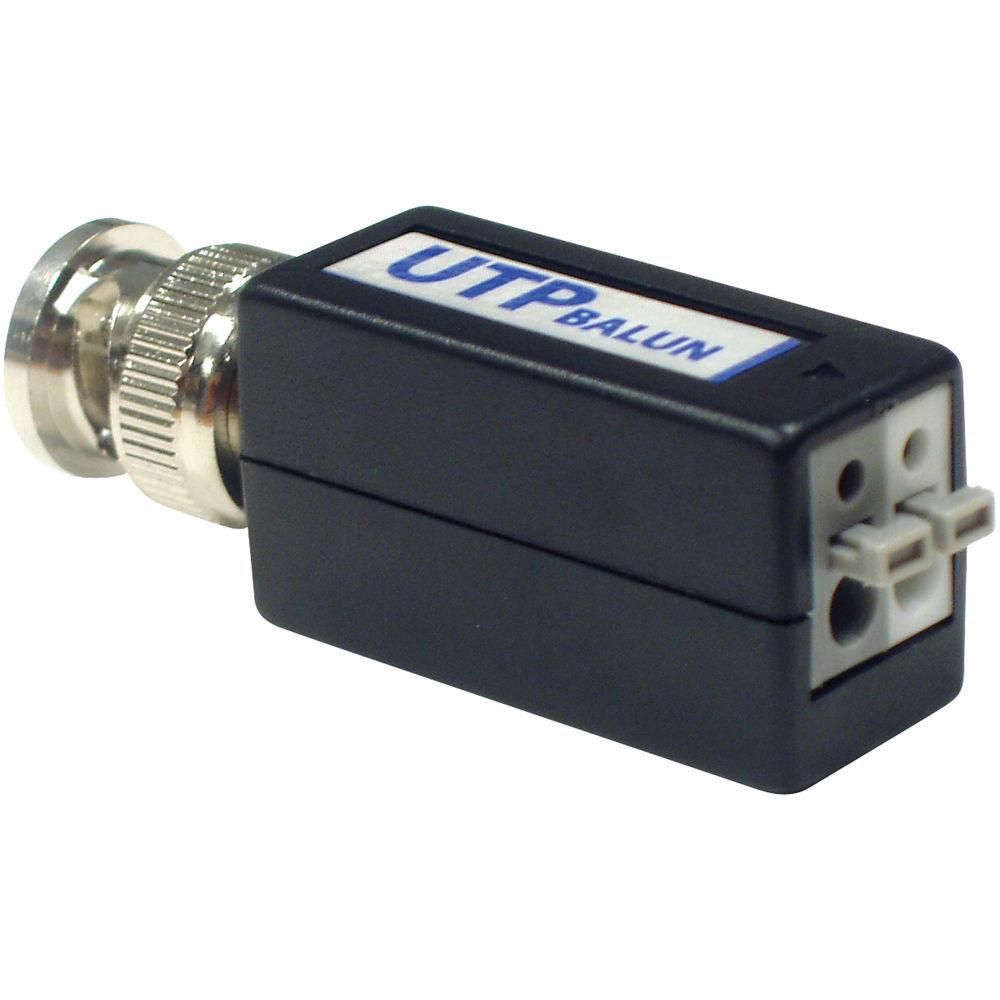

Product description The pair of VPB100P Passive Video Filter Balun from UTP Balun uses a UTP (Unshielded Twisted Pair) cable such as CAT5 to transmit full motion camera video signals up to 1,200’ (400m) in color and up to 2,000’ (600m) in black and white. - Offers 10/700 μs surge and lightning protection, features 2kV pulse, and meets IEC61000 - 4 - 5 standard
- Offers ESD (Electrostatic Discharge) protection, delivers 6kV contact and 8kV air discharge, and meets IEC61000 - 4 - 2 standard
- Wave and interference rejection & noise filter: Built-in filter: 0 to 6 MHz with <60db extra interference rejection
- Passive operation; no power required
- Fast and easy installation
- FC, CE, and RoHS compliant
UPC: 577020021013 In the Box UTP Balun VPB100P Passive Video Filter Balun (Pair) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the UTP Balun VPB100P Passive Video Filter Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

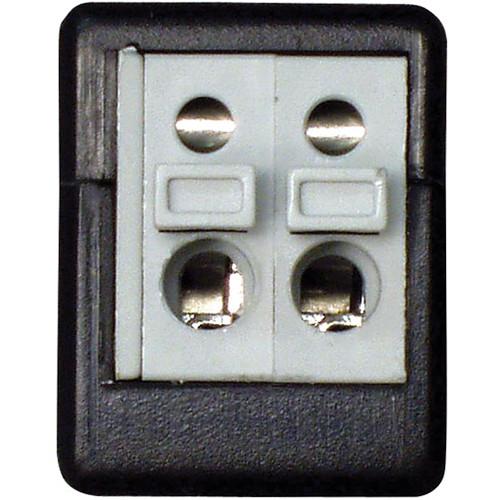

Technical parametersUTP Balun VPB100P Specs | Video Input / Output | BNC male to 2 push-pin terminal | | Surge Protection | Video Output Protection: 2 kV (common mode), 10/700 μS IEC61000-4-5
Video Input Protection for Over Current: 100 mA | | Electrostatic Discharge | Protection (ESD):
Contact Discharge: 6 kV
Air Discharge: 8 kV
Standard: IEC61000-4-2 | | Rejection/Protection | Wave / Interference Rejection & Noise Filter Protection:
Built-in Filter: 0 to 6 MHz
Extra Interference Rejection <60 db | | Video Signal | 1 Vpp, 75 Ω | | Transmission Distance | Color: 1,200' (400 m)
B & W: 2,000' (600 m) | | Cable | UTP / Twisted Pair CAT5 (AWG24) | | | | Dimensions (W x H x D) | 0.59 x 0.75 x 2.13" (15.00 x 19.00 x 54.00 mm) | | Weight | 1.5 oz (42.5 g) | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 4.1 x 3.0 x 1.0" |
