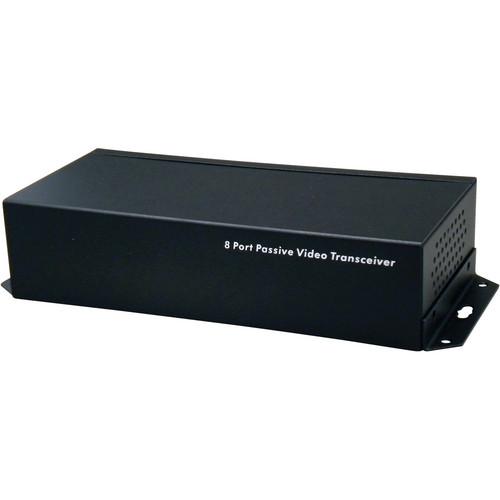

Product description The black VPB800TRJ 8-Channel Passive Video Transceiver Balun from UTP Balun is capable of transmitting color video signals up to 1,200’ (400m) and monochrome video signals up to 2,000’ (600m) over a UTP cable. It uses an RJ45 jack or an 8-screw type terminal to connect between units, eliminating the need to use coaxial cables. - Passive; no power required for operation
- No coaxial cables needed to connect units
- 0 to 6 MHz built-in filter
- Uses RJ45 Jack or 8-screw type terminal to connect units
UPC: 721405351190 In the Box UTP Balun VPB800TRJ 8-Channel Passive Video Transceiver Balun (Black) 2 x Mounting Bracket 4 x Rubber Feet 5 x Mounting Screw Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the UTP Balun VPB800TRJ 8-Channel Passive Video Transceiver Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUTP Balun VPB800TRJ Specs | | | Video Support | All baseband signals including PAL, NTSC, and SECAM | | Band | Balance Band: 0 to 6 MHz
Signal Band: 250 MHz (-3 dB) | | Maximum Transmission Distance | Color: 1,200' (400 m)
B/W: 2,000' (600 m) | | Interference Rejection | >75 dB | | | | Video Output Connector | 8 x female BNC,
Resistance 75 Ω | | UTP Connector | Screw terminal set and RJ45
Resistance 50 Ω | | | | Video Output | 2 kV (common mode), 10/700 μs
Standard: IEC61000-4-2 | | Video Input | 2 kV (different mode), 2 kV (common mode)
Standard: IEC61000-4-2
For Over Current: 100 mA | | Stability | MTBF: >30,000 hours | | | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -40 to 302°F (-40 to 150°C) | | Relative Humidity | 0 to 95% | | | | Housing Material | Metal | | Dimensions (L x W x H) | 7.48 x 3.34 x 1.73" (190.00 x 85.00 x 44.00 mm) | | Weight | 1.28 lb (0.58 kg) | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 9.0 x 4.9 x 2.8" |
