User Manual for V.I.O. POV.HD Narrow with 16.4' Extension Cable Click to enlarge the picture
Contents of the user manual for the V.I.O. POV.HD Narrow with 16.4' Extension
- Product category: Sports & Action Cameras V.I.O.
- Brand: V.I.O.
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for V.I.O. Sports & Action Cameras
 |
User manual for the V.I.O. POV.HD Narrow with 16.4' Extension contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any V.I.O. product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official V.I.O. user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a V.I.O. product will considerably shorten its lifespan!
|
Product description Featuring the same recording unit as the POV.HD, the POV.HD Narrow with 16.4' Extension Cable from V.I.O. includes a 47-degree narrow field-of-view lens instead of a fisheye. This narrow angle is free from fisheye distortion and allows you to capture a tighter, more close-up angle on your subject, whether it's a wakeboarder, angler, ski, rider, or anything else. Like the wide-angle model, the POV.HD Narrow is able to record 1080p30 and 720p60 video, recording the footage to an SDHC card. An IP67 rating means the system is sufficiently water-resistant to be submerged at 3.3' for up to 30 minutes, is dustproof, and impact resistant.

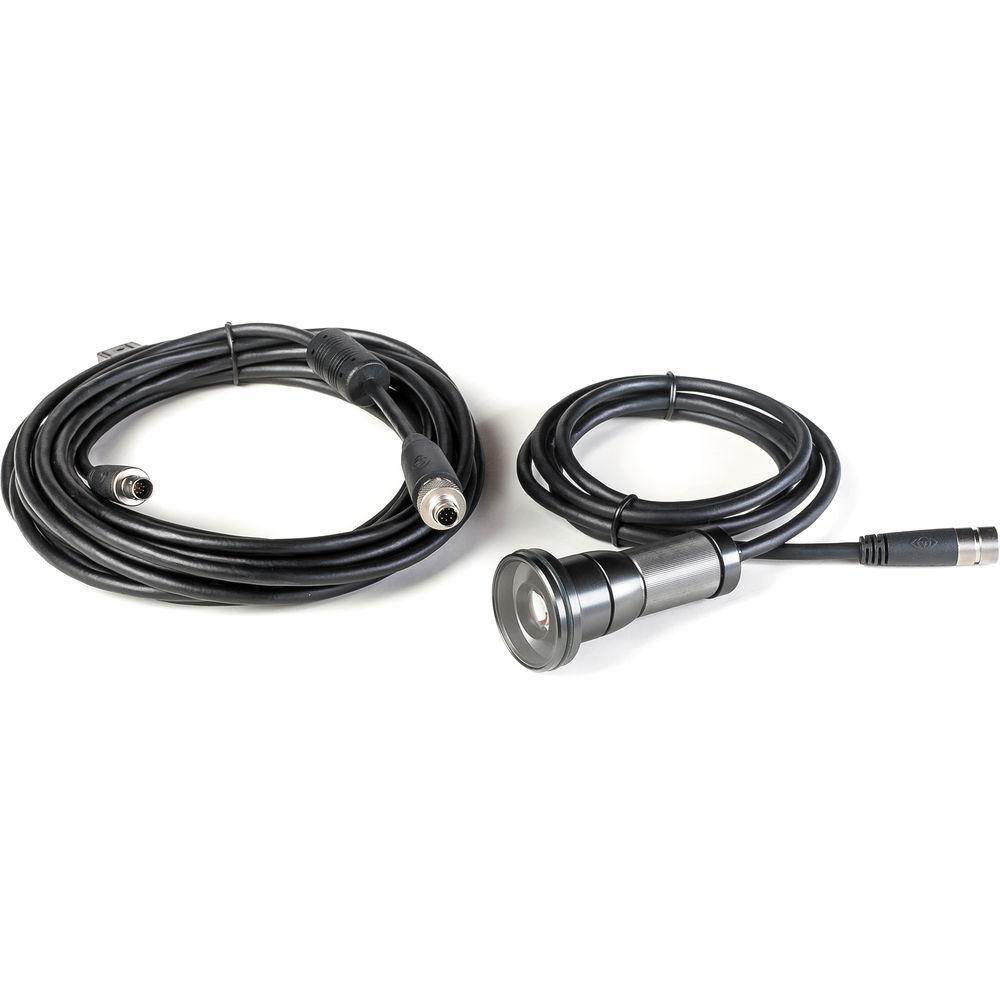

The camera unit features a 5' cable, plus there is a special 16.4' interface cable - also included - that is required to tether the camera to the POV.HD recording unit, giving you 21.4' of total length. On the recording unit there is a 2" screen with 640 x 320 resolution, helping you compose shots and review what's already been recorded. The controls are kept simple to help you get the setting you need when you need it. Plus, there is an RF remote included that gives you "Record", "Tag", and "Stop" functionality - ideal if the recording unit is in an inaccessible place.
The camera unit features a cylindrical body, designed to give you mount-anywhere flexibility. It includes a camera clamp that lets you mount it on a tripod, suction cup, or other hardware with a 1/4"-20 screw, and includes assorted mounts for body-wearing the camera and recording unit. The entire system powers from four AA batteries. With most chemistries, batteries last up to 2.5 hours, while lithium-ion AAs provide up to 5 hours.

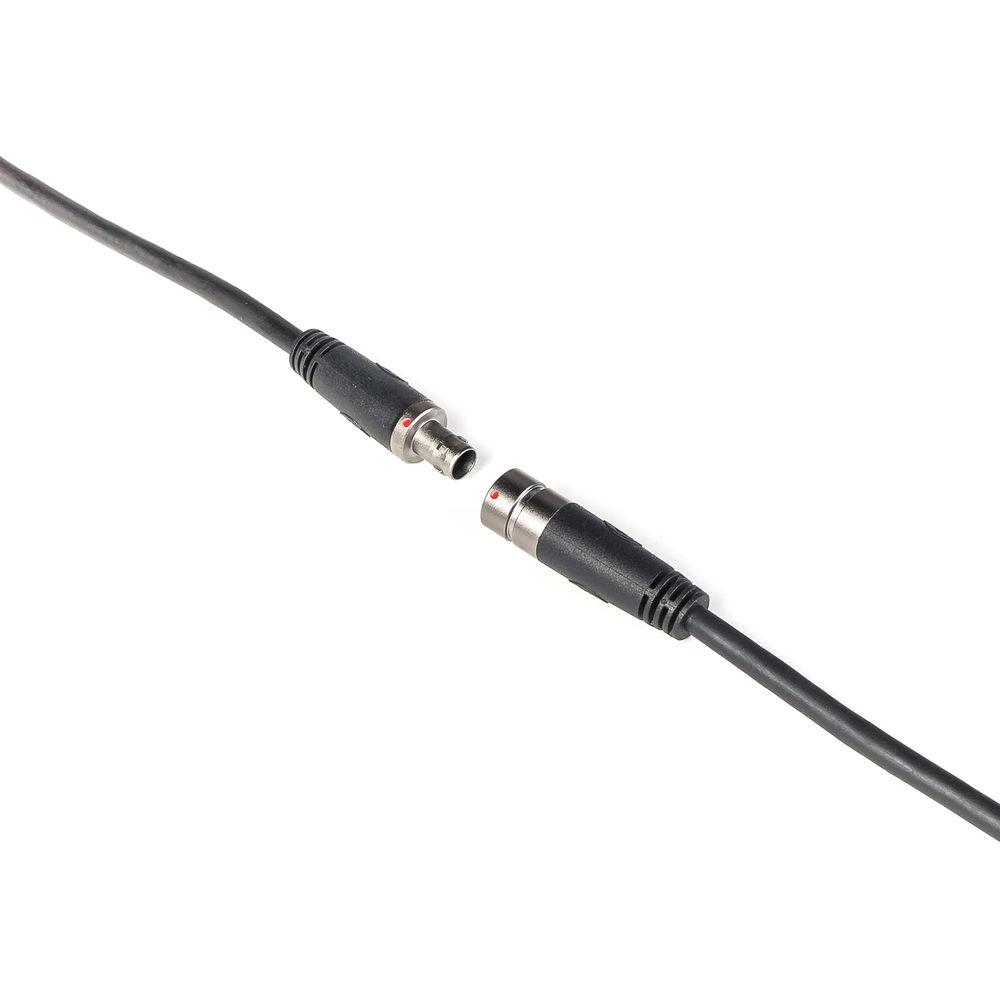

The included 16.4' extension cable is not compatible with the wide-angle camera unit that comes with the original POV.HD (POV200) - In-the-Field Flexibility
-
In-Field Editing - Tag scenes while recording from either the recorder or the wireless remote control
- Compile tagged scenes into highlight clips automatically and in-the-field
In-Field Exposure Control
- Exposure compensation - Improve color saturation and contrast in especially bright or grey shooting conditions
- Exposure metering - Set the automatic exposure control sampling area
Four Recording Methods - Clip mode - Start and stop recording action from your POV
- Loop mode - Capture footage from the past
- Loop and forward mode - Capture footage from the past and continue recording into the future
- Still image mode
- HD Video Recording
-
- 1080p/30 fps and 720p/60 fps high definition recording
- Rugged Design
-
- Shock proof
- Water proof - 3.3'/30 mins
- Dust proof
- Ease-of-Use
-
- Modular mounting
- Powered by 4 AA batteries
- Wireless remote control included
UPC: 858564005043 In the Box V.I.O. POV.HD Narrow with 16.4' Extension Cable USB AV Cable Wireless Remote Control 4 x AA Batteries Antiglare Screen Protector 4GB SDHC Card Carrying Case Camera Clamp Mounting Hardware Lens Cover Limited 1-Year Warranty User Manual PDF 2.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the V.I.O. POV.HD Narrow with 16.4' Extension Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersV.I.O. POV.HD Specs | | | Sensor | 1-Chip 1/2.7" CMOS | | | | Maximum Aperture | f/2 | | Fixed Focus | Yes | | Angle of View | 47° | | | | System | NTSC/PAL | | Recording Media | x SD/SDHC (32 GB Maximum) | | Recording Time | SD/SDHC 32 GB
720p60 & 1080p30: 4.33 hours | | Video Format | 1920 x 1080p at 24/25/30 fps (H.264)
1280 x 720p at 25/30/50/60 fps (H.264)
640 x 480p at 25/30 fps (H.264) | | Aspect Ratio | 16:9
4:3 | | Channels | 1.0-Channel Mono | | Audio Format | AAC | | Sampling Frequency | AAC: 16.0 kHz | | Bit Rate | AAC: 16.0-Bit | | | | Display Type | LCD | | Touchscreen | No | | Screen Size | 2" | | Resolution | 640 x 320 | | | | IP Rating | IP6X | | Built-In Mic | Yes | | Built-In Speaker | Yes | | Built-In Light/Flash | Light - No
Flash - No | | | | Inputs | 1 x Microphone In | | Outputs | 1 x USB Mini-B
1 x A/V | | Microphone Input | Yes | | Headphone Jack | No | | | | Battery | 4 x AA
Max Runtime: 2.5 Hours per Charge Up to 5 hours with lithium-ion AAs | | Power Adapter | None | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Dimensions (W x H x D) | 1.6 x 2.4 x 6.6" / 40.0 x 60.0 x 167.0 mm Recording unit only | | Weight | 0.72 lb / 328 g Recording unit only | | | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 8.504 x 8.425 x 6.535" |
