User Manual for V.I.O. Stream Web Programmable HD IP Network Camera with USB Click to enlarge the picture
Contents of the user manual for the V.I.O. Stream Web Programmable HD IP
- Product category: Sports & Action Cameras V.I.O.
- Brand: V.I.O.
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for V.I.O. Sports & Action Cameras
 |
User manual for the V.I.O. Stream Web Programmable HD IP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any V.I.O. product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official V.I.O. user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a V.I.O. product will considerably shorten its lifespan!
|

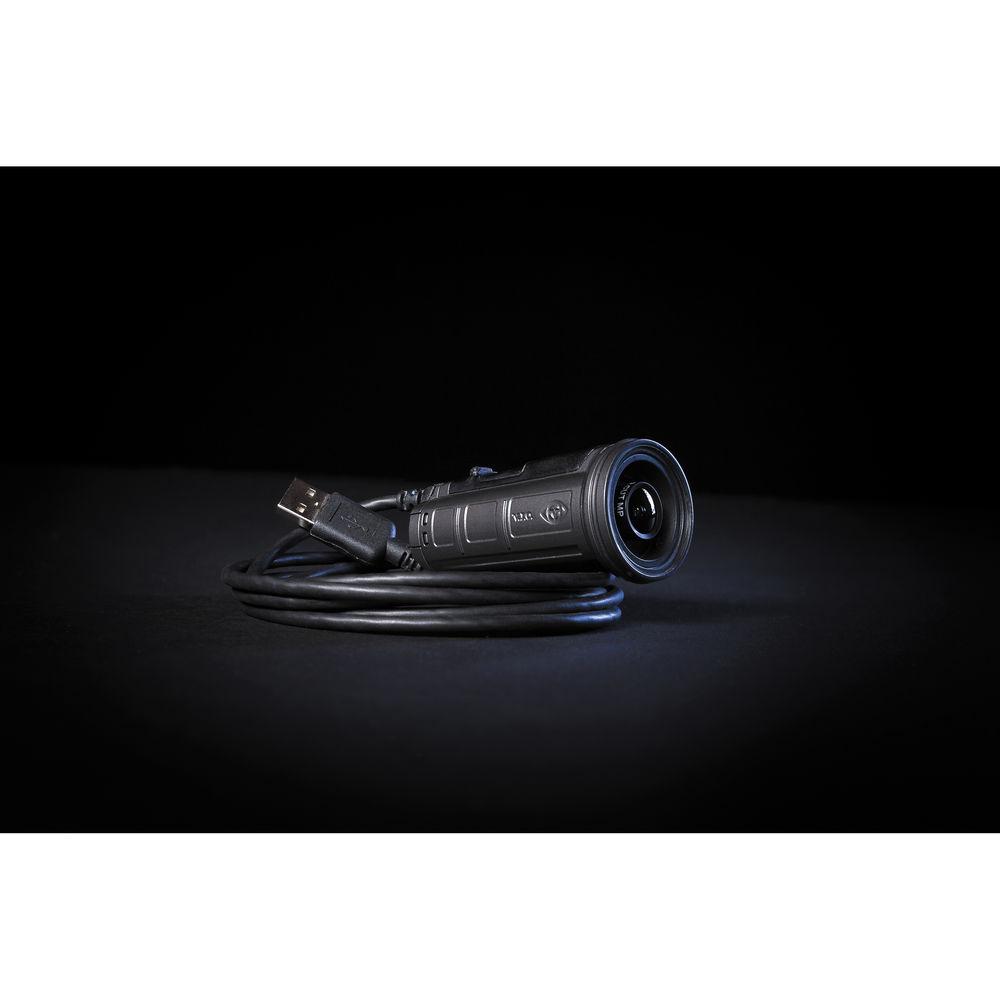

Product description The Stream Web Programmable HD IP/Network Camera with USB from V.I.O. combines the take-anywhere ruggedness of an IP67-rated action camera with the streaming functionality of a professional IP encoder. It streams up to 1080p resolution using H.264 encoding and the widely-supported RTSP protocol, and in addition can record internally on a microSDHC memory card up to 32GB in size. It features a 142-degree ultra-wide lens to help give footage an immersive POV feel, and uses a 1/2.7" Full HD CMOS sensor combined with an f/2.0 aperture, which together are designed to adapt to poorly- and well-lit situations alike.

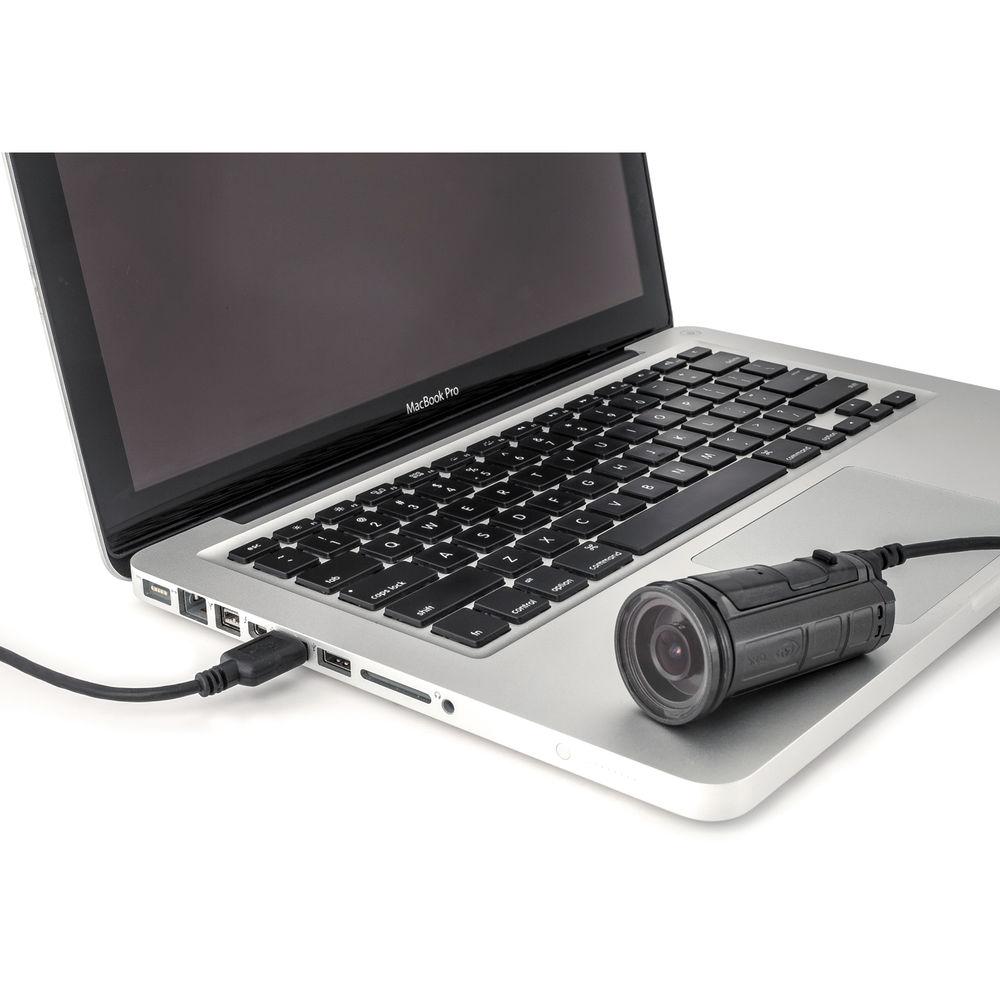

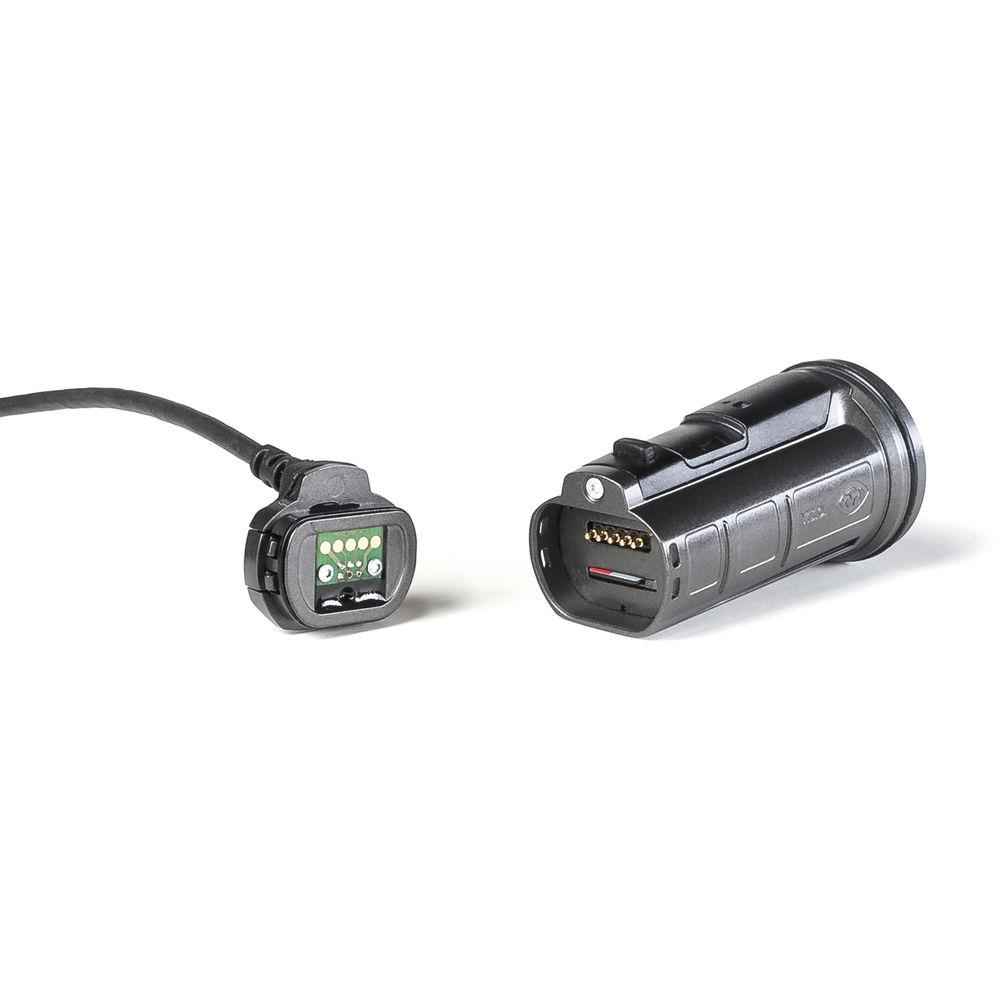

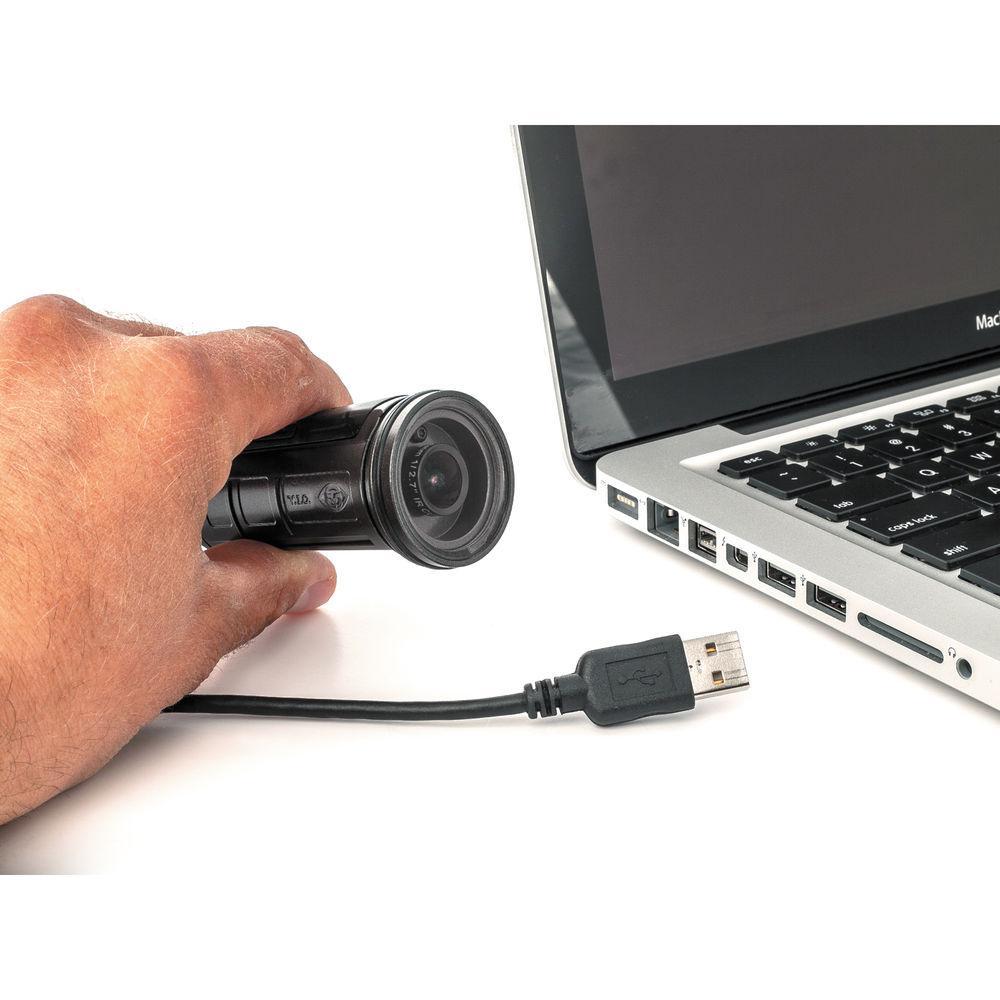

The camera features a USB interface that delivers power and can be used for streaming. A USB power source is not included, and can be anything from a USB backup battery to a computer - it just needs to supply 5VDC at 1 to 2 amps. There is also a Wi-Fi connection so that the camera can connect wirelessly to a network or directly to another Wi-Fi enabled device, such as a smartphone, using an "ad hoc" connection. The included USB cable is 5' in length, and the camera supports cables up to 16.4'.
For mounting, a camera clamp with 1/4"-20 tripod adapter is included. In addition, the Stream is compatible with a range of separately available mounting solutions, so that it can be adapted for use in nearly any scenario - on a boat, attached to a car, helmet mounted - just about anything you can think of. - Ultra-Wide 142-Degree Field of View
- In its HD settings the camera features an ultra-wide 142-degree field of view to help capture as much of what's happening in front of the lens as possible, as well as give the footage a POV feel
- Water-Resistant and Dustproof Under IP67
- The camera can be used safely in dusty environments and can be submerged up to 3.3' for a brief period of time (less than 30 minutes). This makes it ideal for situations where an IP camera with the ruggedness of an action camera is required
- Wi-Fi Enabled
- In addition to USB streaming, the camera features Wi-Fi allowing it to connect wirelessly to a network. Thanks to efficient H.264 encoding and RTSP streaming protocol support, the camera can stream HD over either USB or Wi-Fi
- Open API
- Camera functionality can be tailored for custom applications using the API (application programming interface). In addition, XML support means the camera can be configured by editing an XML document associated with it. Settings include:
- Resolution for sensor, streaming, recording, and still pictures
- Record
- Sharpening
- Noise filter
- Exposure metering
- Exposure compensation, format
- Set microphone level
- Set alert volume
- Set recording methods
- Date/time overlay
- Update firmware
- Restore default settings
- Power Down
- Set bit rate/image quality
- Wi-Fi configuration
- Full HD RTSP (Real Time Streaming Protocol) Streaming
- The camera streams using the RTSP protocol, which is used by many CDN (content delivery network) services and is supported by a wide range of media players, including RealPlayer, Winamp, QuickTime, FFmpeg, and more. It is able to stream at up to Full HD (1080p) resolution in the efficient H.264 codec with audio encoded in ACC
- Web Programmable
- A Web user interface means camera setting can be adjusted using most Web browsers from a device connected to the same network as the camera

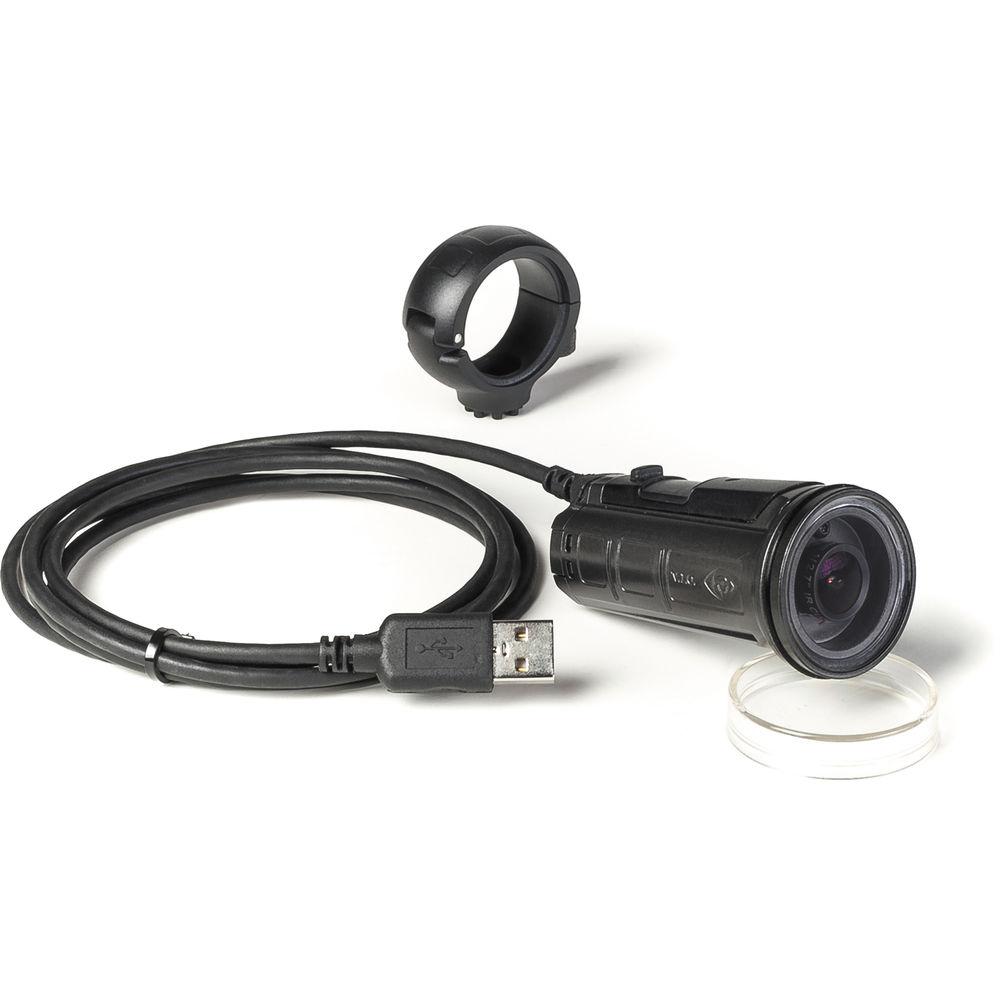

UPC: 858564005005 In the Box V.I.O. Stream Web Programmable HD IP/Network Camera with USB 5' USB Cable 8GB microSDHC Card Camera Clamp Tripod Mounting Plate Lens Protector Limited 1-Year Warranty User Manual PDF 4.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the V.I.O. Stream Web Programmable HD IP Network Camera with USB in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersV.I.O. Stream Web Specs | | | Sensor | 1-Chip 1/2.7" CMOS | | | | Maximum Aperture | f/2 | | Lens Elements | 6 | | Minimum Focusing Distance | 31.5" / 80.0 cm | | Angle of View | 142° (At 1080p, 720p, 480p, and 240p) | | | | Recording Media | x microSD/HC (32 GB Maximum) At least Class 6 required; Class 10 recommended | | Recording Time | 32 GB
1920 x 1080 4.5 hours
1280 x 720 4.5 hours | | Video Format | 1920 x 1080p at 24/25/30 fps (H.264)
1280 x 720p at 25/30/50/60 fps (H.264)
720 x 480p at 25/30 fps (H.264)
320 x 240p at 15 fps (H.264) | | Aspect Ratio | 16:9 | | Audio Format | AAC-LC | | Sampling Frequency | AAC: 16.0 kHz | | | | Waterproof Depth Rating | 3.3' / 1.0 m (Camera) | | IP Rating | IP67 | | Wi-Fi | Yes, Wi-Fi 4 (802.11n) | | Tripod Mount | 1/4" - 20 Via included mount. | | | | Outputs | 1 x USB 2.0 5' USB cable integrated with USB end-cap | | | | Operating Temperature | -4 to 104°F / -20 to 40°C | | Dimensions (W x H x D) | 1.4 x 1.4 x 3.1" / 35.6 x 35.6 x 78.7 mm | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 5.906 x 4.646 x 3.465" |
