Product description The Vaddio 999-1005-022 Extreme USB 2.0 Extender provides a complete working solution powered by Extreme USB Long Reach USB 2.0, which is enabled by the Lion’sGate USB 2.0 Extension ASIC. The system has a transmit (TX) or remote device side and a receive (RX) or Host PC side, and extends the USB 2.0 high speed and USB 1.1 devices up to 328.1’ (100 m) over CAT-5 or a better cable.
The TX side has the USB Type-A female USB 2.0 input jack and is located with the device and is powered with the 5 VDC power supply, while the RX side is port powered by the Host PC. Power is not required on the RX Host side for normal operation.
This extender operates with USB 2.0 high speed host controllers and USB 1.1 classic hosts. All USB device types are supported including Control, Interrupt, Bulk, and Isochronous at up to 480 Mbp/s. This extender is of the true plug-and-play type and ready to operate out of the box, and no new driver installation is required.
This Extreme USB 2.0 Extender supports all major operating systems including Windows, Mac OS, and Linux and is ideal for a wide variety of USB devices like Vaddio HD-USB Cameras, EasyUSB Mixer/Amp, and EasyTalk Wireless USB Mic System as well as printers, scanners, touch screens, and game controllers. - Extreme USB 2.0 Extender TX (Remote or TX side)
- Extreme USB 2.0 Extender RX (Local or RX side)
- 5 VDC power supply and power cord
In the Box Vaddio 999-1005-022 Extreme USB 2.0 Extender Extreme USB Extender TX Extreme USB Extender RX 5 VDC Switching Power Supply North American Power Cord 6' (1.83 m) USB 2.0 Cable Type-A Male to Type-B Male Documentation 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio 999-1005-022 Extreme USB 2.0 Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVaddio 999-1005-022 Specs | Range | 330' (100 m) over CAT-5 (or better) cable | | USB Support | USB Device Support: High-speed devices (480 Mb/s) (USB 2.0), full speed devices (12 Mb/s) (USB 2.0 & 1.1), and low speed devices (1.5 Mb/s) (USB 2.0 & 1.1) | | AC Adapter | Input: 100/240 VAC, 50 to 60 Hz, 600 mA maximum
Output: 5 VDC, 3 A

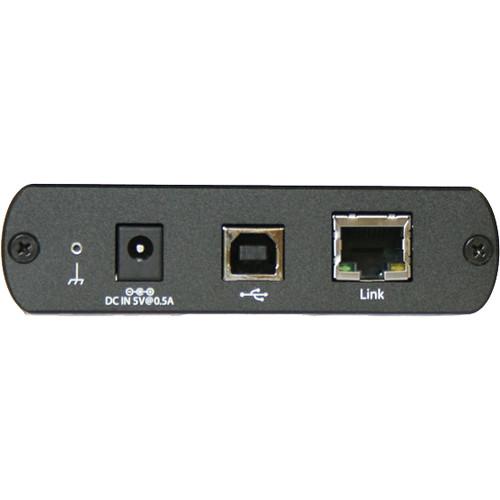

AC Adapter Connector: 0.07" (1.7 mm) center-positive jack | | Current | Current Available to USB Device at RX Unit: 500 mA | | Connector | RX Unit USB Connector: 1 x USB type-B

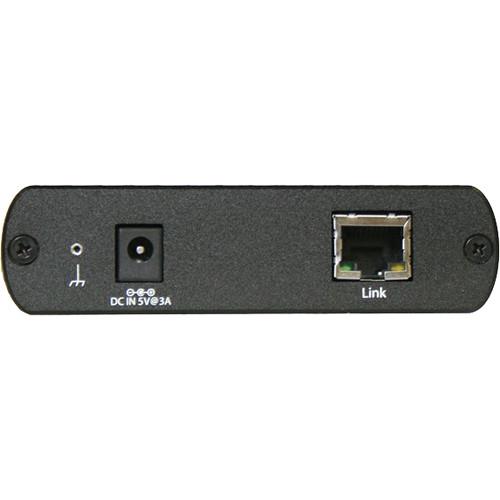

TX Unit Link Connector: 1 x RJ45
TX Unit Link Connector: 1 x RJ45
TX Unit USB Connector: 1 x USB type-A | | Power Consumption | TX Power Consumption: 500 mA maximum
RX Power Consumption: Approximately 500 mA (no load), 1.5 A (full load) | | Temperature | Operating Temperature Range: 32 to 122°F (0 to 50°C)
Storage Temperature Range: -4 to 158°F (-20 to 70°C) | | Humidity | Operating Humidity: 20 to 80% relative humidity, non-condensing
Storage Humidity: 10 to 90% relative humidity, non-condensing | | Regulatory | Testing: FCC (Class B), IC (Class B), CE (Class B) | | ESD | Rating: EMC EN-61000-4-2 8 kV contact, 16 kV air | | Dimensions | RX Unit Dimensions: 3.94 x 2.99 x 1.02" (100 x 76 x 26 mm)
TX Unit Dimensions: 3.94 x 2.99 x 1.02" (100 x 76 x 26 mm) | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 9.4 x 6.6 x 2.9" |
