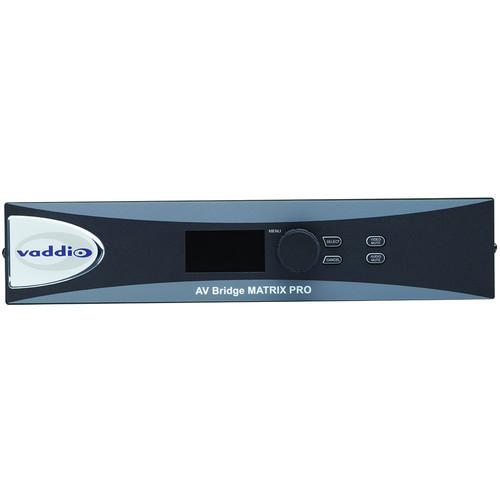

User Manual for Vaddio Audio-Visual Bridge Matrix PRO Click to enlarge the picture
Contents of the user manual for the Vaddio Audio-Visual Bridge Matrix PRO
- Product category: Automated Camera Components Vaddio
- Brand: Vaddio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vaddio Automated Camera Components
|
User manual for the Vaddio Audio-Visual Bridge Matrix PRO contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vaddio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vaddio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vaddio product will considerably shorten its lifespan!
|
Product description The Audio-Visual Bridge Matrix PRO from Vaddio enables you to mix multiple audio and video sources into a single USB stream. You can incorporate multiple cameras, microphones and loudspeakers into a PC-based room design. The typical PC limits the amount of connected USB peripherals to one video and one audio input device. This bridge expands the PC's capabilities to incorporate up to eight independent audio inputs and four independent video inputs, into the USB mixer.
The eight channel digital audio mixer can support up to four Vaddio MicPODS and four, balanced or unbalanced, audio inputs equipped with integrated echo cancellation and Digital Signal Processing. The four independent audio outputs provide discrete outputs with individual gain control for complete matrix mixing.
The four channel video mixer features Vaddio's Quick-Connect technology so now any Vaddio Camera can be plugged directly into the first three inputs of the video mixer. This simplifies camera installation by providing power, video, and control to each of the cameras with CAT-5 cabling. A Quick-Connect Display output allows you to send the output video over CAT-5 to the room display. Supported formats include HDMI, DVI, RGBHV, and HD Analog Component.
The first three video inputs on the video mixer are also equipped with HDMI inputs for supporting other cameras or video equipment. Two discrete video outputs allow for independent video resolution selection. The digital video processor allows for each video input/output resolution to be up/down converted as required. - Handles both USB record and playback channels
- Up to five simultaneous streaming clients
- Audio configuration via web pages
- Audio processing includes AEC and noise cancellation, AGC, programmable filters, and EQ
- Video processing includes PIP, transitions, CCU, and text overlay
- Automatic microphone mixing
In the Box Vaddio Audio-Visual Bridge Matrix PRO Power Supply with Power Cord 6' USB Cable 4 x Rubber Feet 2 x Rack Mount Ears Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio Audio-Visual Bridge Matrix PRO in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVaddio 999-8230-000 Specs | Connectors | 1 x 9-pin Sub-D female, RS-232 serial port
1 x 12-pin terminal, 10 trigger inputs
4 x RJ45, EasyMic ports
4 x 3-pin terminal, input balanced or unbalanced
4 x 3-pin terminal, output balanced or unbalanced
1 x 24 VDC barrel, power
1 x RJ45, network
1 x USB 2.0 Type-B, female
3 x RJ-45, RS232
3 x RJ-45, power and video
3 x HDMI, input
1 x 15-pin Sub-D, PC RGBHV input
1 x HDMI, PC input | | Controls | 1 x push button, select
1 x push button, cancel
1 x push button, video mute
1 x push button, audio mute
1 x turn dial, menu | | Supported Input Resolutions | HDMI:
1080p/60/59.94/50/30/25 fps, 720p/60/59.94/50 fps, 1080i/59.94/50 fps
RGBHV (VESA):
1280 x 720@60Hz (16:9), 1280 x 768@60Hz (15:9), 1280 x 800@60Hz (16:10), 1360 x 768@60Hz (16:9), 1024 x 768@60Hz (4:3 centered in 16:9 frame)
DVI (on HDMI connector using sRGB color space):
1080p/60/59.94/50 fps, 720p/60/59.94/50Hz fps, 1080i/59.94/50Hz, fps, 1440 x 900@60Hz, 1360 x 768@60Hz, 1280 x 800@60 Hz, 1280 x 768@60Hz, 1280 x 720@60Hz
EDID Supported Resolutions:
1080p/60/59.94/50 fps, 720p/60/59.94/50Hz fps, 1440 x 900@60Hz, 1360 x 768@60Hz, 1280 x 800@60 Hz | | Encoding Resolutions | IP (H.264 & AAC Audio) up to 1080p/30
USB 2.0 (MJPEG & PCM Audio) up to 720p/30 (limits of USB 2.0) | | Video Processing | Auto-scaling, noise filter, de-interlacing | | Audio Processing | Compressor, EQ Filter | | Compatibility | EasyUSB MicPODS, Ceiling MicPODs
Interfaces with ZoomSHOT, WideSHOT, and Vaddio HD PTZ cameras | | Supported Media Players | Quick-Time
RealPlayer
VLC Media Player (IP Streaming) | | Dimensions (H x W x D) | 3.5 x 18.9 x 8.0" (88.1 x 480.8 x 203.2 mm) | | Weight | 5.6 lb (2.5 kg) | | | | Package Weight | 9.55 lb | | Box Dimensions (LxWxH) | 25.0 x 12.6 x 6.9" |
