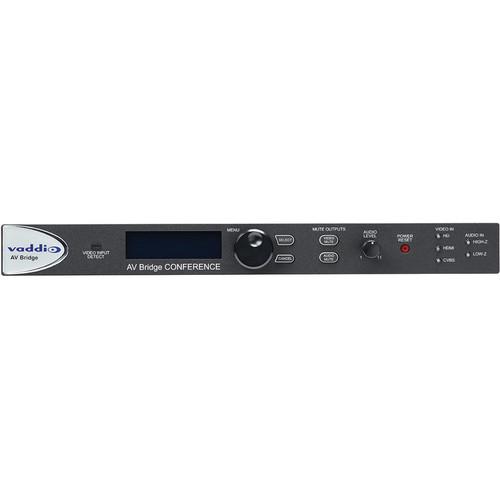

Product description Simplifying the task of inputting audio and video into a standard PC, and avoiding the need for dedicated digitizing hardware in your PC, the Vaddio AV Bridge CONFERENCE HD Audio/Video Encoder handles HDMI, YPbPr, and even SD video signals. The encoder converts the signals to a video stream compatible with PCs that do not have specialized hardware or drivers. It features an internal web browser interface, allowing you to set up and control the unit over a network, or by using RS-232 over an RJ-45 connector.
Suitable for single-hall applications, the AV Bridge CONFERENCE converts NTSC/PAL signals up to 1080p 60 into MJPEG for USB streaming. It allows you to connect the video from almost any conference room setup to a PC or across a network. The unit can be used to retrofit existing conference rooms with newer infrastructure without upgrading the cameras or audio equipment. It includes rubber feet and rack mount ears, allowing you to use it on a desk top or in a rack. - AV Bridge CONFERENCE supports USB 2.0 A/V streaming (MJPEG/PCM) or IP A/V streaming (H.264/AAC).
- Stream directly to a PC or Mac with USB 2.0 using MJPEG video with resolutions up to 720p/30 (limits of USB 2.0) with PCM uncompressed audio or use IP streaming with resolutions up to 1080p/30 using H.264 video with AAC audio encoding.
- The AV Bridge CONFERENCE supports 2-way analog audio, which allows it to send the near-end room audio to the far-end and return the far-end audio to the local room's optional pro mixer with AEC.
- The AV Bridge CONFERENCE minimizes interoperability problems by using standard UVC (Universal Video Class) and UAC (Universal Audio Class) drivers, which are built-in the OS of the PC or Mac eliminating interoperability or driver issues.
- IP streams are standard based MPEG4 allowing playback of content on market leading players like Quick-Time, RealPlayer, or VLC Media Player.
In the Box Vaddio AV Bridge CONFERENCE HD Audio/Video Encoder (North America) Pair of 1RU Rack Mount Ears 18 VDC, 2.75 Amp Switching Power Supply with AC Power Cord for North America 6' (1.83m) USB 2.0 Cable, Type-A Male to Type-B Male (black) 4 x Rubber Feet for Bottom of Enclosure Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio AV Bridge CONFERENCE HD Audio Video Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVaddio 999-8215-000 Specs | Supported Input Resolutions | HDMI
1080p 60/59.94/50/30/25/24
720p 60/59.94/50
1080i 59.94/50
YPbPr
1080p: 60/59.94/50/30/25
720p: 60/59.94/50
1080i: 59.94/50
RGBHV
1280 x 720 60Hz (16:9)
1280 x 768 60Hz (15:9)m
1280 x 800 60Hz (16:10)
1360 x 768 60Hz (16:9)
1024 x 768 60Hz (4:3 centered in 16:9 frame)
DVI (On the HDMI connector using sRGB color space)
1080p: 60/59.94/50
720p: 60/59.94/50Hz frames/s
1080i: 59.94/50Hz
1440 x 900 60Hz
1360 x 768 60Hz
1280 x 800 60 Hz
1280 x 768 60Hz
1280 x 720 60Hz
EDID Supported Resolutions
1080p: 60/59.94/50
720p: 60/59.94/50H
1440 x 900 60Hz
1360 x 768 60Hz
1280 x 800 60 Hz
Composite (SD-Standard Definition)
NTSC
PAL | | Video Encoding | H.264 (IP)
MJPEG (USB) | | Resolution | IP: Up to 1080p 30
USB: 720p 30 | | Audio Encoding | IP: AAC (variable bit rate)
USB: PCM | | Video Input | 1 x HDMI
1 x YPbPr/RGBHV
1 x Composite | | Analog Audio | Input
1 x XLR-F (nominal line level +4dBu), balanced 10k ohm
1 x RCA-F (nominal line level -10dBV), unbalanced 10k ohm
Output
1 x XLR-M, balanced 50 ohm
1 x RCA, unbalanced 10k ohm | | USB 2.0 | Interface
Connector Type-B Female, USB 2.0 Compliant
Supported Drivers: USB Video Class, (UVC), USB Audio Class (UAC) | | Network Interface | 1 x RJ-45 (10/100 Base-T) | | IP Streaming | RTSP
HLS | | RS-232 | 1 x RJ-45 | | Power Supply | Connector: 5.5 mm O.D. x 2.5 mm I.D> Coaxial
18 VDC
2.75 A | | Power Consumption | <50 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions (W x H x D) | 18.9 x 1.7 x 7.0" / 48.0 x 4.3 x 17.8 cm | | Weight | 3.1 lb / 1.4 kg | | | | Package Weight | 5.9 lb | | Box Dimensions (LxWxH) | 20.4 x 11.5 x 5.5" |
