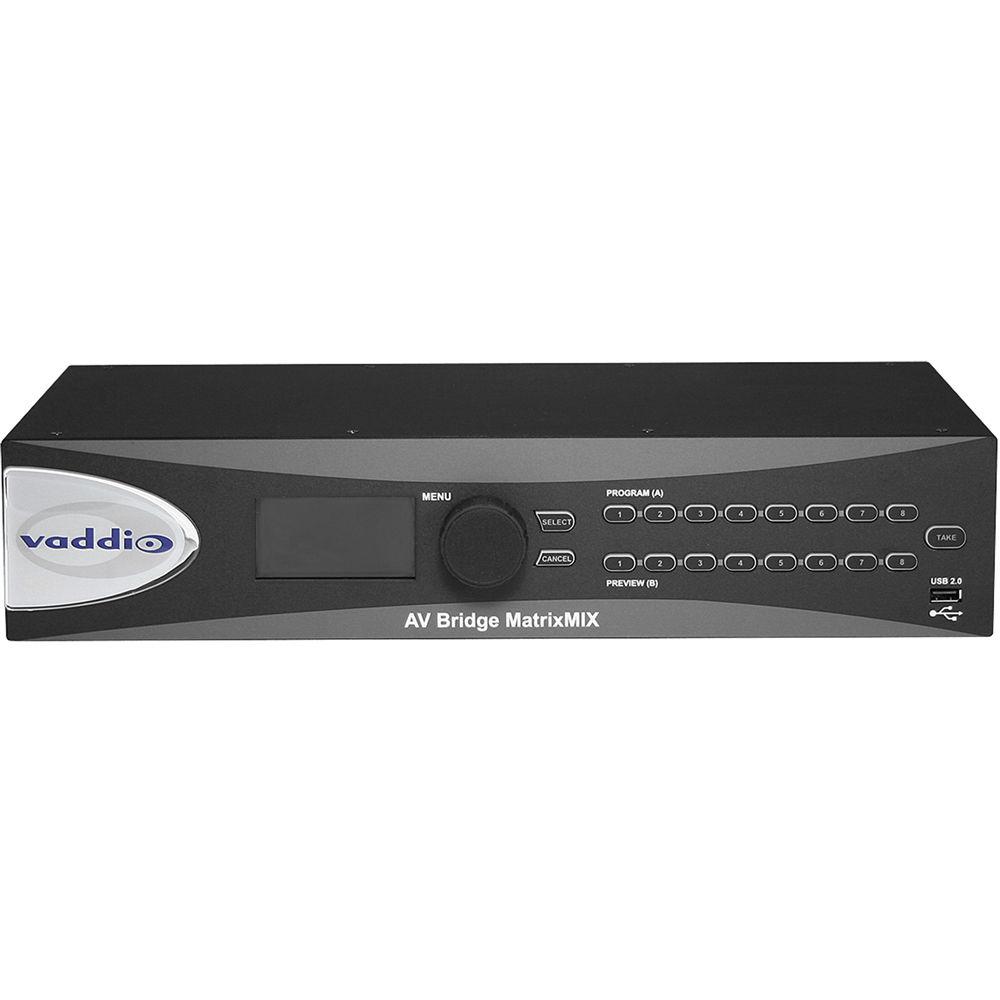

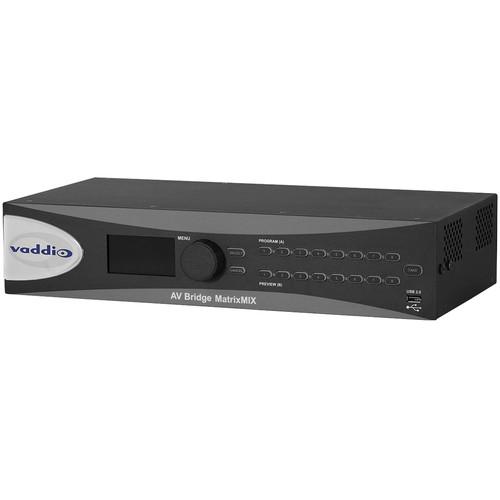

Product description Provided by third party: The AV Bridge MatrixMIX AV Switcher is an 8x2 video mixer that also provides multiviewer output. Its 11x7 audio mixer supports analog, HDMI, USB and IP audio channels. It offers embedded RTSP IP and USB 3.0 output streaming, plus two graphic keying layers per output channel.

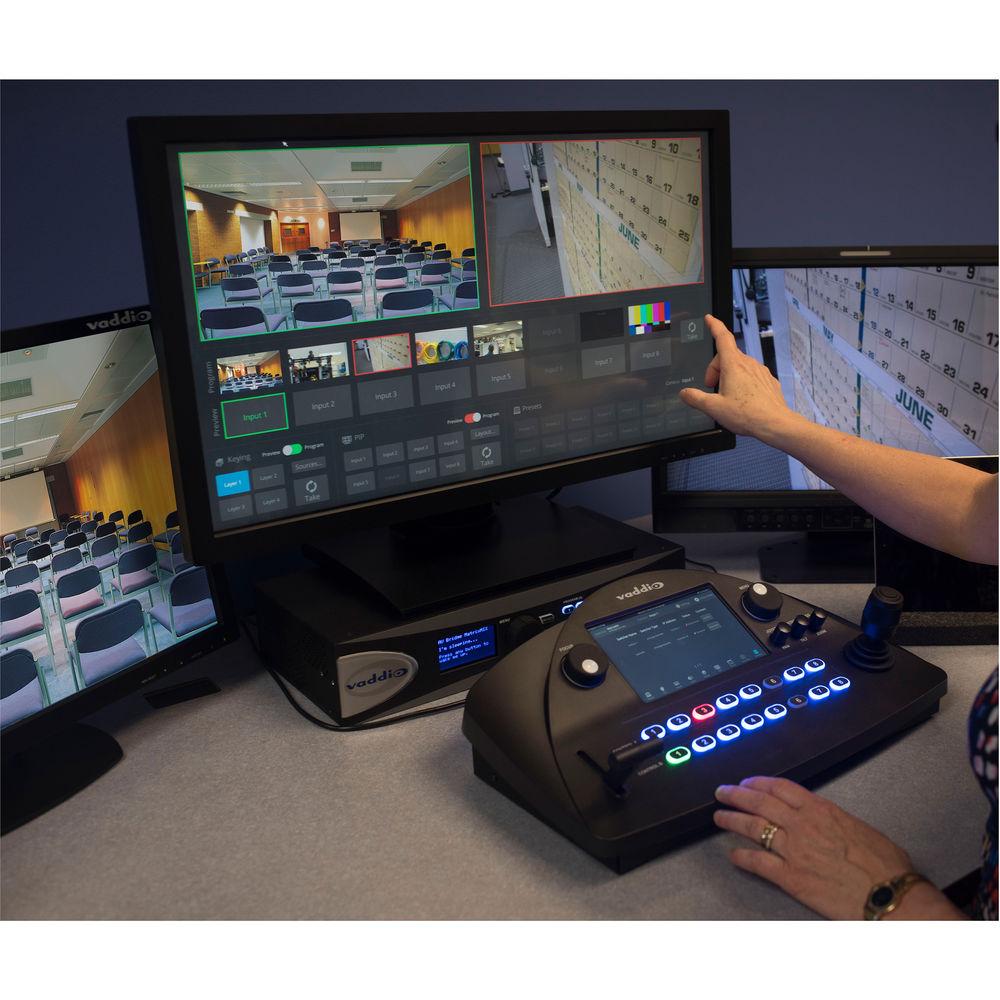

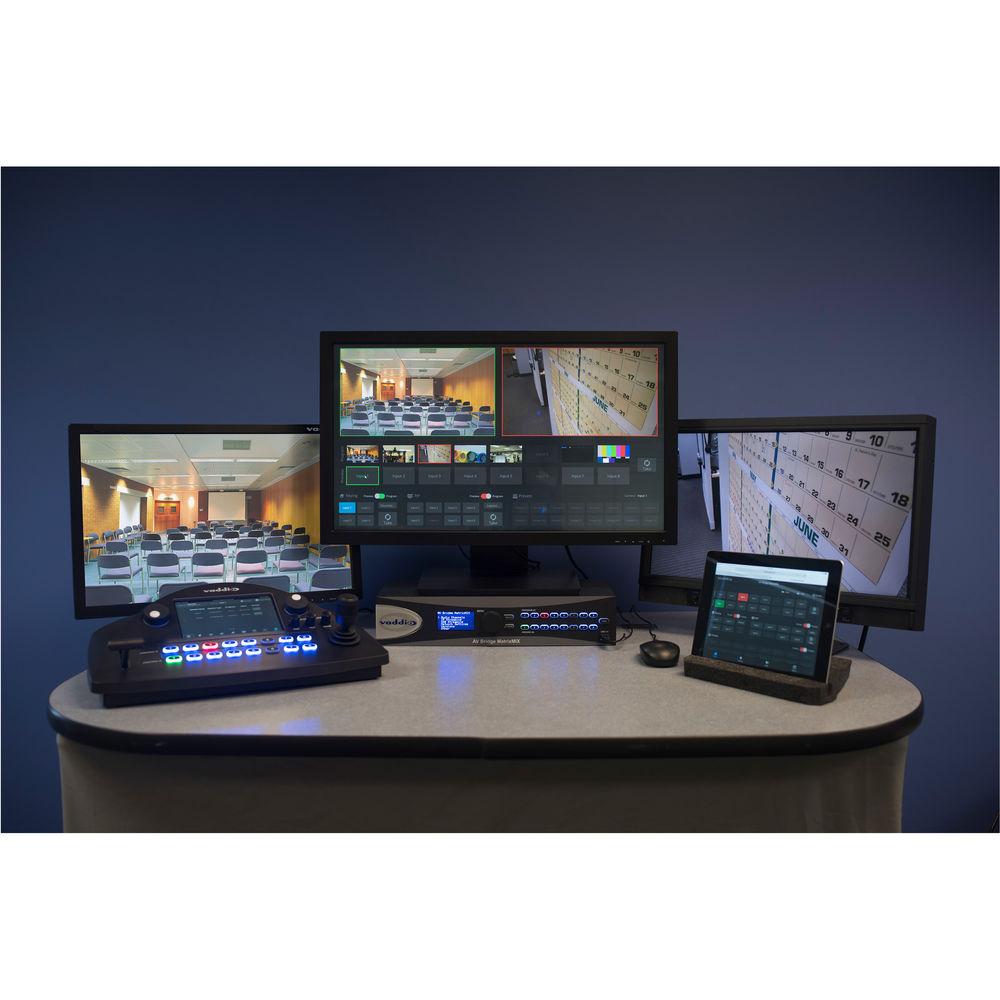

The system's PCC MatrixMIX Camera Controller and TeleTouch 27 USB Touch-Screen Multiviewer, plus Vaddio cameras, audio devices or trigger sensors, you can create customized solutions for a number of specific applications.
- Key Features
-
- 8x2 video mixer that also provides multiviewer output
- 11x7 audio mixer supports analog, HDMI, USB and IP audio channels
- Embedded RTSP IP and USB 3.0 output streaming
- Two graphic keying layers per output channel
Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio AV Bridge MatrixMIX Multipurpose AV Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

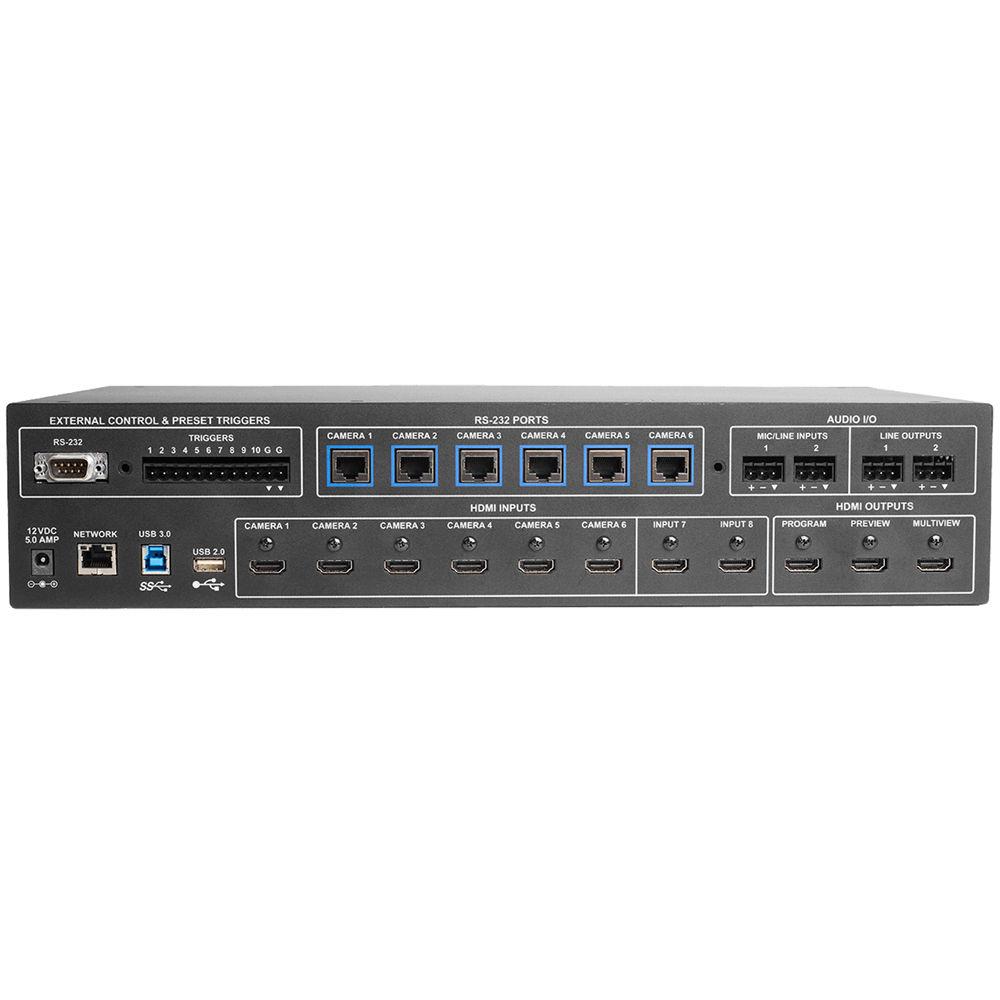

Technical parametersVaddio AV Bridge MatrixMIX Specs | | | Type | A/V switcher | | Width | 16.7 in | | Depth | 8 in | | Height | 3.5 in | | Weight | 9.15 lbs | | | | Features | HDCP compliant, picture-in-picture support, H.264 codec support, USB video/audio streaming | | | | Low Voltage Power | DC 12 V | | | | Kit Content | (1) x power adapter | | | | Terminals | (2) x USB 2.0 - 4 pin USB type A
(1) x USB 3.0 - 9 pin USB Type B
(1) x network - RJ-45
(6) x serial - RJ-45 - RS-232
(8) x HDMI input - 19 pin HDMI Type A
(3) x HDMI output - 19 pin HDMI Type A
(2) x audio line-in / microphone - terminal block
(2) x audio line-out - terminal block
(10) x trigger - terminal block
(1) x serial - 9 pin D-Sub (DB-9) - RS-232 | | | | Min Operating Temperature | 32
