Product description The Cisco Codec Kit for OneLINK HDMI to Cisco Cameras from Vaddio provides an HDBaseT interface that extends HDMI video, codec over RS-232, and network over a single Cat6 cable to distances up to 328' from the camera interface EZIM to the OneLINK receiver device. The OneLINK Codec Kit lets you use the Cisco camera in larger rooms with the added flexibility of connecting to any cloud conferencing software.

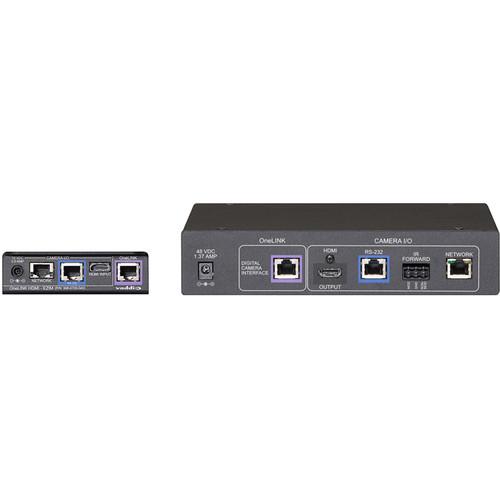

The system consists of a OneLINK EZIM camera interface at the camera location, and a OneLINK HDMI interface at the codec end. The EZIM provides the required camera connectivity and is mounted onto the back wall of a heavy-duty gusseted wall bracket with the included mounting accommodation for the Cisco camera.
The Cisco Codec kit comes with a mount and mounting hardware, two HDMI cables, two Ethernet cables, camera cable, and a power cable. In the Box Vaddio Cisco Codec Kit for OneLINK HDMI to Cisco Cameras 48V Power Supply with AC Cord Set Cat5 Cable (1') Cat5 Cable (3') Directional Cat5 Cable for Cisco PrecisionHD (1') Directional Cat5 Cable for Cisco SX20 (3') HDMI Cable (1') HDMI Cable (3') EIAJ-04 to 5.5x2.1 Power Cable for Camera (1') EZCamera RS-232 Control Adapter EZCamera Control Adapter For TANDBERG Codecs Thin-Profile Wall Mount Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio Cisco Codec Kit for OneLINK HDMI to Cisco Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVaddio 999-9560-000 Specs | Compatibility | Cisco Precision 60 PTZ camera
Cisco SX-80 codec | | Control Types | Ethernet and RS-232 | | Cabling | Single Cat5e or better cable between the OneLINK Interface and the OneLINK EZIM | | Transmission Range | 328' / 100 m over Cat5e | | Resolution | Up to 1080p60, 2160p30 | | Connectors | OneLINK HDMI Interface:
RJ45 shielded, interconnection
HDMI, video output
RJ45 shielded, Ethernet
RJ45 shielded, RS-232
2.5 x 5.5 mm DC barrel, power input
3-Pin Phoenix, IR forward
OneLINK EZIM:
RJ45 shielded, interconnection
HDMI, video input
RJ45 shielded, Ethernet
RJ45 shielded, RS-232
EIAJ-04, power output | | Mount | EZIM Flange Bolt Hole:
2 x Holes at 0.175" / 4.44 mm
2.5" / 63.5 mm on-center spacing | | Power Supply | 48 VDC, 1.36 A | | Dimensions | OneLINK HDMI Interface:
1.7 x 8.4 x 6.0" / 43.7 x 212.7 x 152.4 mm
OneLINK EZIM
3.9 x 4.3 x 1.2" / 98.1 x 109.5 x 31.5 mm | | Weight | OneLINK HDMI Interface:
1.6 lb / 703 g
OneLINK EZIM:
0.6 lb / 250 g | | | | Package Weight | 10.7 lb | | Box Dimensions (LxWxH) | 13.1 x 10.2 x 6.9" |
