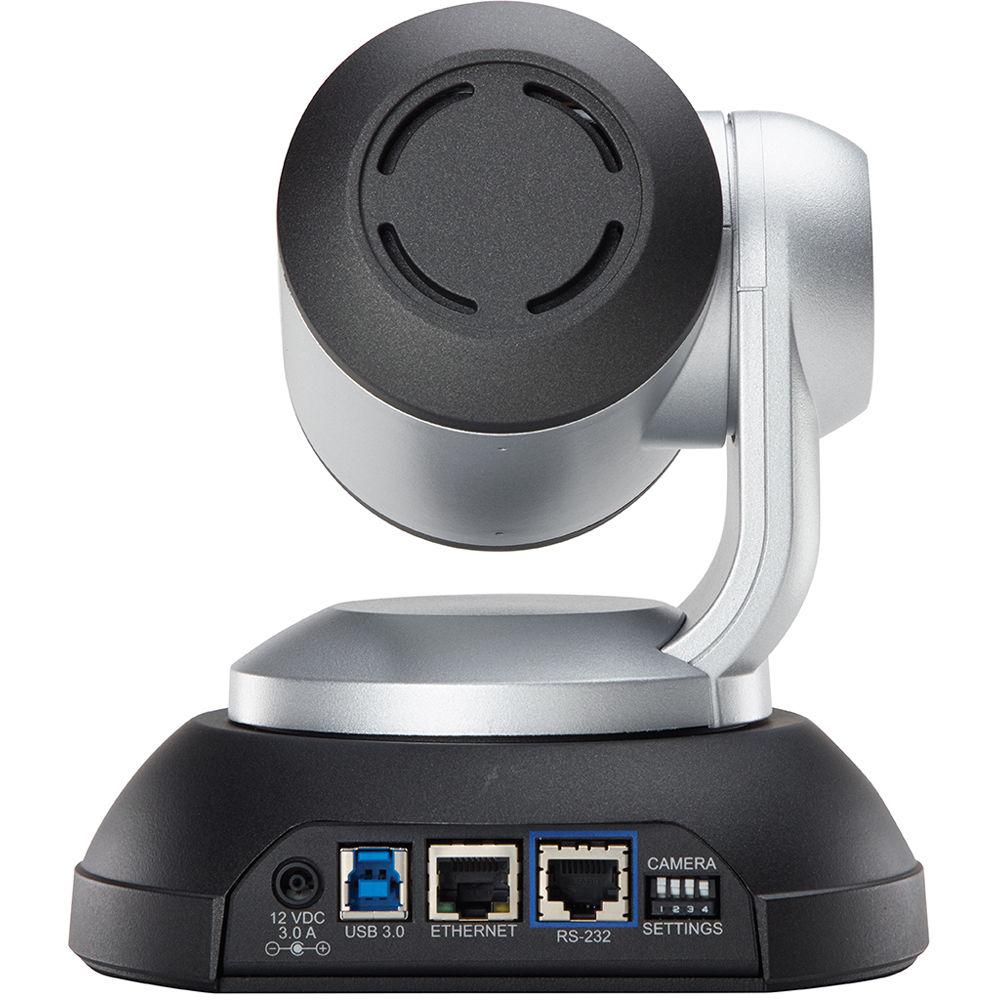

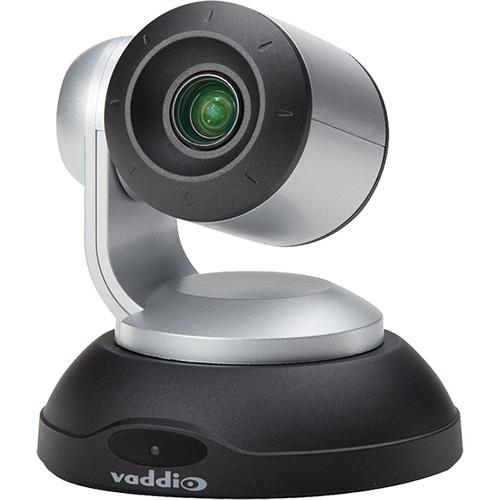

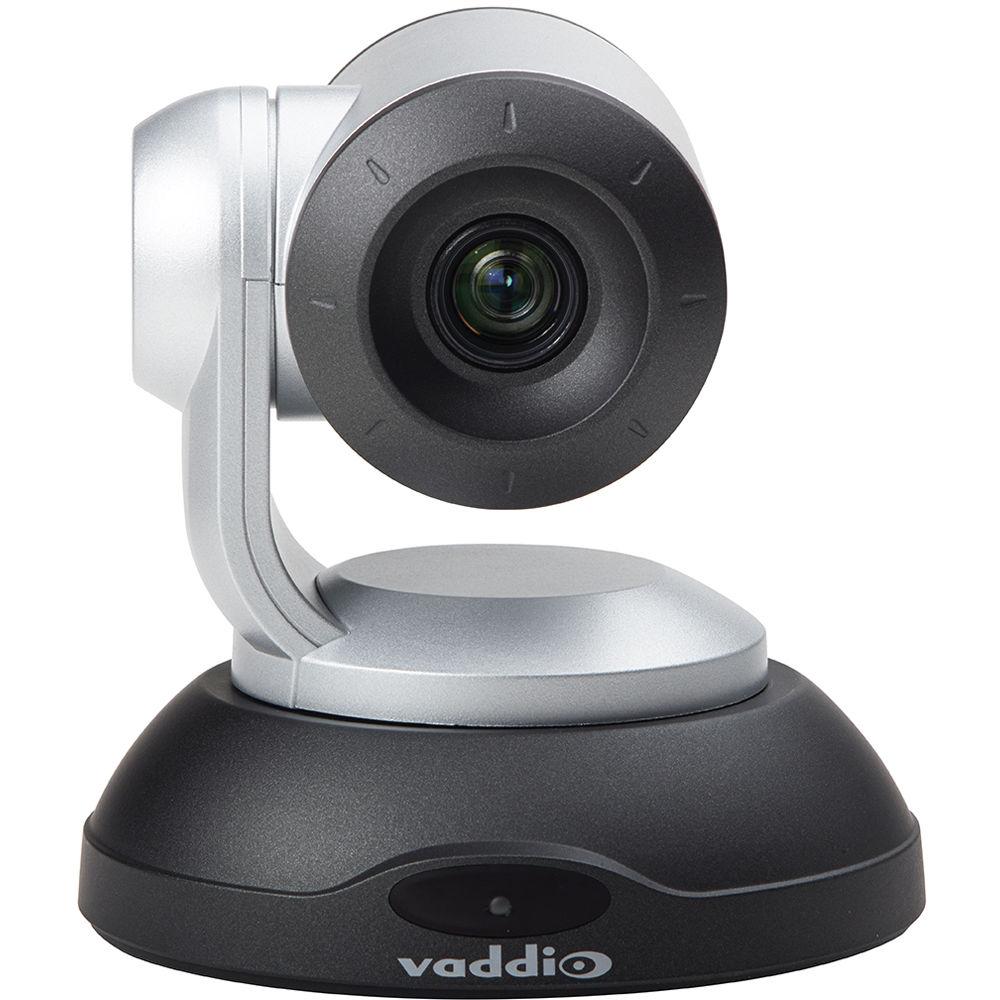

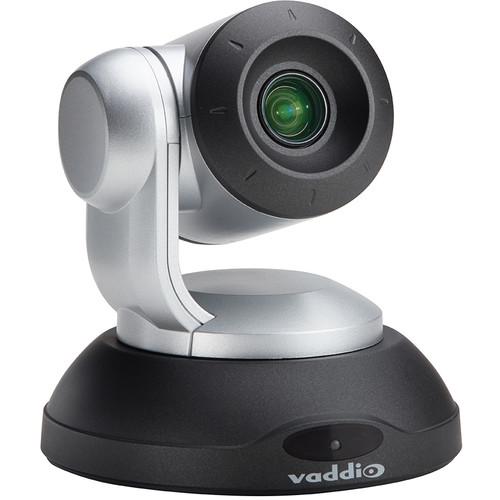

User Manual for Vaddio ClearSHOT 10 USB 3.0 PTZ Conferencing Camera Click to enlarge the picture
Contents of the user manual for the Vaddio ClearSHOT 10 USB 3.0 PTZ
- Product category: PTZ Cameras Vaddio
- Brand: Vaddio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vaddio PTZ Cameras
|
User manual for the Vaddio ClearSHOT 10 USB 3.0 PTZ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vaddio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vaddio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vaddio product will considerably shorten its lifespan!
|
Product description The silver/black ClearSHOT 10 USB Camera from Vaddio is an HD PTZ conferencing camera with high-quality imaging and color reproduction. With simultaneous and individual USB 3.0 uncompressed and IP (H.264) streaming video outputs, this camera's Exmor 1/2.8” Full HD CMOS low noise sensor produces vivid and realistic color with razor sharp auto-focus image capture. The ClearSHOT 10 USB has an Ethernet port for IP (H.264) streaming and a built-in web server, which allows the user to control the camera's functions via an internal web page from any browser, anywhere over the IP network, while watching the RTSP format video stream with H.264 compression. With a 74° wide horizontal field-of-view and 10x optical zoom, the camera provides flexibility in a variety of applications. These include small to medium-sized conference and huddle rooms, as well as corporate, healthcare, government, and education environments. - 2.14MP, Full HD (native 1080p/60) image sensor
- 10x Optical zoom, horizontal field of view of 74° in super-wide mode
- Suitable for huddle rooms and small-to-medium conference rooms in corporate, healthcare, government, and education environments
- Simultaneous uncompressed USB 3.0 and IP (H.264) streaming outputs
- UVC (Universal Video Class) drivers supported in Windows, Mac OS, and Linux operating systems compatible with most UC conferencing applications
- Precise pan and tilt movements at up to 90° per second
- IR remote control included
- Full administrative control from your browser via web interface
- Integration-ready Telnet or serial RS-232 control
In the Box Vaddio ClearSHOT 10 USB 3.0 PTZ Conferencing Camera (Silver/Black) IR Remote Commander 12 VDC, 3A Switching Power Supply AC Cord Set Thin-Profile Wall Mount with Hardware EZCamera Control Adapter USB 3.0 Type A to Type B 6' Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio ClearSHOT 10 USB 3.0 PTZ Conferencing Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVaddio ClearSHOT 10 Specs | Image Device | 1/2.8" Type Exmor CMOS sensor | Pan/Tilt | Angle and Speed: ± 170°, up to 90°/sec +90° -30°, up to 90°/sec | Lens | F = 3.8mm to 38mm, F1.8 to F3.4, 10x optical zoom, 67.0° wide to 7.6° tele | Field of view (FOV) | Horizontal: Super-wide: 11x optical zoom, 74° wide to 7.6° tele, f = 3.8mm to 41.8mm, F1.8 to F3.4 | Minimum Working Distance | 10 mm (wide), 1.0 m (tele) | Minimum Illumination | Recommended: >100 lux | Pixels | 2.14 million (effective) | Aperture | 16 steps (via all remote management interfaces) | Gain | Auto or manual | Backlight Compensation | On or off | White Balance | Auto, manual, one-push | Focusing System | Auto or manual | Noise Reduction | On or off | Sync System | Internal | Signal to Noise Ratio | Over 50 dB | Power | 12 VDC, 3.0 A switching power supply | Remote Management | Web interface (Chrome, Firefox, Safari, Internet Explorer 8 through 11), Telnet, RS-232 API (modified VISCA) | | Outputs | H.264, RTSP USB 3.0, UVC, YUY2 | Aspect Ratio | Depends on video resolution | Video Resolution | IP: 1080p 30 / 25 / 15 720p 60 / 30 / 25 / 15 704 x 576p 60 / 30 / 25 / 15 720 x 480p 60 / 30 / 25 / 15 640 x 480p 60 / 30 / 25 / 15 360p 60 / 30 / 25 / 15 352 x 288p 60 / 30 / 25 / 15 USB 3.0: 1080p 30 / 15 720p 60 / 30 / 15 USB 2.0 and 3.0: 960 x 540p 30 / 15 848 x 480p 30 / 15 360p 60 / 30 / 15 424 x 240p 30 / 15 320 x 240p 30 / 15 180p 30 / 15 All USB resolutions uncompressed | Streaming | IP (H.264), RTSP + USB 3.0 (UVC) IP and USB streams are simultaneous and can be sent at differing resolutions. | | Operating Temperature | 32 to 104°F (0 to 40°C) | Operating Humidity | 20 to 80% RH | Storage Temperature | 23 to 140°F (-5 to 60°C) | Storage Humidity | 20 to 80% RH | | Dimensions (H x W x D) | 6.3 x 6.1 x 5.5" (16.0 x 15.5 x 14.0 cm) | Weight | 3 lb (1.4 kg) | | Package Weight | 8.5 lb | Box Dimensions (LxWxH) | 13.5 x 12.3 x 11.8" |
