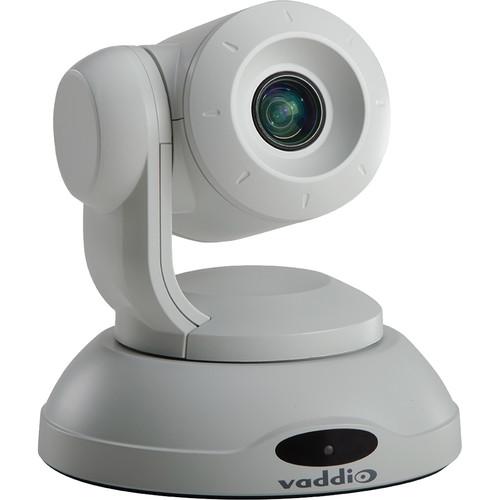

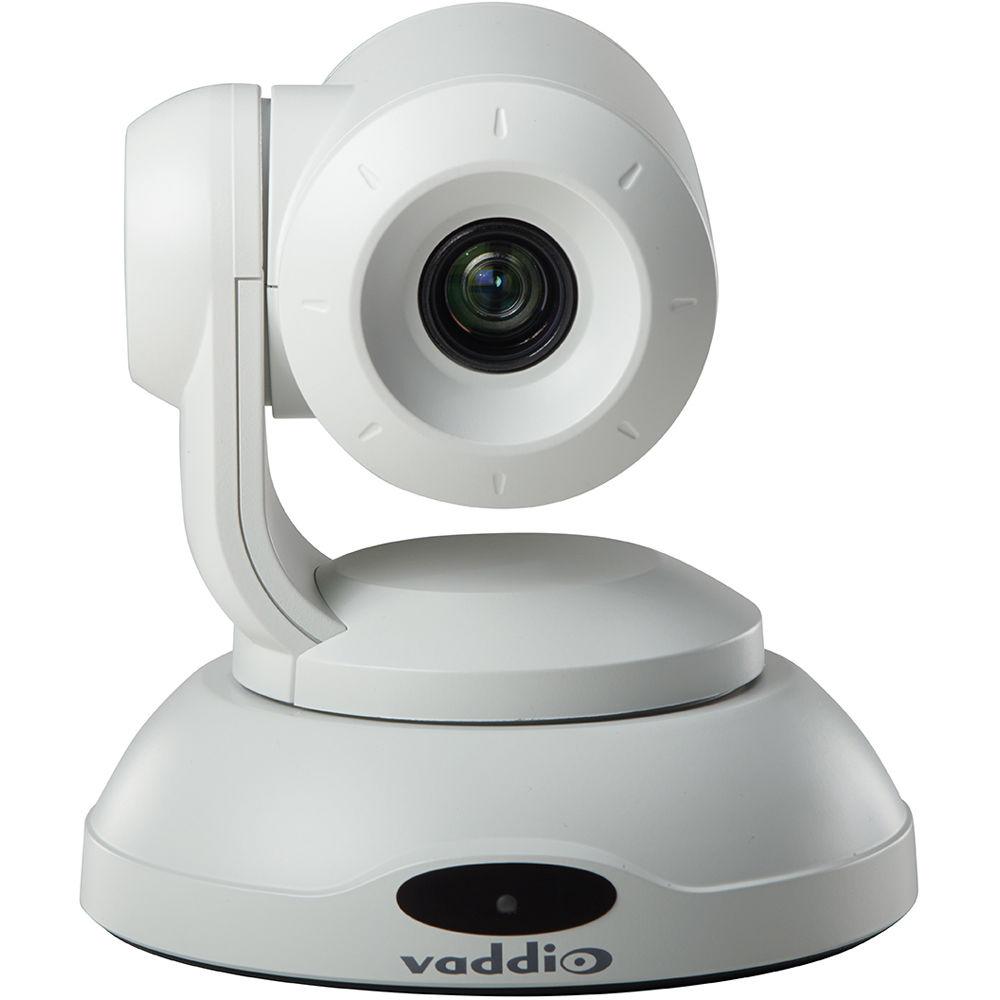

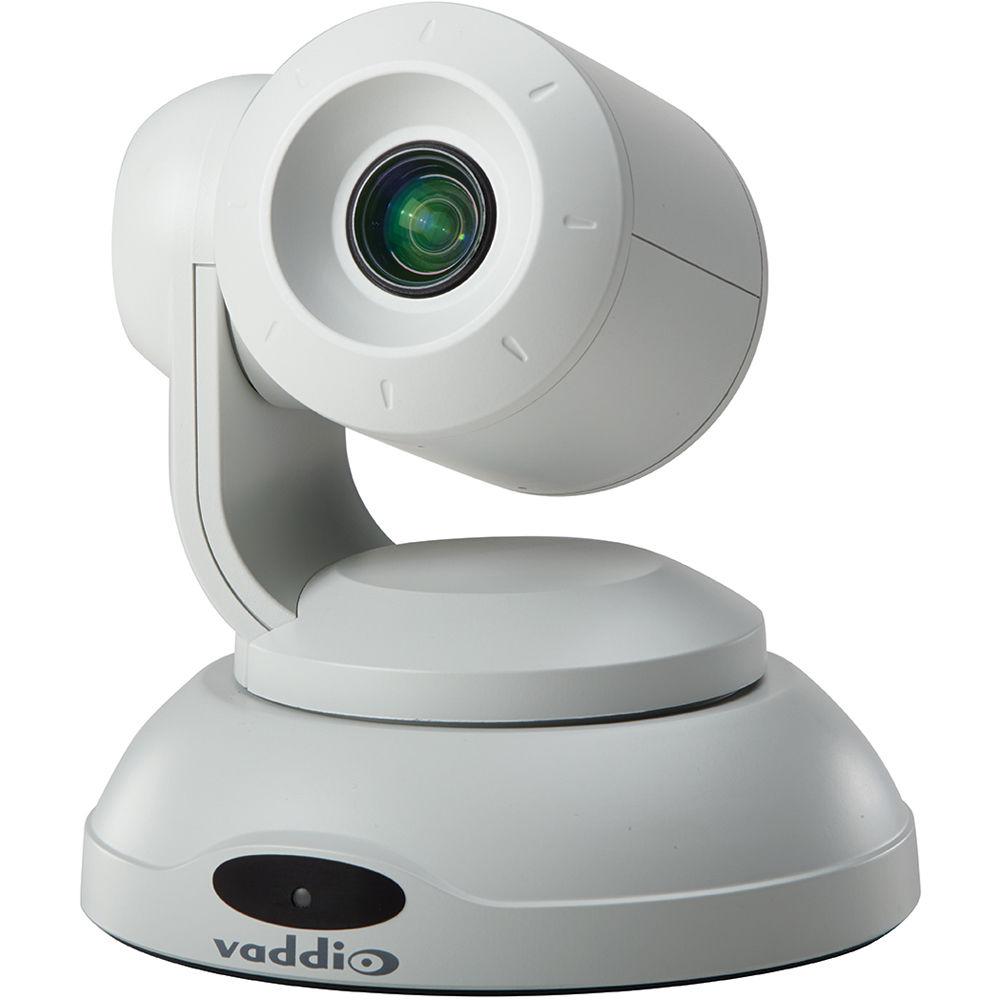

Product description The white ClearSHOT 10 USB Camera from Vaddio is an HD PTZ conferencing camera with high-quality imaging and color reproduction. With simultaneous and individual USB 3.0 uncompressed and IP (H.264) streaming video outputs, this camera's Exmor 1/2.8” Full HD CMOS low noise sensor produces vivid and realistic color with razor sharp auto-focus image capture.

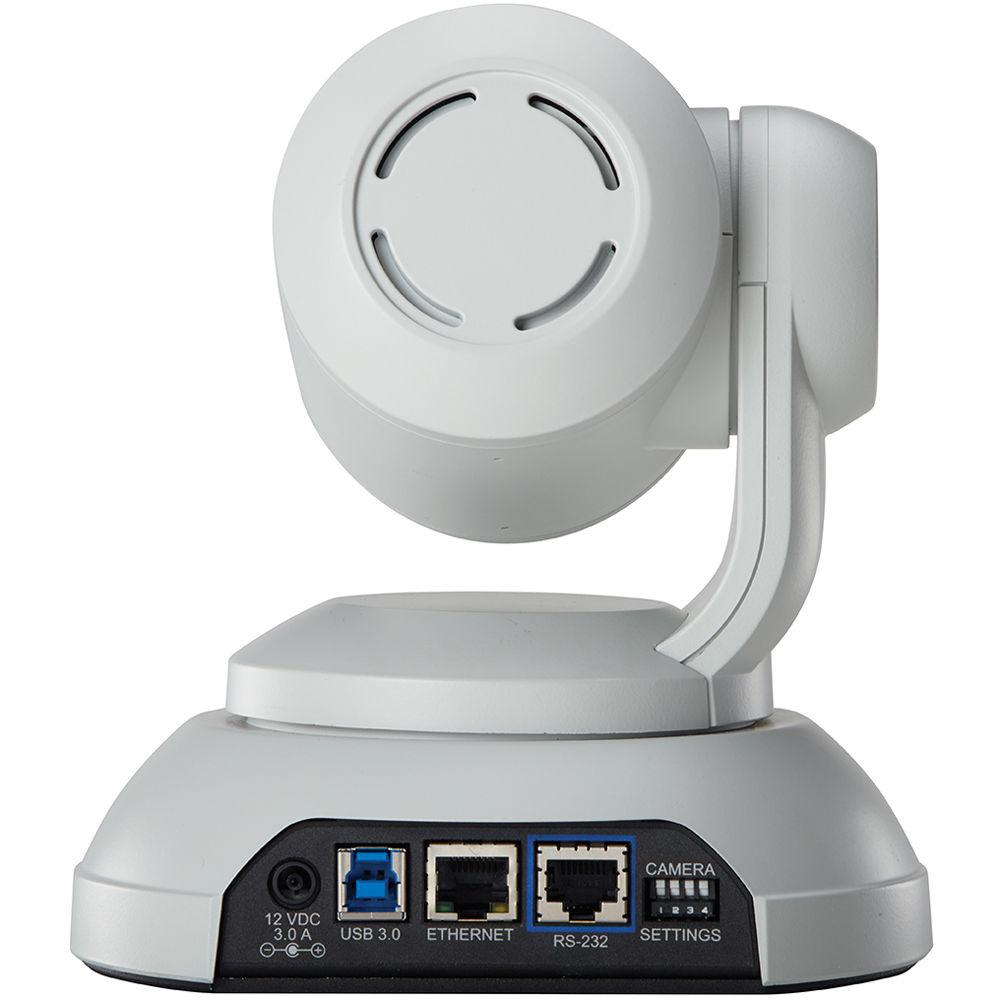

The ClearSHOT 10 USB has an Ethernet port for IP (H.264) streaming and a built-in web server, which allows the user to control the camera's functions via an internal web page from any browser, anywhere over the IP network, while watching the RTSP format video stream with H.264 compression. With a 74° wide horizontal field-of-view and 10x optical zoom, the camera provides flexibility in a variety of applications. These include small to medium-sized conference and huddle rooms, as well as corporate, healthcare, government, and education environments. - 2.14MP, Full HD (native 1080p/60) image sensor
- 10x Optical zoom, horizontal field of view of 74° in super-wide mode
- Suitable for huddle rooms and small-to-medium conference rooms in corporate, healthcare, government, and education environments
- Simultaneous uncompressed USB 3.0 and IP (H.264) streaming outputs
- UVC (Universal Video Class) drivers supported in Windows, Mac OS, and Linux operating systems compatible with most UC conferencing applications
- Precise pan and tilt movements at up to 90° per second
- IR remote control included
- Full administrative control from your browser via web interface
- Integration-ready Telnet or serial RS-232 control
In the Box Vaddio ClearSHOT 10 USB 3.0 PTZ Conferencing Camera (White) IR Remote Commander 12 VDC, 3A Switching Power Supply AC Cord Set Thin-Profile Wall Mount with Hardware EZCamera Control Adapter USB 3.0 Type A to Type B 6' Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio ClearSHOT 10 USB 3.0 PTZ Conferencing Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVaddio ClearSHOT 10 Specs | | | Image Device | 1/2.8" Type Exmor CMOS sensor | | Pan/Tilt | Angle and Speed:
± 170°, up to 90°/sec
+90° -30°, up to 90°/sec | | Lens | F = 3.8mm to 38mm, F1.8 to F3.4, 10x optical zoom, 67.0° wide to 7.6° tele | | Field of view (FOV) | Horizontal:
Super-wide: 11x optical zoom, 74° wide to 7.6° tele, f = 3.8mm to 41.8mm, F1.8 to F3.4 | | Minimum Working Distance | 10 mm (wide), 1.0 m (tele) | | Minimum Illumination | Recommended: >100 lux | | Pixels | 2.14 million (effective) | | Aperture | 16 steps (via all remote management interfaces) | | Gain | Auto or manual | | Backlight Compensation | On or off | | White Balance | Auto, manual, one-push | | Focusing System | Auto or manual | | Noise Reduction | On or off | | Sync System | Internal | | Signal to Noise Ratio | Over 50 dB | | Power | 12 VDC, 3.0 A switching power supply | | Remote Management | Web interface (Chrome, Firefox, Safari, Internet Explorer 8 through 11), Telnet, RS-232 API (modified VISCA) | | | | Outputs | H.264, RTSP USB 3.0, UVC, YUY2 | | Aspect Ratio | Depends on video resolution | | Video Resolution | IP:
1080p 30 / 25 / 15
720p 60 / 30 / 25 / 15
704 x 576p 60 / 30 / 25 / 15
720 x 480p 60 / 30 / 25 / 15
640 x 480p 60 / 30 / 25 / 15
360p 60 / 30 / 25 / 15
352 x 288p 60 / 30 / 25 / 15
USB 3.0:
1080p 30 / 15
720p 60 / 30 / 15
USB 2.0 and 3.0:
960 x 540p 30 / 15
848 x 480p 30 / 15
360p 60 / 30 / 15
424 x 240p 30 / 15
320 x 240p 30 / 15
180p 30 / 15
All USB resolutions uncompressed | | Streaming | IP (H.264), RTSP + USB 3.0 (UVC)
IP and USB streams are simultaneous and can be sent at differing resolutions. | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 20 to 80% RH | | Storage Temperature | 23 to 140°F (-5 to 60°C) | | Storage Humidity | 20 to 80% RH | | | | Dimensions (H x W x D) | 6.3 x 6.1 x 5.5" (16.0 x 15.5 x 14.0 cm) | | Weight | 3 lb (1.4 kg) | | | | Package Weight | 8.8 lb | | Box Dimensions (LxWxH) | 13.5 x 12.2 x 11.7" |
