User Manual for Vaddio ConferenceSHOT AV PTZ Camera Click to enlarge the picture
Contents of the user manual for the Vaddio ConferenceSHOT AV PTZ Camera
- Product category: PTZ Cameras Vaddio
- Brand: Vaddio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vaddio PTZ Cameras
|
User manual for the Vaddio ConferenceSHOT AV PTZ Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vaddio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vaddio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vaddio product will considerably shorten its lifespan!
|

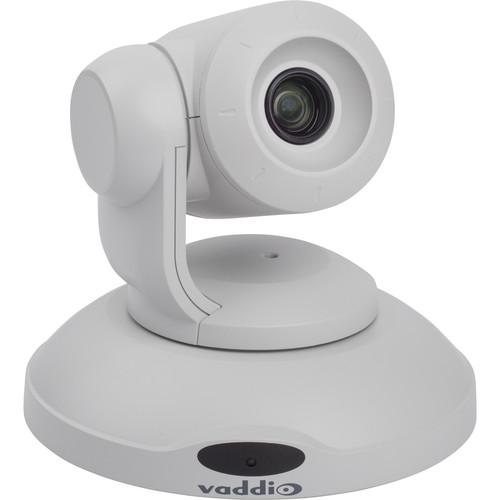

Product description This white ConferenceSHOT AV PTZ Camera from Vaddio is suitable for use in conference rooms from small to medium. It captures and transmits video from 180p to 1920 x 1080p at 30p over USB 3.0, and 180p to 1920 x 1080p at up to 60p while IP streaming from a single 1/2.8"-type Exmor sensor. Featuring a 10x optical zoom and 11x Super-Wide optical zoom, the camera has a 67/74° angle of view at wide, with a 7.6° angle of view when zoomed in all the way.
The camera simultaneously outputs UVC video over USB 3.0 and streams IP video (H.264) using RTSP protocols. You can control the camera from a networked computer via the Ethernet port, and an included IR remote provides local control. Audio is handled via optional external mics (not included). - The camera's outputs are active at all times, so there is no need to select one output over another. This also allows you to output to more than one display device or recorder at the same time. The built-in IP streaming simplifies streaming your video over a network.
- PoE+ provides power over an Ethernet cable, so you are not limited where you can mount the camera by needing an AC outlet. You can mount this camera wherever you can run an Ethernet cable.
- The camera features a built-in web based interface for control via your browser.
- Two EasyMIC ports allow you to connect two Vaddio EasyMIC microphones (not included).
In the Box Vaddio ConferenceSHOT AV PTZ Camera (White) Vaddio IR Remote Commander PoE+ Power Injector Thin Profile Wall Mount Ethernet Cable (10') USB Cable (6') 4-Position Phoenix-Style Connector Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio ConferenceSHOT AV PTZ Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVaddio ConferenceSHOT AV Specs | | | Sync System | Internal | | Sensor | 1/2.8"-type Exmor R CMOS | | Pixels | Effective: 2.14 MP | | Minimum Illumination | 100+ Lux recommended | | Aperture | f/1.8 to f/3.4 | | Focal Length | Standard: 3.8 to 38mm
Super-Wide: 3.8 to 41.8mm | | Zoom | Standard: 10x (optical)
Super-Wide: 11x | | Horizontal Field of View (degree) | Standard: 67° wide to 7.6° tele
Super-Wide: 74° wide to 7.6° tele | | Focusing | Auto Focus
Manual Focus Mode | | Minimum Focus Distance | Wide: 0.4" / 10 mm
Tele: 3.28' / 1 m | | White Balance | Auto
One-Push
Manual | | Aperture/Detail | 16 Steps | | Gain | Auto / Manual | | Backlight Compensation | On/Off | | Noise Reduction | On/Off | | S/N Ratio | Over 50 dB | | Output | USB 3.0 (UVC): 1080p to 180p at 60/30/15
Streaming: 1080p down to 180p 1080p at 30/25/15; others 60/30/25/15 | | | | Pan | Angle: -165 to 165°
Speed: up to 90° | | Tilt | Angle: +90 to -30°
Speed: up to 90° | | Control | Web interface
Telnet | | | | Connectors | PoE+: 1 x RJ45 (10/100/1000 Ethernet port)
USB 3.0: 1 x Type-B
EasyMic Ports: 2 x RJ45
Audio Output: 4-pin Phoenix-type terminal block | | Power | PoE+: 25 W | | Temperature & Humidity | Operating
32 to 104°F / 0 to 40°C
Storage
23 to 140°F / -5 to 60°C
Relative Humidity
20 to 80% RH (non-condensing) | | Dimensions | 6.3 x 6.1 x 5.5" / 16 x 15.49 x 13.97 cm | | Weight | 3.0 lb / 1.4 kg | | | | Package Weight | 10.3 lb | | Box Dimensions (LxWxH) | 13.6 x 12.0 x 11.8" |
