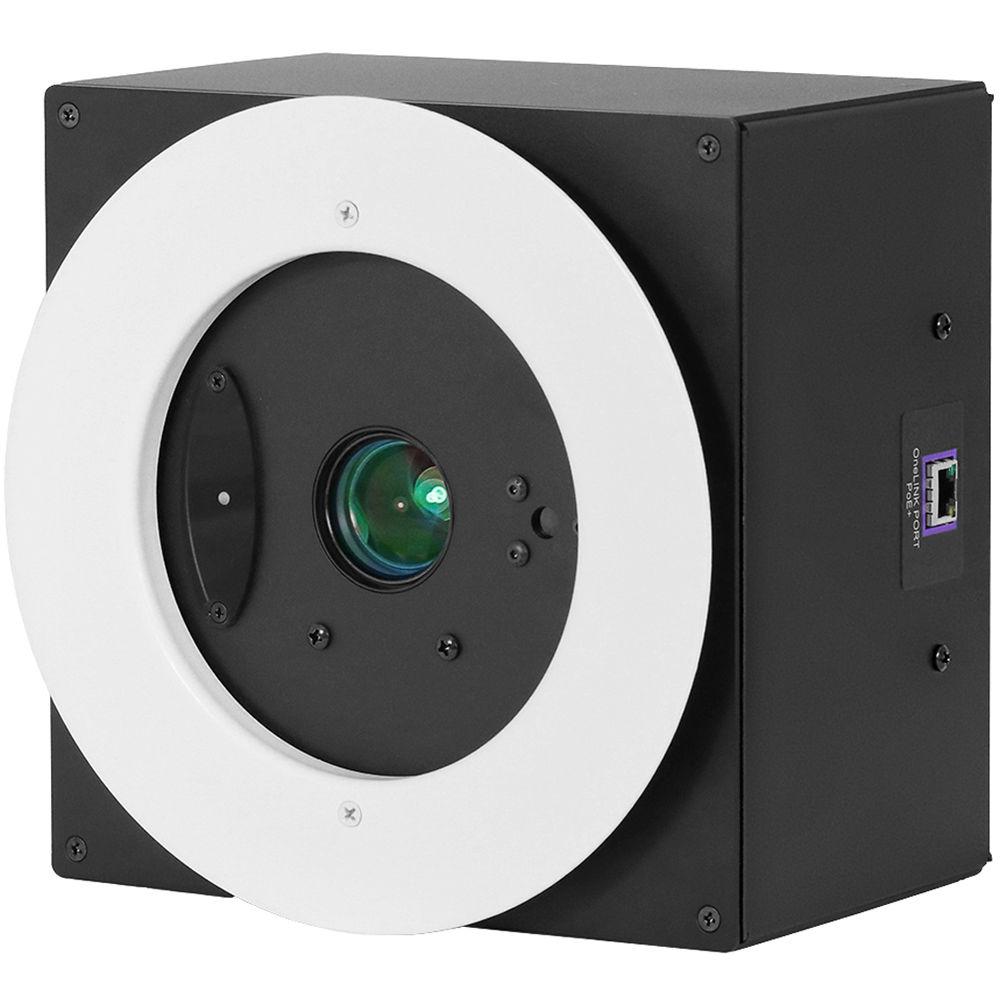

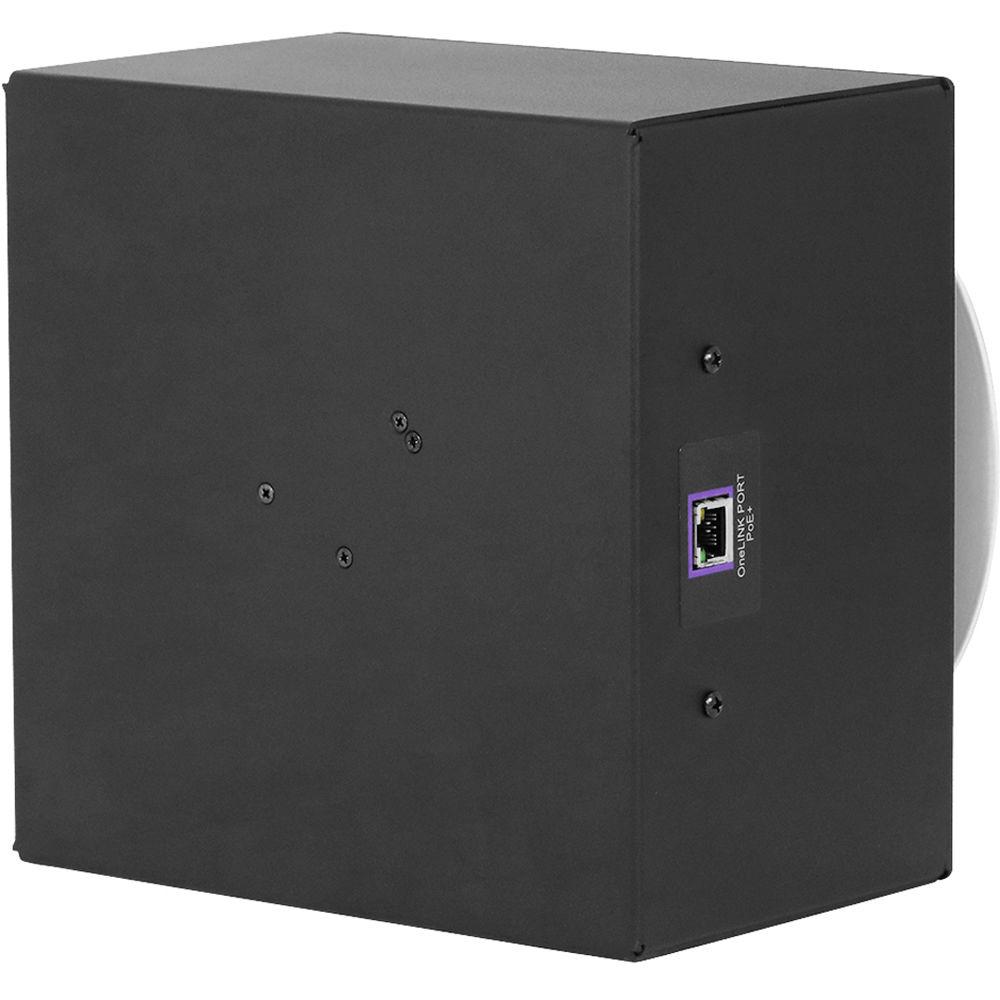

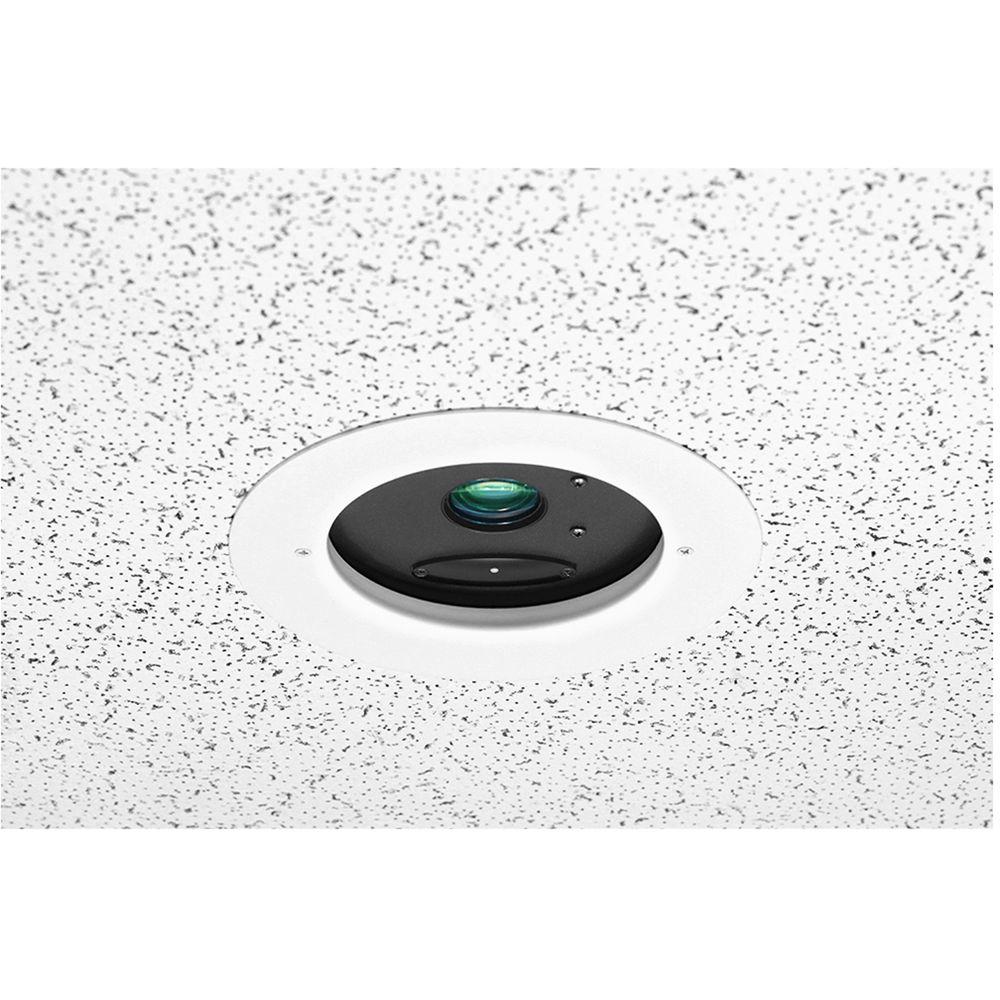

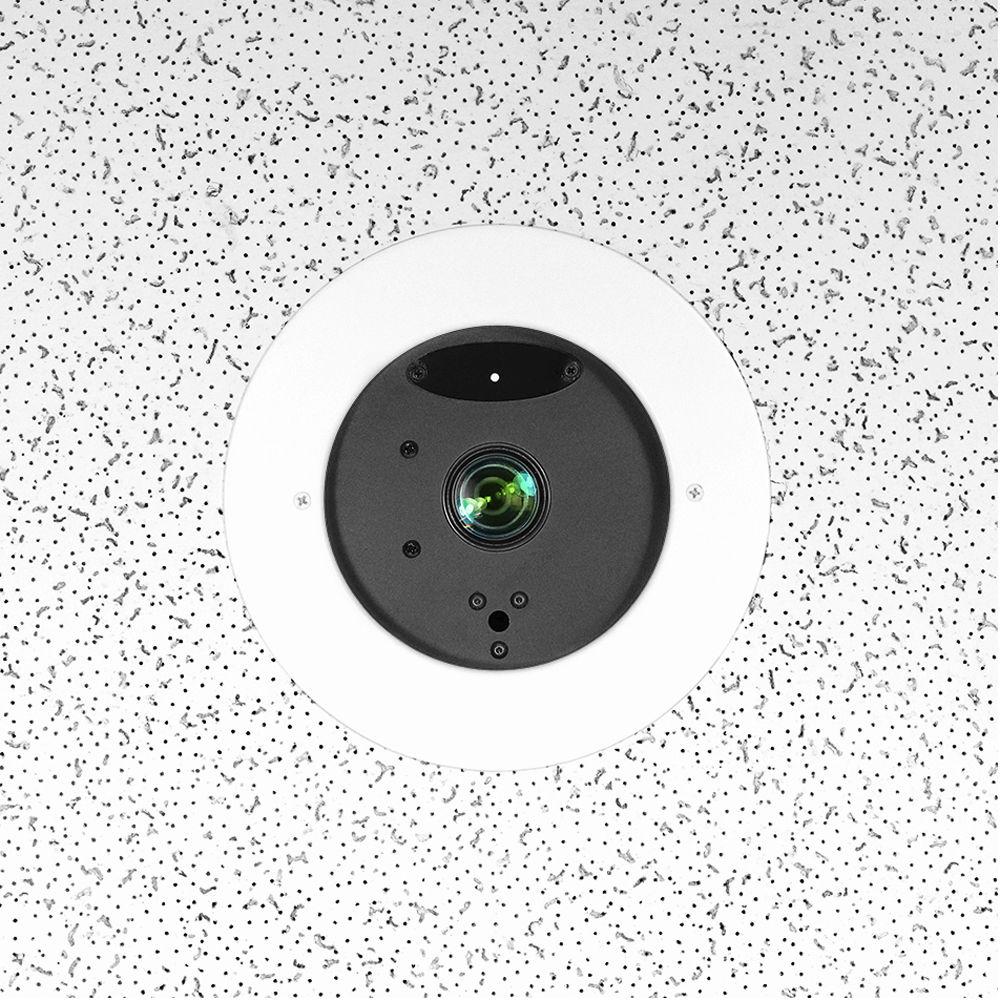

Product description The DocCAM 20 HDBT OneLINK Bridge System from Vaddio combines the DocCAM 20 HDBT document camera and the OneLINK Bridge interface. It is suitable for use in distance learning and corporate environments. The system captures 1920 x 1080 video at 60p from a single 1/2.8"-type Exmor sensor and transmits it up to 328' over CAT5e cable. The combination enables powering the camera, sending control signals, and transmitting video over a single Ethernet cable. - DocCAM 20 HDBT Ceiling-Mounted Document Camera The DocCAM 20 HDBT Ceiling-Mounted Camera from Vaddio is a high-definition, recessed in-ceiling document camera with a 1/2.8" Exmor CMOS sensor, a 20x optical zoom, full HD 1080p/60 fps resolution, and a 59.5° horizontal field of view. The DocCAM 20 HDBT features OneLINK/HDBaseT PoE+ connector. The camera can be controlled via the included IR remote control and has no physical switches. Hardware configuration is done via the web interface. The DocCAM is suitable for video conference calls, training sessions, and online learning courses. It can also be used with the OneLink Bridge AV interface (sold separately) to provide camera power, control and video from the camera to other devices, or it can be powered by any PoE+ third-party devices.
- Exmor 1/2.8 type, high-speed, low-noise image sensor for 2.38 megapixels total, full HD (native 1080p/60)
- 20x optical zoom with horizontal field of view from 60° (wide end) to 3.3° (tele end)
- Low-power laser pointer for centering
- Superior low-light performance (0.4 lux)
- Web interface for remote administration and operation, integration-ready Telnet and serial RS-232 control, presenter friendly IR remote control
- Use with a OneLINK HDMI and Bridge devices for power, video, and control

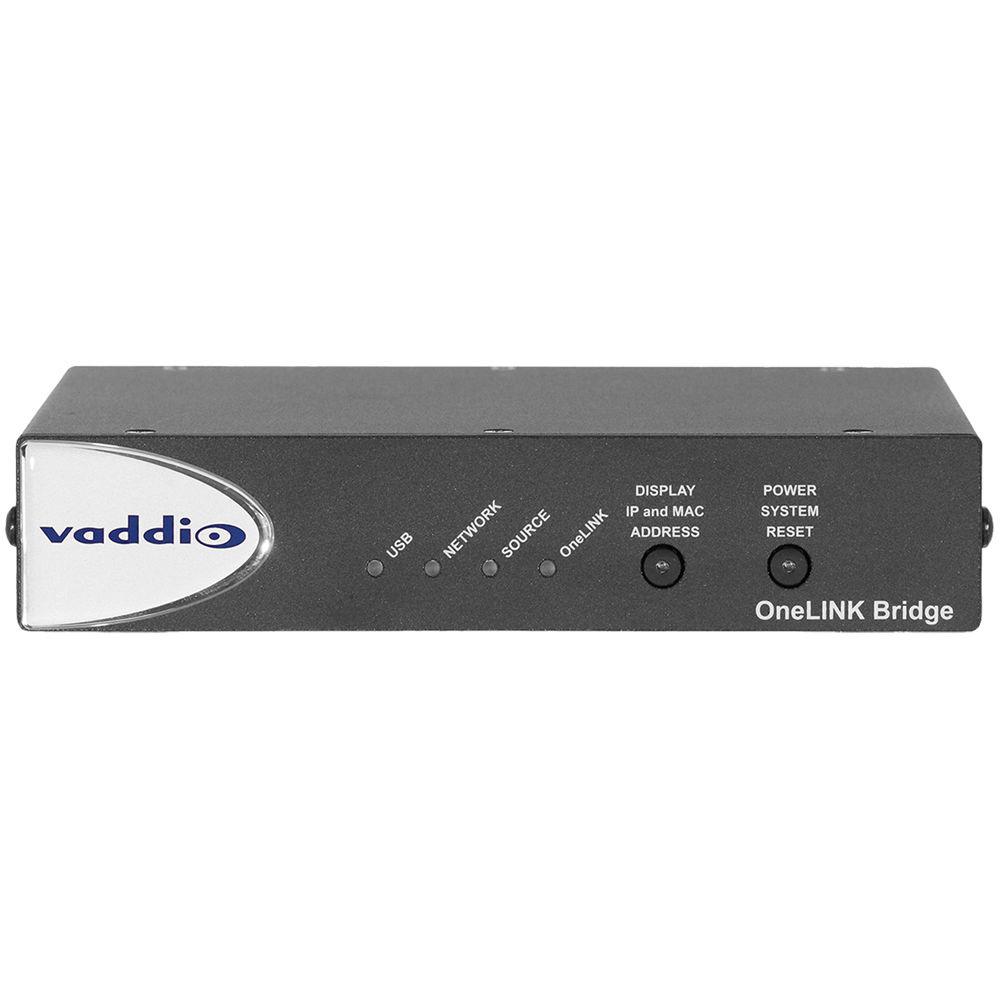

- OneLINK Bridge A/V Interface Receiver for HDBaseT Cameras (North America) The OneLINK Bridge A/V Interface Receiver from Vaddio connects a non-USB camera and audio source, and bridges to a USB stream for easy connection to USB-based conferencing applications such as Skype for Business, Google Hangouts, and Zoom. This OneLINK Bridge kit simplifies installation by extending power, video, and control to your Vaddio HDBaseT camera over a single Cat5e cable up to 328'.
- Converts any conference room to a BYOD environment, delivering a USB stream for soft conferencing clients
- Connects professional A/V equipment to PC applications via USB 3.0 media stream
- Simultaneous uncompressed USB 3.0, HDMI 1.4b, and 3 Gb/s HD-SDI
- Two balanced audio inputs and two balanced audio outputs
- Control via web interface or Telnet
In the Box Bundle Items DocCAM 20 HDBT Ceiling-Mounted Document Camera aerdfcsyfedtwqvvsubydysarqtzrzyatu - PoE+ Power Injector with AC Cord
OneLINK Bridge A/V Interface Receiver for HDBaseT Cameras (North America) - 4 x 3-Position 3.5mm Phoenix Plug
Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio DocCAM 20 HDBT OneLINK Bridge System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - DocCAM 20 HDBT Ceiling-Mounted Document Camera
| | | Sensor | 1/2.8" CMOS | | Sensor Resolution | 2 MP | | Zoom | 20x (Optical) | | Aperture | f/1.6 to 3.5 | | Frame Rate | 60 fps | | Output Resolution | 1920 x 1080 | | Minimum Focusing Distance | 0.4" / 10.0 mm | | | | I/O Connections | 1 x RJ45 | | I/O Connections | 1 x RJ45 | | Minimum Illumination | 0.4 lux | | Signal-to-Noise Ratio | 50 dBA | | | | Focal Length | 4.7 to 94 mm | | | | Focus Modes | Auto, Manual | | White Balance | ATW, Auto, Indoors, Manual, One Push, Outdoors | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 80% | | | | Dimensions | 4.3 x 8.0 x 8.0" / 10.8 x 20.3 x 20.3 cm | | Weight | 5 lb / 2.3 kg | - OneLINK Bridge A/V Interface Receiver for HDBaseT Cameras (North America)

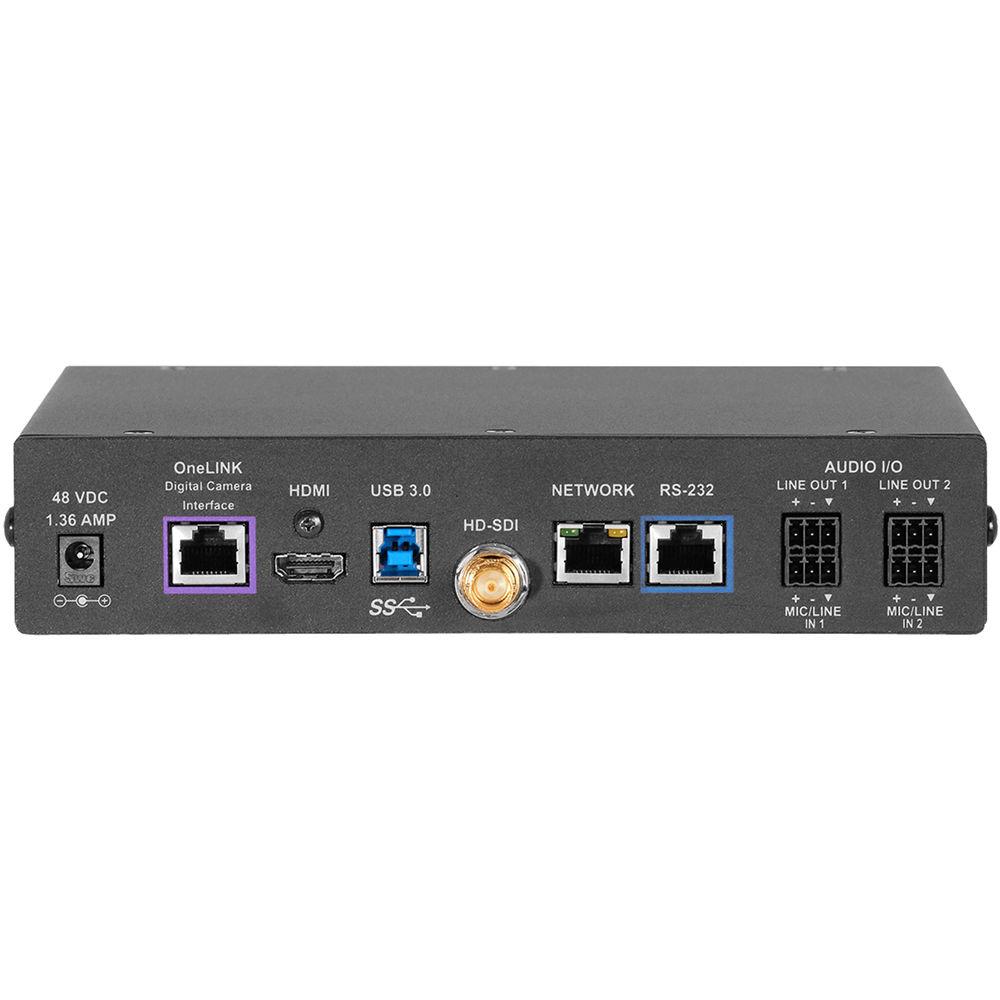

| Cable Run | Max: 328' / 100 m | | Resolution | Up to 1080p60 (Full HD) | | Connectors | 1 x HD-SDI input
1 x HDMI input
2 x Mic/Line audio inputs
1 x USB 3.0, video output with PCM audio
2 x Line audio outputs
1 x OneLINK digital camera interface
1 x Network, IP streaming and control
1 x RS-232, control
1 x Power port | | Control Features | Web interface for configuration via browser
Telnet API for third-party external control
USB Human Interface Device (HID) for room audio controls | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Power | 48 VDC, 1.36 A | | Dimensions | 1.7 x 8.4 x 6.0" / 4.4 x 21.3 x 15.2 cm | | Weight | 1.7 lb / 0.8 kg |
