User Manual for Vaddio DocCAM 20 HDBT OneLINK HDMI System Click to enlarge the picture
Contents of the user manual for the Vaddio DocCAM 20 HDBT OneLINK HDMI
- Product category: Video Presenters & Document Cameras Vaddio
- Brand: Vaddio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vaddio Video Presenters & Document Cameras
 |
User manual for the Vaddio DocCAM 20 HDBT OneLINK HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vaddio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vaddio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vaddio product will considerably shorten its lifespan!
|

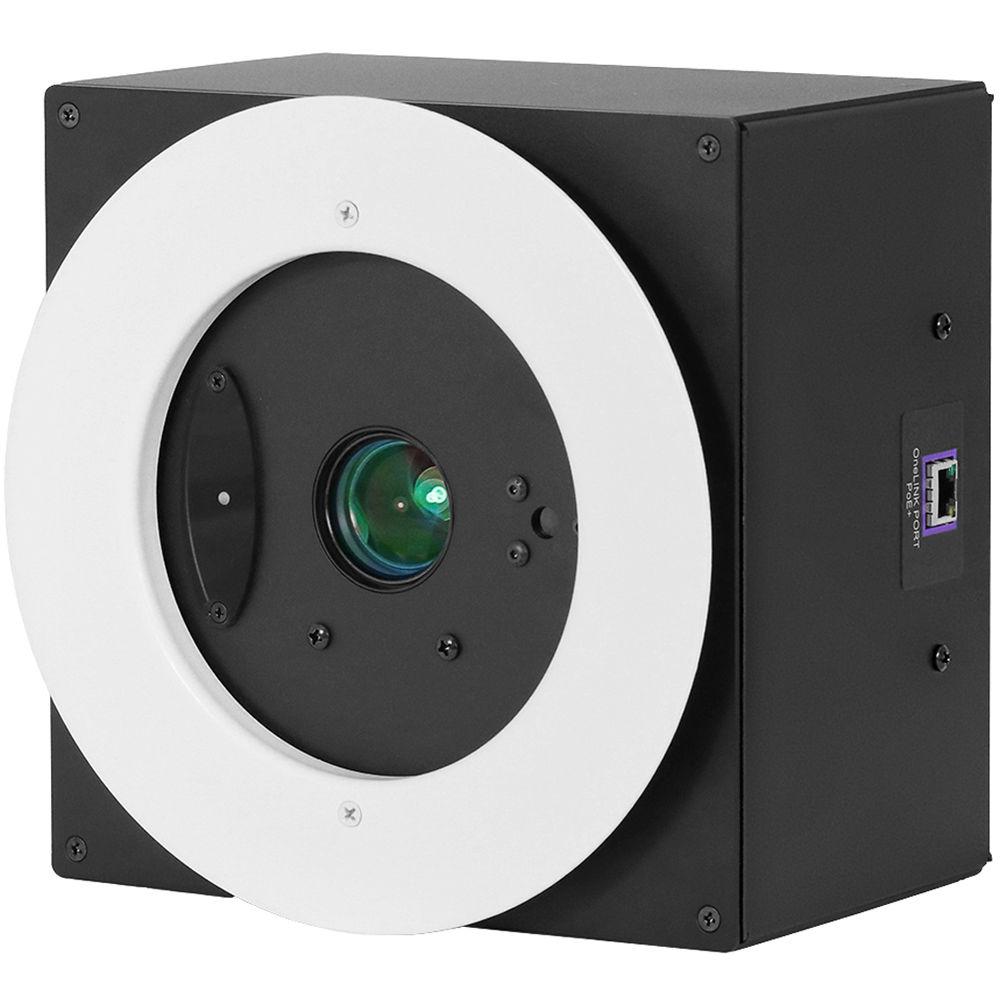

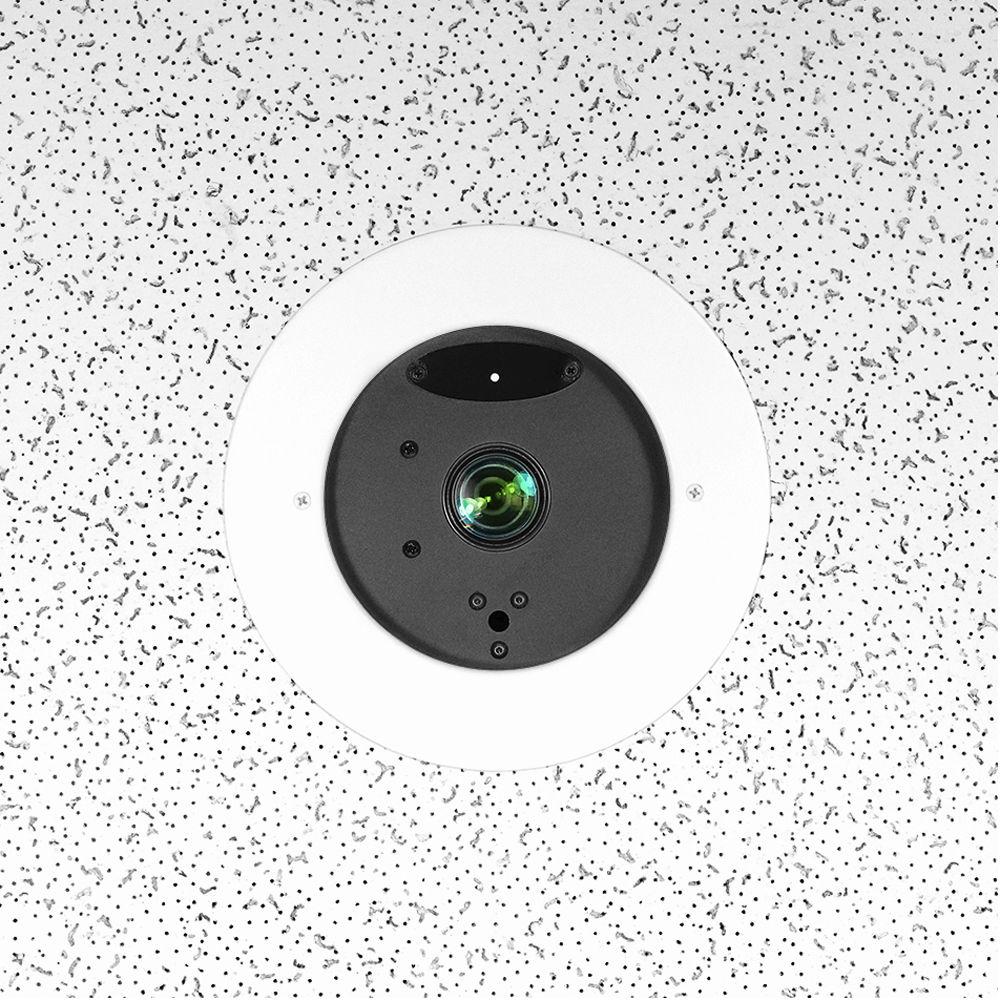

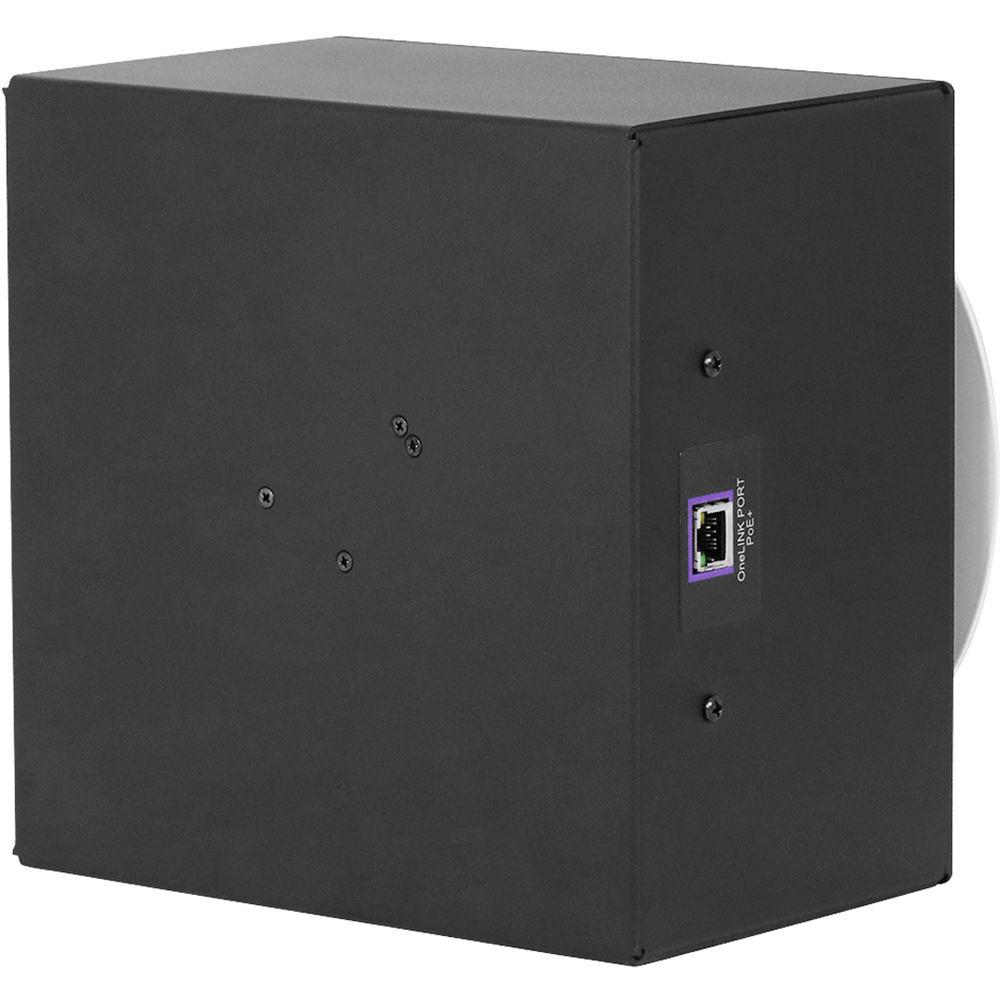

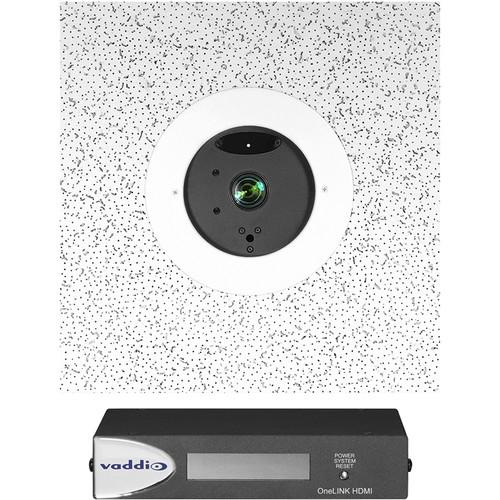

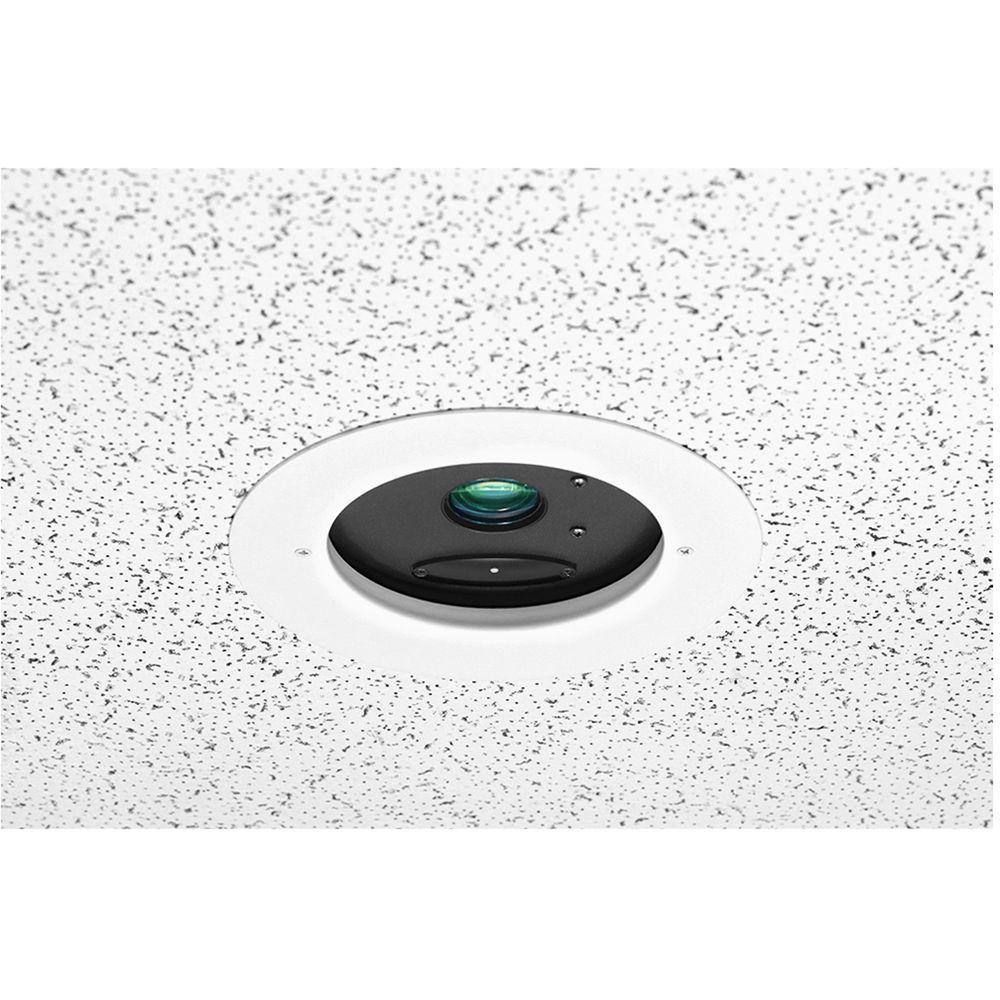

Product description The DocCAM 20 HDBT OneLINK HDMI System from Vaddio combines the DocCAM 20 HDBT document camera and the OneLINK HDMI interface. It is suitable for use in distance learning and corporate environments. The system captures 1920 x 1080 video at 60p from a single 1/2.8"-type Exmor sensor and transmits it up to 328' over CAT5e cable. The combination enables powering the camera, sending control signals, and transmitting video over a single Ethernet cable. - DocCAM 20 HDBT Ceiling-Mounted Document Camera The DocCAM 20 HDBT Ceiling-Mounted Camera from Vaddio is a high-definition, recessed in-ceiling document camera with a 1/2.8" Exmor CMOS sensor, a 20x optical zoom, full HD 1080p/60 fps resolution, and a 59.5° horizontal field of view. The DocCAM 20 HDBT features OneLINK/HDBaseT PoE+ connector. The camera can be controlled via the included IR remote control and has no physical switches. Hardware configuration is done via the web interface. The DocCAM is suitable for video conference calls, training sessions, and online learning courses. It can also be used with the OneLink Bridge AV interface (sold separately) to provide camera power, control and video from the camera to other devices, or it can be powered by any PoE+ third-party devices.
- Exmor 1/2.8 type, high-speed, low-noise image sensor for 2.38 megapixels total, full HD (native 1080p/60)
- 20x optical zoom with horizontal field of view from 60° (wide end) to 3.3° (tele end)
- Low-power laser pointer for centering
- Superior low-light performance (0.4 lux)
- Web interface for remote administration and operation, integration-ready Telnet and serial RS-232 control, presenter friendly IR remote control
- Use with a OneLINK HDMI and Bridge devices for power, video, and control

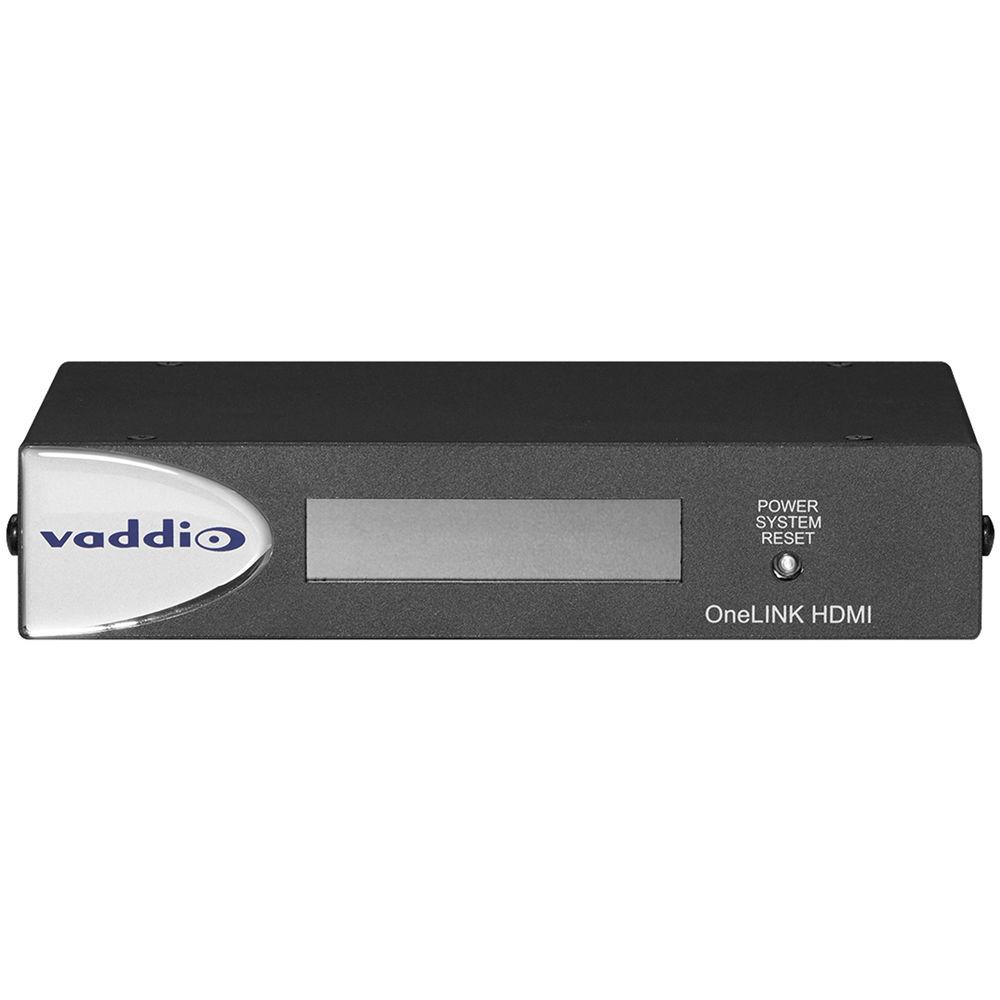

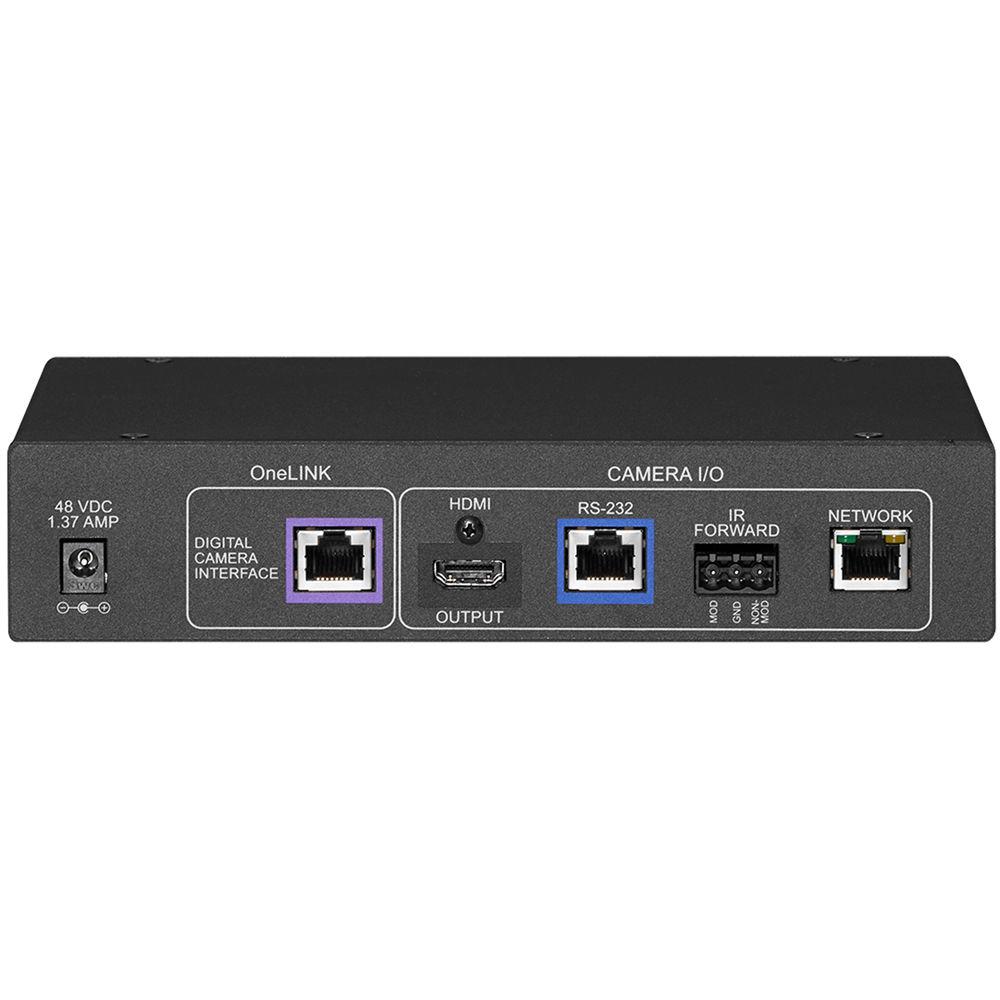

- OneLINK HDMI Extension System for HDBaseT Cameras The Vaddio OneLINK HDMI Extension System for HDBaseT Cameras is an interface that allows you to power, receive HDMI video from, and control your compatible HDBT camera using a single Ethernet cable up to 328' long. The interface connects to your network for control, or you can use an RS-232 controller (not included) instead. HDMI video, up to 1080p60, is transmitted from your HDBT compatible camera to the OneLINK interface, from where it is available over a standard HDMI port.
-
- Video, power, network, and control on a single Cat5e (or better) cable
- Supports cable runs up to 328'
- Works with RoboSHOT UHD HDBaseT cameras
- Bidirectional control via Ethernet and RS-232
- Transmits and receives HDMI video up to 1080p60
In the Box Bundle Items DocCAM 20 HDBT Ceiling-Mounted Document Camera vffrstxwrtdbz - PoE+ Power Injector with AC Cord
OneLINK HDMI Extension System for HDBaseT Cameras - 48 VDC, 1.36A Switching Power Supply
- EZCamera RS-232 Control Adapter
Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio DocCAM 20 HDBT OneLINK HDMI System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - DocCAM 20 HDBT Ceiling-Mounted Document Camera
| | | Sensor | 1/2.8" CMOS | | Sensor Resolution | 2 MP | | Zoom | 20x (Optical) | | Aperture | f/1.6 to 3.5 | | Frame Rate | 60 fps | | Output Resolution | 1920 x 1080 | | Minimum Focusing Distance | 0.4" / 10.0 mm | | | | I/O Connections | 1 x RJ45 | | I/O Connections | 1 x RJ45 | | Minimum Illumination | 0.4 lux | | Signal-to-Noise Ratio | 50 dBA | | | | Focal Length | 4.7 to 94 mm | | | | Focus Modes | Auto, Manual | | White Balance | ATW, Auto, Indoors, Manual, One Push, Outdoors | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 80% | | | | Dimensions | 4.3 x 8.0 x 8.0" / 10.8 x 20.3 x 20.3 cm | | Weight | 5 lb / 2.3 kg | - OneLINK HDMI Extension System for HDBaseT Cameras
| Cable Run | Max: 328' / 100 m | | Power | Input: 48 VDC, 1.36 A
To Camera: 12 VDC, 3 A | | Environmental | Operating/Storage Temperature: 32 to 104°F / 0 to 40°C
Humidity: 20 to 80% RH (non-condensing) | | Dimensions | 1.73 x 8.39 x 5.98" / 44 x 213 x 152 mm | | Weight | 1.55 lb / 0.7 kg | | | | Box Dimensions (LxWxH) | 12.5 x 9.0 x 3.3" |
