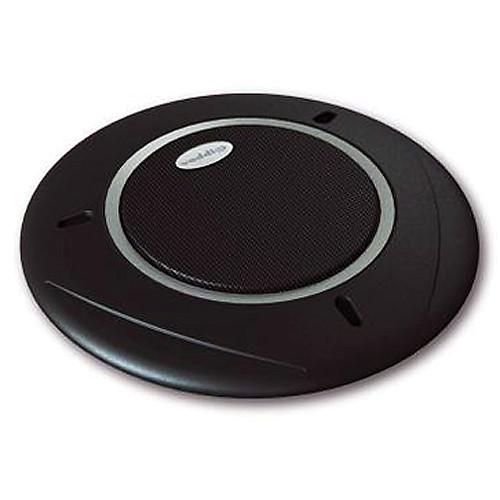

User Manual for Vaddio EasyMIC Table MicPOD Click to enlarge the picture
Contents of the user manual for the Vaddio EasyMIC Table MicPOD
- Product category: Automated Camera Components Vaddio
- Brand: Vaddio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vaddio Automated Camera Components
|
User manual for the Vaddio EasyMIC Table MicPOD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vaddio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vaddio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vaddio product will considerably shorten its lifespan!
|
Product description The Vaddio EasyMIC Table MicPOD features three unidirectional mic elements with three independent integrated echo cancellers. It is based on SmartMIC technology, which incorporates digital signal processing (DSP) and echo cancellation directly into the microphone itself. The internal DSP features microphone gating, equalization, AGC, and noise cancellation. With SmartMIC technology, internal DSP and echo cancellation can now be integrated into any manufacturer’s audio mixing system.
Each EasyMIC SmartMIC is equipped with an array of three electric condenser microphones positioned to form a 360° pickup pattern. This technology is based on the microphone’s ability to actively manage the room’s live audio for gain, gating, and echo cancellation. Once detected, the microphone will adjust and mix down to a single output. Because the intelligence is inside the microphone, any mixer can now be used in a live collaboration application for audio conferencing and achieve outstanding results. - Table microphone with built-In Acoustic Echo Cancellation (AEC)
- Three electret condenser microphones positioned to form a 360° pickup pattern
- Connects to the mic's I/O with a single Cat5 cable carrying audio and power
- Built-in digital signal processing
- Automatic Gain Control (AGC)
In the Box Vaddio EasyMIC Table MicPOD (No Keypad) Cat5 Cable (25') Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio EasyMIC Table MicPOD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVaddio 999-8850-000 Specs | | | Frequency Response | 20 Hz to 20 kHz | | Dynamic Range | >90 dB | | THD + N | <0.02% | | | | Type | 3 x Unidirectional cardioid elements per device | | Frequency Response | 100 to 12 kHz | | Maximum Input Level | 115 dB/SPL | | Microphone Connector | 1 x RJ45F, proprietary interface with audio, power, and control up to 100' (30.4 m) via Cat5 | | Power Consumption | Less than 4 W per mic | | Operating Temperature | 2 to 104°F (-16 to 40° C) | | Humidity | 0 to 80% RH | | Dimensions (HxD) | 1.0 x 7.0" (2.5 x 17.8 cm) | | Weight | 0.472 lb (0.214 kg) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 10.2 x 9.3 x 3.2" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 88 owners. Add your rating and experience with the product.
