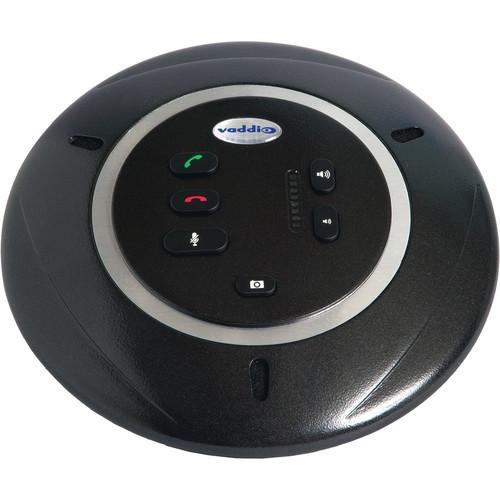

User Manual for Vaddio EasyMIC Table MicPOD with Keypad Click to enlarge the picture
Contents of the user manual for the Vaddio EasyMIC Table MicPOD with Keypad
- Product category: Automated Camera Components Vaddio
- Brand: Vaddio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vaddio Automated Camera Components
|
User manual for the Vaddio EasyMIC Table MicPOD with Keypad contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vaddio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vaddio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vaddio product will considerably shorten its lifespan!
|
Product description The Vaddio EasyMIC Table MicPOD delivers professional audio quality to your Windows system. It delivers the performance of three microphones built into a tabletop or pendant hanging enclosure.
With an ultra-wide 360° pickup coverage, this MicPOD Microphone is capable of providing good coverage for an average size meeting room table. For larger tables a second MicPOD (sold separately) can be added for additional coverage.
This MicPOD Microphone is equipped with integrated echo cancellation and digital signal processing, including compression, equalization, filtering, and AGC (Automatic Gain Control). Thanks to its plug-and-play design, installation is simple. Power, control and audio are all incorporated into the cable - Built-in echo cancellation
- Three unidirectional condenser elements for 360° coverage
- AEC per microphone element
- Typical pickup coverage of 6 to 10'
- DSP integrated into the MicPOD for hands-free conferencing
- Master mute and volume controls plus on / off hook (if supported in UC Client)
- Home run to EasyUSB Mixer/Amp with standard Cat 5 cable up to 100' (audio, control, power)
- Low profile design with diameter of 7.5"
In the Box Vaddio EasyMIC Table MicPOD with Keypad 25' Cat 5 Cable (Black) Limited 1-Year Warranty On Parts Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio EasyMIC Table MicPOD with Keypad in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVaddio MicPOD Specs | Audio | Frequency Response: 20 Hz to 20 kHz
Dynamic Range: >90 dB
THD + Noise: <0.02% | | Microphone | 3 unidirectional Cardioid mics per MicPOD
Frequency Response: 100 Hz to 12 kHz
Maximum Input Level: 115 dB SPL | | Ports | EasyMic
Connectors: 2 x RJ45
Proprietary Interface: Audio, power, and control
Cat 5 Cable Distance: Maximum 100.0' (30.4 m) | | Settings | Audio Processing
Acoustical echo cancellation, automatic gain control, noise reduction, automatic microphone mixing | | User Controls | Mute, volume, On/Off hook, 1-touch camera tracking | | Operating Conditions | Temperature: 32 to 104°F (0 to 40°C)
Relative Humidity: 20 to 80% | | Power Consumption | Maximum 40 W | | Dimensions (Ø x H) | 7.0 x 1.0" (177.8 x 25.4 mm) | | Weight | 0.47 lb (0.21 kg) | | | | Package Weight | 1.485 lb | | Box Dimensions (LxWxH) | 10.3 x 9.4 x 3.35" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 87 owners. Add your rating and experience with the product.
