User Manual for Vaddio EasyTalk USB Audio Bundle Click to enlarge the picture
Contents of the user manual for the Vaddio EasyTalk USB Audio Bundle
- Product category: Automated Camera Components Vaddio
- Brand: Vaddio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vaddio Automated Camera Components
|
User manual for the Vaddio EasyTalk USB Audio Bundle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vaddio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vaddio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vaddio product will considerably shorten its lifespan!
|

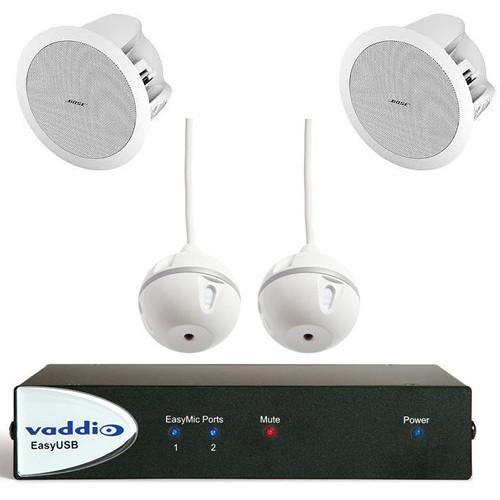

Product description The Vaddio EasyTalk USB Audio Bundle is a USB audio-conferencing solution for medium size rooms using PC-based unified communication applications that require ceiling installation. Both microphones and speakers are recessed in the ceiling. The system includes 2 EasyMic Ceiling MicPOD Microphones with integrated echo canceling and for extended coverage within the room, 1-pair (2) of Bose DS-16 Ceiling Speakers (white) with Tile Support Braces and Plenum Back Can to maximize sound distribution within the room, and 1 EasyUSB Mixer/Amp.
The EasyUSB Mixer/Amp is an integrated audio mixer and amplifier that connects to a PC as a single microphone and speaker channel. It supports up to 2 EasyTALK MicPOD microphones. In addition, analog line level I/O interfaces allow for integration with external AV equipment such as videoconferencing codecs, external amplifiers, or LCD displays. The EasyUSB Mixer/Amp also has a two 20W integrated audio amplifiers for connection to external 4/8 Ω speakers.
The EasyTALK USB uses a standard UAC driver, based on the guidelines set by the USB Implementers Forum, so you do not need to download any additional softwares or drivers. You just have to plug in each device, and they will work automatically with any operating system such as Windows, Mac, Linux, and many more. It’s completely driver-free, and is designed as plug-and-play audio solution for software-based conferencing systems.
The white EasyMic Ceiling MicPOD Microphone delivers professional audio quality for your PC system. Each MicPOD Microphone delivers the performance of 3 microphones built into a tabletop or pendant hanging enclosure. This echo canceling ceiling microphone provides a 360° pickup pattern.
With ultra wide 360° pickup coverage, 1 MicPOD Microphone is capable of providing good coverage for an average size meeting room table. For those larger tables a second MicPOD Microphone (sold separately) can be added for additional coverage.
Each microphone element is equipped with integrated echo cancellation and digital signal processing, including compression, equalization, filtering, and AGC (Automatic Gain Control). Because of the plug-and-play design, installation is as simple as connecting Cat. 5 cable between the EasyUSB Mixer Amp and the EasyMICs. Power, control and audio are all incorporated into the single cable.
The Bose DS-16 Speaker Kit is a high-performance, flush-mount loudspeaker kit optimized for voice reproduction when used with the EasyUSB Mixer/Amp. In the Box Vaddio EasyTalk USB Audio Bundle (System C) EasyUSB Mixer/Amp aaezzqeyxbffwtvcvdsxyfdeftxbrerzee Bose DS-16 Speaker Kit for EasyUSB Mixer/Amp 2 x EasyMic Ceiling MicPOD Microphone (White) Limited 1-Year Warranty on Parts Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio EasyTalk USB Audio Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVaddio 999-8640-000 Specs | | | Package Weight | 39.75 lb | | Box Dimensions (LxWxH) | 27.0 x 26.0 x 12.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 24 owners. Add your rating and experience with the product.
