User Manual for Vaddio EasyUSB AudioBRIDGE Analog Audio to USB Converter Click to enlarge the picture
Contents of the user manual for the Vaddio EasyUSB AudioBRIDGE Analog Audio to
- Product category: Automated Camera Components Vaddio
- Brand: Vaddio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vaddio Automated Camera Components
|
User manual for the Vaddio EasyUSB AudioBRIDGE Analog Audio to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vaddio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vaddio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vaddio product will considerably shorten its lifespan!
|

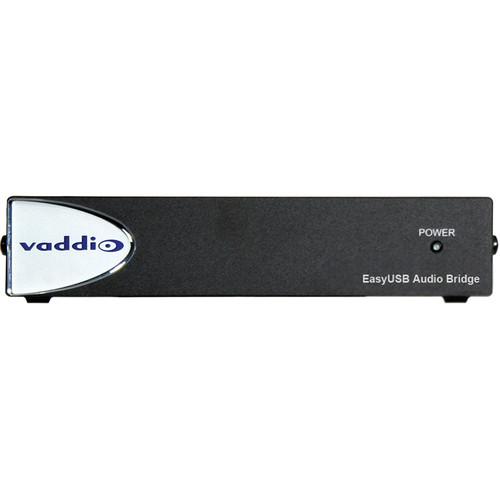

Product description The EasyUSB AudioBRIDGE Analog Audio to USB Converter from Vaddio is a professional analog audio to digital audio USB 2.0 converter. The unit features a balanced and or an unbalanced audio source equipment input and output. The analog audio input is converted into a digital USB format making it compatible with common video conferencing software. The AudioBRIDGE is compatible with pro audio conferencing DSP mixers with echo cancellation as well as audio equipment without internal echo cancellation. The converter USB 2.0 port uses universal audio class (UAC) drivers and connects to any PC with UC client software. An 8-position DIP switch provides configuration settings of the unit.
The AudioBRIDGE includes independent USB and analog gain stages. The gain structures can be configured between the pro audio equipment without being impacted by PC volume controls. Additionally, the AudioBRIDGE includes an RS-232 serial control port for use with AMX/Crestron control systems. - Balanced and Unbalanced line input and output
- Compatible with standard online video conferencing software
In the Box Vaddio EasyUSB AudioBRIDGE Analog Audio to USB Converter 18 VDC, 1.0 Amp Switching Power Supple with AC clips 6' (1.83m) USB Type-A to Type-B Cable (Black) Control Adapter (DE-9-F to RJ-45-F) 4 x Rubber Feet Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio EasyUSB AudioBRIDGE Analog Audio to USB Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVaddio 999-8536-000 Specs | Audio Bandwidth | 20 Hz - 20 kHz | | Dynamic Range | > 90 dB | | THD + N | < 0.2% | | Audio Input | Balanced: Impedance; 10 KΩ, Nominal Level; +4 dBu
Unbalanced: Impedance; 10 KΩ, Nominal Level; -10 dBV | | Audio Output | Balanced: Impedance; 50 Ω, Nominal Level; +4 dBu
Unbalanced: Impedance; 10 KΩ, Nominal Level; -10 dBV | | CE Compliance | FCC 47 CFR Part 15, Subpart B/Oct. 2009 Class A
ICES-003, Issue 4: 2004 Class A
EN-55011:2007 + A2: 2007 Class A
EN 55022:2006 + A1: 2007 Class A
CISPR 22:1997 Class A
IEC 60950-1:2005 (Second Edition); Am 1:2009 Safety
EN 60950-1:2006+A11:2009+A1:2010+A12:2011 Safety
EMC Directive 2004/108/EC Class A | | Compatibility | Software Client:
Cisco Jabber(4.4), Web Ex(WBS 28.7), Skype(6.0), Adobe Connect (9.0.1), Microsoft Lync (4.0.7), Gotomeeting/Citrix(5.4), Vidyo Desktop(2.2.1), Polycom M100(1.0.4), Lifesize ClearSea(8.2.0), Google Plus, Panopto(4.2.5602), Quick Time Media Player(2.0.4), VLC Media Player(10.2), Real Player
Unified Communications Client:
IOCOM, Radvison Scopia, Apple FaceTime, Blackboard, Tegrity, Echo 360, USTREAM, Livestream, PresenterPro, Microsoft Expressions Encoder 3, VCON, AVAYA ONE | | | | Connectors | 1 x USB type B
1 x RJ-45, RS-232 serial port 38.4K baud
1 x RCA female, unbalanced audio input
1 x RCA female, unbalanced audio output
1 x 3-pin Euro terminal block, balanced audio input
1 x 3-pin Euro terminal block, balanced audio output
1 x DC barrel, 18 VDC, power input | | Indicators | 1 x LED, power | | Controls | 1 x 8-postition DIP switch, audio settings | | Audio Interface | Type: USB 2.0 compliant
PC Audio Controls: Mute & Volume
PC HID Controls: On/Off Hook (application dependent) | | Power Supply | 18 VDC, 1.0 A | | Power Consumption | < 18 W | | Operating Temperature Range | 32 to 104°F (0 to 40°C) | | Humidity (Relative) | 20% to 80% | | Dimensions (H x W x D) | 1.7 x 8.4 x 6.0" (4.4 x 21.3 x 15.2 cm) | | Weight | 1.40 lb (0.64 kg) | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 16.1 x 9.5 x 3.4" |
