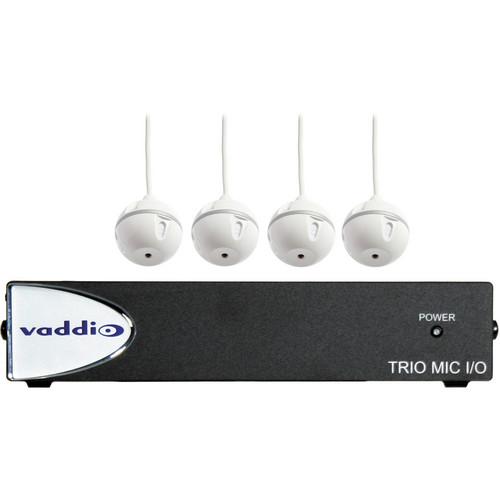

Product description The Vaddio EasyUSB MicPOD Bundle is a professional audio conferencing solution for medium to large-sized rooms. It includes the EasyUSB MicPOD I/O interface and four Ceiling MicPODs.
The EasyUSB I/O Interface is based on SmartMIC technology, which adds live audio conferencing to room designs. As an interface between the EasyUSB mics and any professional audio mixer, internal DSP and echo cancellation can now be integrated into any manufacturer’s audio mixing system.
The EasyUSB I/O Interface device allows the connection of up to four SmartMICs, and because each input is effectively running three microphones on three different channels, users can technically run 12 mics, all with independent echo cancellation and internal DSP. For installations requiring more than 12 SmartMICs, just add an additional EasyUSB Mic I/O (sold separately) for 12 more channels.
The Ceiling MicPOD is based on SmartMIC technology, which incorporates digital signal processing and echo cancellation directly into the microphone itself. The internal DSP features microphone gating, equalization, AGC, and noise cancellation.
Each EasyUSB SmartMIC is equipped with an array of three electric condenser microphones positioned to form a 360° pickup pattern. This technology is based on the microphone’s ability to actively manage the room’s live audio for gain, gating, and echo cancellation. Once detected, the microphone will adjust and mix down to a single output. Because the intelligence is inside the microphone, any mixer can now be used in a live collaboration application for audio conferencing. - EasyUSB MicPOD I/O Interface The Vaddio EasyUSB MicPOD I/O Interface is based on Vaddio’s SmartMIC technology, a simple approach to adding live audio conferencing to room designs. As an interface between the EasyUSB Mics and any professional audio mixer, internal DSP and echo cancellation can be integrated into any manufacturer’s audio mixing system.
Each EasyUSB SmartMIC is equipped with an array of three electric condenser microphones positioned to form a 360° pickup pattern. This technology is based on the microphone’s ability to actively manage the room’s live audio for gain, gating, and echo cancellation. Once detected, the microphone adjusts and mixes down to a single output. Because the intelligence is inside the microphone, any mixer can now be used in a live collaboration application for audio conferencing and achieving optimal results.The I/O interface device allows the connection of up to four SmartMICs, and because each input is effectively running three microphones on three different channels, users can technically run 12 microphones all with independent echo cancellation and internal DSP. Note: For installations requiring more than 12 SmartMICs, just add an additional EasyUSB MicPOD I/O for 12 more channels. - Four-channel EasyUSB microphone interface with AEC Reference Input and four balanced line outputs.
- Interface device between EasyUSB SmartMICs and any professional conferencing mixer.
- Compatible with TRIO table and ceiling microphone arrays.
- Connect up to four SmartMICs.
- Allows running of 12 mics, all with independent echo cancellation and internal DSP.
- TRIO Acoustic Echo Canceling Ceiling Mic Array (White) The white TRIO Acoustic Echo Canceling Ceiling Mic Array from Vaddio is a small, 2.5" AEC microphone array that blends into any room decor. The 3 mic elements create a 360º coverage pattern. It comes with a plenum-safe interface box, a tile support brace, and an adjustable 36” long cable to the microphone array head.
- Signal Processing: Acoustic Echo Cancellation, Noise Reduction, Microphone Gating, and Automatic Gain Control
In the Box Bundle Items EasyUSB MicPOD I/O Interface dredxcqzez - 5 x 3-Position Phoenix Connector
4 x TRIO Acoustic Echo Canceling Ceiling Mic Array (White) - Plenum-Safe Interface Box
- 36.0" Cable to Microphone Array Head
Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio EasyUSB MicPOD I O Interface with Four Ceiling MicPODs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - EasyUSB MicPOD I/O Interface
| Frequency Response | 20 Hz to 20 kHz | | Dynamic Range | >90 dB | | Line Outputs | 4 x 3-pin Phoenix | | Reference Input | AEC: 1 x 3-pin Phoenix | | Mic Inputs | 4 x RJ45F TRIO proprietary | | Power Supply | 18 VDC, 2.75 A | | Operating Temperature | 32 to 104°F (0 to 40°C)
20 to 80% RH | | Dimensions (W x H x D) | 8.4 x 1.7 x 6.0" (21.3 x 4.3 x 15.2 cm) | | Weight | 1.45 lb (657.7 g) | | | | Box Dimensions (LxWxH) | 16.1 x 9.4 x 3.4" | - TRIO Acoustic Echo Canceling Ceiling Mic Array (White)
| | | Frequency Response | 20 Hz to 20 kHz | | Dynamic Range | >90 dB | | THD + Noise | <0.02% | | | | Elements | 3 unidirectional cardioid per device | | Frequency Response | 100 to 12 kHz | | Maximum Input Level | 115 dB/SPL | | Port | Mic: Proprietary Interface with audio Power and control up to 100.00' (30.48 m) over a CAT5 cable (sold separately) | | Operating Environment | 32 to 104°F (0 to 40°C) / 20 to 80% Relative Humidity | | Power Consumption | Less than 4 W per mic | | Dimensions | 2.5" (63.5 mm) diameter sphere | | Weight | 0.113 lb (0.051 kg) | | | | Box Dimensions (LxWxH) | 25.5 x 5.5 x 5.3" |
