Product description

• EasyUSB MicPOD I/O Interface The Vaddio EasyUSB MicPOD I/O Interface is based on Vaddio’s SmartMIC technology, a simple approach to adding live audio conferencing to room designs. As an interface between the EasyUSB Mics and any professional audio mixer, internal DSP and echo cancellation can be integrated into any manufacturer’s audio mixing system.

  Each EasyUSB SmartMIC is equipped with an array of three electric condenser microphones positioned to form a 360° pickup pattern. This technology is based on the microphone’s ability to actively manage the room’s live audio for gain, gating, and echo cancellation. Once detected, the microphone adjusts and mixes down to a single output. Because the intelligence is inside the microphone, any mixer can now be used in a live collaboration application for audio conferencing and achieving optimal results.The I/O interface device allows the connection of up to four SmartMICs, and because each input is effectively running three microphones on three different channels, users can technically run 12 microphones all with independent echo cancellation and internal DSP. Note: For installations requiring more than 12 SmartMICs, just add an additional EasyUSB MicPOD I/O for 12 more channels.
  • Four-channel EasyUSB microphone interface with AEC Reference Input and four balanced line outputs.
  • Interface device between EasyUSB SmartMICs and any professional conferencing mixer.
  • Compatible with TRIO table and ceiling microphone arrays.
  • Connect up to four SmartMICs.
  • Allows running of 12 mics, all with independent echo cancellation and internal DSP.

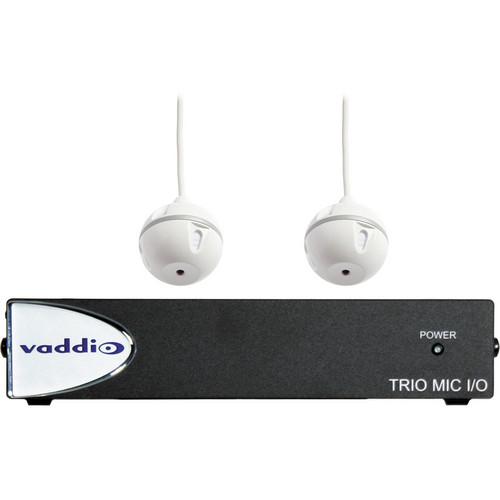

• TRIO Acoustic Echo Canceling Ceiling Mic Array (White) The white TRIO Acoustic Echo Canceling Ceiling Mic Array from Vaddio is a small, 2.5" AEC microphone array that blends into any room decor. The 3 mic elements create a 360º coverage pattern. It comes with a plenum-safe interface box, a tile support brace, and an adjustable 36” long cable to the microphone array head.
  • Signal Processing: Acoustic Echo Cancellation, Noise Reduction, Microphone Gating, and Automatic Gain Control

• Power Supply

• 5 x 3-Position Phoenix Connector

• 4 x Rubber Foot

• Limited 2-Year Warranty

• Plenum-Safe Interface Box

• Tile Support Brace

• 36.0" Cable to Microphone Array Head

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• EasyUSB MicPOD I/O Interface

  Frequency Response	20 Hz to 20 kHz
  Dynamic Range	>90 dB
  Line Outputs	4 x 3-pin Phoenix
  Reference Input	AEC: 1 x 3-pin Phoenix
  Mic Inputs	4 x RJ45F TRIO proprietary
  Power Supply	18 VDC, 2.75 A
  Operating Temperature	32 to 104°F (0 to 40°C) 20 to 80% RH
  Dimensions (W x H x D)	8.4 x 1.7 x 6.0" (21.3 x 4.3 x 15.2 cm)
  Weight	1.45 lb (657.7 g)

  Box Dimensions (LxWxH)	16.1 x 9.4 x 3.4"

• TRIO Acoustic Echo Canceling Ceiling Mic Array (White)

  Frequency Response	20 Hz to 20 kHz
  Dynamic Range	>90 dB
  THD + Noise	<0.02%

  Elements	3 unidirectional cardioid per device
  Frequency Response	100 to 12 kHz
  Maximum Input Level	115 dB/SPL
  Port	Mic: Proprietary Interface with audio Power and control up to 100.00' (30.48 m) over a CAT5 cable (sold separately)
  Operating Environment	32 to 104°F (0 to 40°C) / 20 to 80% Relative Humidity
  Power Consumption	Less than 4 W per mic
  Dimensions	2.5" (63.5 mm) diameter sphere
  Weight	0.113 lb (0.051 kg)

  Box Dimensions (LxWxH)	25.5 x 5.5 x 5.3"
