User Manual for Vaddio EasyUSB PRO MIC I O Interface Click to enlarge the picture
Contents of the user manual for the Vaddio EasyUSB PRO MIC I O
- Product category: Automated Camera Components Vaddio
- Brand: Vaddio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vaddio Automated Camera Components
|
User manual for the Vaddio EasyUSB PRO MIC I O contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vaddio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vaddio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vaddio product will considerably shorten its lifespan!
|

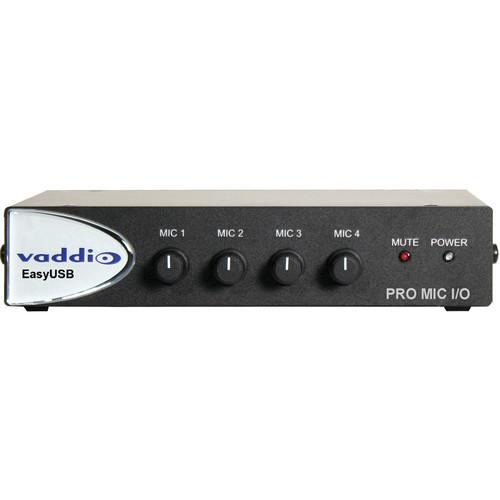

Product description The EasyUSB PRO MIC I/O Interface from Vaddio allows you to use up to 4 A/V microphones in a PC conferencing system with the EasyUSB Mixer/Amp (sold separately). The front panel controls allow you to easily set the desired gain on the connected microphones with the help of four knobs and two indicator LEDs.The Dip switches on the rear panel allow you to control functions such as the low or high cut filter, phantom power (per microphone), and GPIO for mute status. It also features front panel lock-out to protect the knobs from being tampered with.The PRO MIC I/O features 3-pin female XLR connectors that allow you to connect table, gooseneck, or button microphones (sold separately). Each input channel incorporates an echo cancellation processing chain that is optimized for use with Unified Communications software applications such as Microsoft Lync, Cisco Jabber, Skype, WebEx, Vidyo, GoToMeeting, etc. Note: The PRO MIC I/O is intended to be used in conjunction with the EasyUSB Mixer/Amp only. There is no power supply included with the PRO MIC I/O as it's powered from the EasyMic Ports on the EasyUSB Mixer/Amp. In the Box Vaddio EasyUSB PRO MIC I/O Interface Limited 2-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio EasyUSB PRO MIC I O Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVaddio 999-8520-000 Specs | Frequency Response | 20 Hz to 20 kHz | | Dynamic Range | >90 dB | | THD + Noise | < 0.02% | | Microphone Input | 4 x XLR female balanced microphone inputs
48 VDC Phantom Power
Microphone Preamp-adjustable from 10 to 46 dB gain | | Audio Processing | Acoustical Echo Cancellation, Automatic Gain Control, Noise Reduction, Automatic Microphone Mixing, HP/LP Filters | | User Controls | Front Panel Rotatory Gain Controls, rear DIP Switches for audio processing and GPIO | | Ports | EasyMic Ports: 1 x RJ45 female proprietary interface (audio, power, & control), Maximum CAT5 Cable Distance: 100.0' (30.5 m)
Control Port: RJ45 female Vaddio Std. RS-232 Pin-out for CAT5 cable Cable sold separately | | Operating Temperature | 32 to 104°F (0 to 40°C)
273.15 to 313.15 K | | Relative Humidity | 20 to 80% | | Dimensions (H x W x D) | 1.7 x 8.4 x 6.0" (43.7 x 212.7 x 152.4 mm) | | Weight | 1.4 lb (0.6 kg) | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 16.1 x 9.5 x 3.3" |
