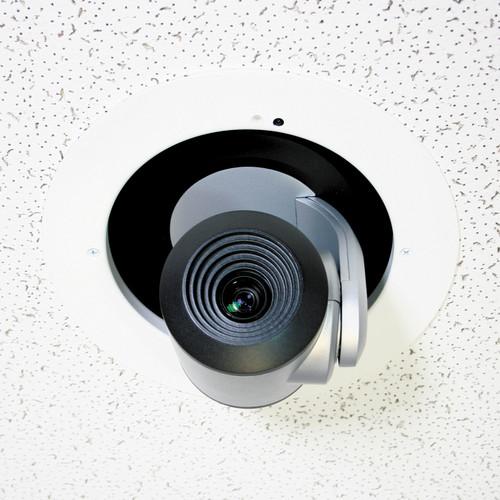

User Manual for Vaddio In-Ceiling Half-Recessed Enclosure for RoboSHOT PTZ Cameras Click to enlarge the picture
Contents of the user manual for the Vaddio In-Ceiling Half-Recessed Enclosure for RoboSHOT
- Product category: Camera Mounts Vaddio
- Brand: Vaddio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vaddio Camera Mounts
|
User manual for the Vaddio In-Ceiling Half-Recessed Enclosure for RoboSHOT contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vaddio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vaddio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vaddio product will considerably shorten its lifespan!
|
Product description Vaddio's In-Ceiling Half-Recessed Enclosure for RoboSHOT PTZ Cameras is a partially recessed inverted enclosure. Specifically designed for Vaddio's line of RoboSHOT PTZ camera, the enclosure includes a one-piece tile support brace with six hangar points, and a decorative white collar that incorporates an active IR receiver that allows you to use an optional Vaddio IR commander to control a Vaddio RoboSHOT camera (camera not included.) - The metal enclosure box installs within the ceiling, and features and active IR emitter board and power circuit board.
- Metal enclosure box features a Romex connector that secures your Cat5e cable and prevents it from moving against the enclosure.
- You can replace the Romex connector with optional conduit connectors, when use of optional conduit is preferred to exposed Cat5e cable.
In the Box Vaddio In-Ceiling Half-Recessed Enclosure for RoboSHOT PTZ Cameras 2.22" Tall Sealed Metal Back Box with Internal IR emitter and Power Circuit Board Back Box Lid with Collar Ring White Trim Ruing with IR Receiver Attached 18" IR Receiver Cable with Connectors 24" Cat-5e Patch Cable 2 x White 6-32 x .5 Flat Head Screws for Trim Ring 2 x 1/4"-20 x .625 Screws 4 x 6-32 x .25" Black Flat Head Screws One-Piece Tile Support Brace with 6 x Hangar Points 3/4" Clamp Down Conduit Connector (Romex Type) 1" Platform Spacer Block for HD-20, HD-22, HD-30 and HD-USB Camera 2 x 1/4" -20 x 1.125" Screws for Use with HD-20 Camera Spacer Block Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio In-Ceiling Half-Recessed Enclosure for RoboSHOT PTZ Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVaddio 999-2225-150 Specs | Ceiling Panel Size | 2 x 2' or 2 x 4' / 61 x 61 cm or 61 x 122 cm | | | | Package Weight | 11.05 lb | | Box Dimensions (LxWxH) | 23.9 x 15.5 x 12.2" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 30 owners. Add your rating and experience with the product.
