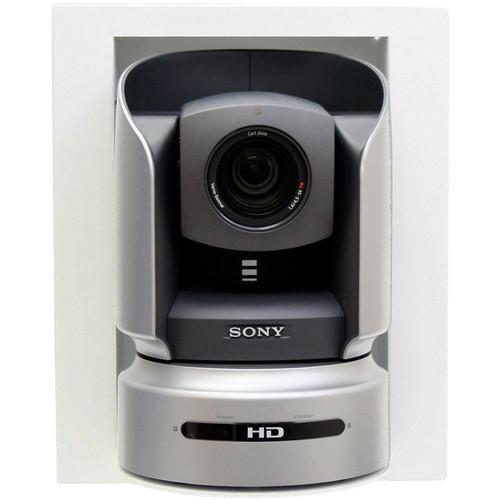

User Manual for Vaddio In-Wall Enclosure for Select Canon, Panasonic, Sony PTZ Cameras Click to enlarge the picture
Contents of the user manual for the Vaddio In-Wall Enclosure for Select Canon,
- Product category: Camera Mounts Vaddio
- Brand: Vaddio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vaddio Camera Mounts
|
User manual for the Vaddio In-Wall Enclosure for Select Canon, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vaddio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vaddio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vaddio product will considerably shorten its lifespan!
|
Product description The Vaddio In-Wall Enclosure for Select Canon, Panasonic, Sony PTZ Cameras is designed to fit the Canon XU-80 and XU-81, Panasonic AW-HE120, and Sony BRC-H700 and BRC-H900 PTZ cameras. It's also compatible with WallView CCU and WallView PRO. A camera completely recesses into the wall using the depth of the wall cavity to provide a neatly finished look. While the in-wall mounting box can be installed during room build-out, the camera platform and face frame can be recessed later. The enclosure is designed with 3 conduit knockouts (2-sides, 1-top) for flexibility and a cable pass-through slot in the base for easy camera cabling. Its powder coat finish offers durability; the enclosure can be painted any color to match the room's décor. - Supports Canon XU-80 and XU-81, Panasonic AW-HE120, and Sony BRC-H700 and BRC-H900 PTZ cameras, WallView CCU, and WallView PRO
- Uses the depth of the wall cavity to recess the camera into the wall
- Includes metal back box enclosure, camera platform and face frame
- 3 conduit knockouts (2-sides, 1-top) for flexibility
- Reinforced camera platform for rigidity and strength
In the Box Vaddio In-Wall Enclosure for Select Canon, Panasonic, Sony PTZ Cameras Back Box Enclosure Camera Platform Face Frame Mounting Hardware Documentation 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio In-Wall Enclosure for Select Canon, Panasonic, Sony PTZ Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVaddio 999-2225-016 Specs | Dimensions (WxHxD) | (with platform)
8.6 x 13.3 x 10.4" (218 x 338 x 264mm) | | | | Package Weight | 9.95 lb | | Box Dimensions (LxWxH) | 18.9 x 13.8 x 11.2" |
