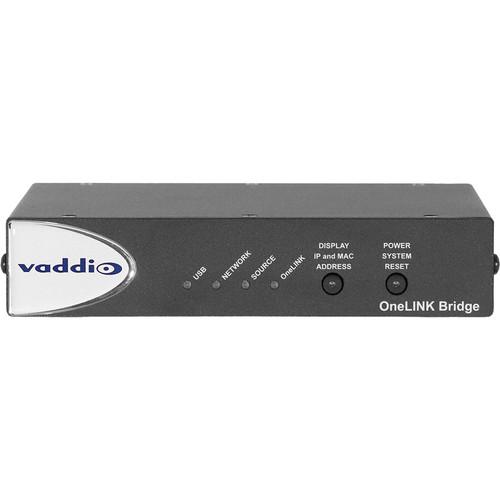

User Manual for Vaddio OneLINK Bridge A V Interface Receiver for HDBaseT Cameras Click to enlarge the picture
Contents of the user manual for the Vaddio OneLINK Bridge A V Interface
- Product category: Camera Accessories Vaddio
- Brand: Vaddio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vaddio Camera Accessories
|
User manual for the Vaddio OneLINK Bridge A V Interface contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vaddio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vaddio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vaddio product will considerably shorten its lifespan!
|
Product description The OneLINK Bridge A/V Interface Receiver from Vaddio connects a non-USB camera and audio source, and bridges to a USB stream for easy connection to USB-based conferencing applications such as Skype for Business, Google Hangouts, and Zoom. This OneLINK Bridge kit simplifies installation by extending power, video, and control to your Vaddio HDBaseT camera over a single Cat5e cable up to 328'. - Converts any conference room to a BYOD environment, delivering a USB stream for soft conferencing clients
- Connects professional A/V equipment to PC applications via USB 3.0 media stream
- Simultaneous uncompressed USB 3.0, HDMI 1.4b, and 3 Gb/s HD-SDI
- Two balanced audio inputs and two balanced audio outputs
- Control via web interface or Telnet
In the Box Vaddio OneLINK Bridge A/V Interface Receiver for HDBaseT Cameras (North America) Power Supply 4 x 3-Position 3.5mm Phoenix Plug USB Cable (6') RS-232 Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio OneLINK Bridge A V Interface Receiver for HDBaseT Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVaddio OneLINK Specs | Cable Run | Max: 328' / 100 m | | Resolution | Up to 1080p60 (Full HD) | | Connectors | 1 x HD-SDI input
1 x HDMI input
2 x Mic/Line audio inputs
1 x USB 3.0, video output with PCM audio
2 x Line audio outputs
1 x OneLINK digital camera interface
1 x Network, IP streaming and control
1 x RS-232, control
1 x Power port | | Control Features | Web interface for configuration via browser
Telnet API for third-party external control
USB Human Interface Device (HID) for room audio controls | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Power | 48 VDC, 1.36 A | | Dimensions | 1.7 x 8.4 x 6.0" / 4.4 x 21.3 x 15.2 cm | | Weight | 1.7 lb / 0.8 kg |
