Product description The OneLINK Digital Camera Extension System from Vaddio is a digital camera extension system for Polycom EagleEye IV cameras extending HDMI video, power, and control over a single Cat5e cable over distances up to 328'. The OneLINK system sends and regulates power to the camera, provides bidirectional control channels for RS-232, and transmits/receives uncompressed HDMI video at resolutions up to 1080p60 and 2160p30.

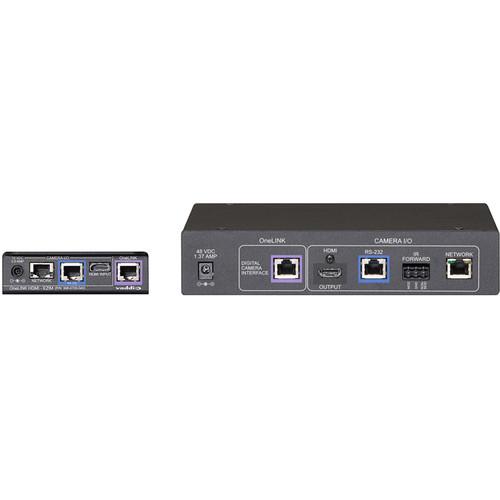

The system consists of a OneLINK EZIM camera interface at the camera location, and a OneLINK HDMI interface at the codec end. The system comes complete with a camera mount that also provides a convenient and unobtrusive mounting location for the EZIM and interface cables at the camera location. The EZIM provides the required camera connectivity and is mounted on the back wall of a heavy-duty gusseted wall bracket with mounting accommodation for the EagleEye IV camera. The gusseted wall bracket can be mounted directly to a two-gang sized electrical box, allowing for a professional and safe installation in a conduit system. In the Box Vaddio OneLINK Digital Camera Extension System for Polycom EagleEye IV Camera 48 VDC Switching Power Supply AC Power Cord Mini HDCI to HDMI, RS-232 & Power Plugs (Camera) HDCI to HDMI, RS-232 & Power Plugs (Codec) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio OneLINK Digital Camera Extension System for Polycom EagleEye IV Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVaddio 999-9520-000 Specs | Compatibility | Polycom EagleEye IV cameras
Polycom Group series codecs | | Resolution | HDMI up to 1080p60, 2160p30 | | Control Support | RS-232 and IR | | Transmission Range | 328' / 100 m over Cat5e | | Connectors | OneLINK Interface:

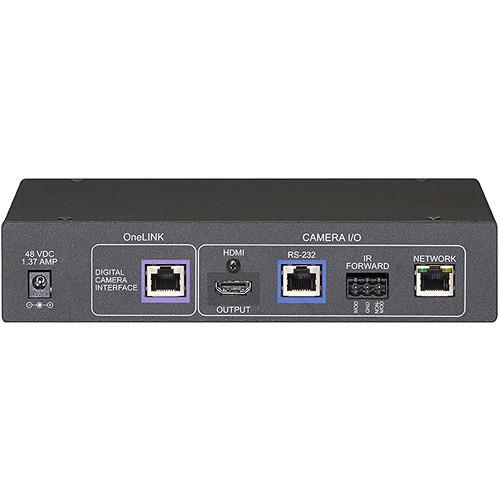

1 x RJ45 shielded, interconnection
1 x HDMI, video output
1 x RJ45 shielded, Ethernet
1 x RJ45 shielded, RS-232
1 x 5.5 mm DC barrel, power input
1 x 3-pin Phoenix, IR forward

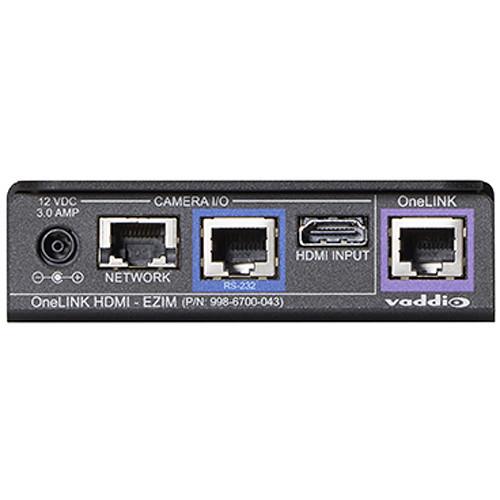

1 x OneLINK EZIM:
1 x RJ45 shielded, interconnection
1 x HDMI, video input
1 x RJ45 shielded, Ethernet
1 x RJ45 shielded, RS-232
1 x EIAJ-04, power output | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity (Relative) | 20 to 80% | | Camera Power | 12 VDC, 3 A from EZIM to camera | | Power Supply | 48 VDC, 1.37 A | | Dimensions | OneLINK HDMI Interface:
1.7 x 8.4 x 6.0" / 4.3 x 21.3 x 15.2 cm
OneLINK EZIM
3.9 x 4.3 x 1.2" / 9.8 x 10.9 x 3.2 cm | | Weight | OneLINK HDMI Interface:
1.6 lb / 703 g
OneLINK EZIM:
0.6 lb / 250 g | | | | Package Weight | 11.15 lb | | Box Dimensions (LxWxH) | 13.2 x 10.3 x 6.9" |
