User Manual for Vaddio OneLINK Digital Camera Extension System for RoboSHOT HDMI Cameras Click to enlarge the picture
Contents of the user manual for the Vaddio OneLINK Digital Camera Extension System
- Product category: Camera Accessories Vaddio
- Brand: Vaddio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vaddio Camera Accessories
|
User manual for the Vaddio OneLINK Digital Camera Extension System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vaddio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vaddio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vaddio product will considerably shorten its lifespan!
|

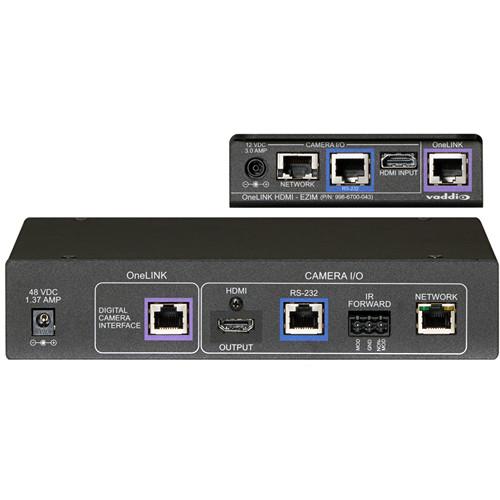

Product description The OneLINK Digital Camera Extension System from Vaddio is an HDBaseT camera extension system for RoboSHOT HDMI cameras extending HDMI video, power, and control over a single Cat5e/6 cable over distances up to 328'. The OneLINK system sends and regulates power to the camera, provides bidirectional control channels for Ethernet and RS-232, and transmits/receives uncompressed HDMI video at resolutions up to 1080p60 and 2160p30.
The system consists of a OneLINK EZIM camera interface at the camera location and a OneLINK HDMI interface. The EZIM provides the required camera connectivity and is mounted to the underside of the RoboSHOT HDMI camera's thin-profile wall mount (screws included). The OneLINK system comes with an array of 12" patch cables including an HDMI cable, a power cable, and two Cat5e cables for network and RS-232. The thin-profile wall mount can be mounted directly to a two-gang sized electrical box for conduit installations, or directly to drywall with wall anchors. In the Box Vaddio OneLINK Digital Camera Extension System for RoboSHOT HDMI Cameras 48 VDC Switching Power Supply AC Power Cord HDMI Cable (12") EIAJ-04 Power Cable (12") 2 x Cat5e Patch Cable (12") 2 x Mounting Screw Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio OneLINK Digital Camera Extension System for RoboSHOT HDMI Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVaddio 999-9590-000 Specs | Compatibility | RoboSHOT 12 HDMI and RoboSHOT 30 HDMI | | Transmission Range | 328' / 100 m over Cat5e | | Resolution | HDMI up to 1080p60, 2160p30 | | Connectors | OneLINK Interface:
1 x RJ45 shielded, interconnection
1 x HDMI, video output
1 x RJ45 shielded, Ethernet
1 x RJ45 shielded, RS-232
1 x 5.5 mm DC barrel, power input
1 x 3-pin Phoenix, IR forward
OneLINK EZIM:
1 x RJ45 shielded, interconnection
1 x HDMI, video input
1 x RJ45 shielded, Ethernet
1 x RJ45 shielded, RS-232
1 x EIAJ-04, power output | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity (Relative) | 20 to 80% | | Power Supply | 48 VDC, 1.36 A | | Dimensions | OneLINK HDMI Interface:
1.7 x 8.4 x 6.0" / 4.4 x 21.3 x 15.2 cm
OneLINK EZIM
3.9 x 4.3 x 1.2" / 9.8 x 10.9 x 3.2 cm | | Weight | OneLINK HDMI Interface:
24.8 oz / 703.1 g
OneLINK EZIM:
8.8 oz / 249.5 g | | | | Package Weight | 5.75 lb | | Box Dimensions (LxWxH) | 13.1 x 10.2 x 6.9" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 08 owners. Add your rating and experience with the product.
