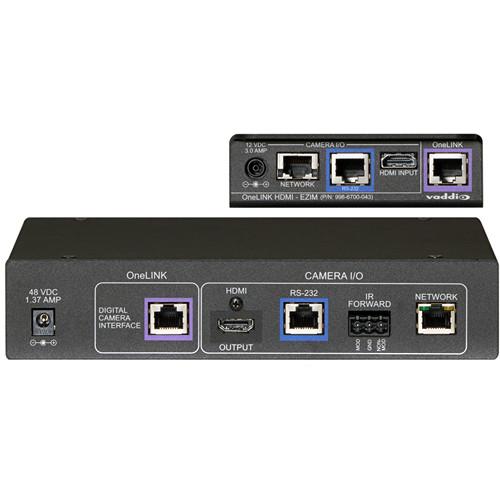

User Manual for Vaddio OneLINK HDBaseT Extender Set for Sony & Panasonic HDMI Cameras Click to enlarge the picture
Contents of the user manual for the Vaddio OneLINK HDBaseT Extender Set for
- Product category: Camera Accessories Vaddio
- Brand: Vaddio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vaddio Camera Accessories
|
User manual for the Vaddio OneLINK HDBaseT Extender Set for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vaddio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vaddio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vaddio product will considerably shorten its lifespan!
|
Product description The OneLINK HDBaseT Extender Set from Vaddio is a digital extension system for Sony and Panasonic HDMI cameras, extending HDMI video, power, network, and RS-232 control over a single Cat5e/6 cable to distances up to 328 ft. The OneLINK sends and regulates power to the camera, provides a bidirectional control channel for Ethernet and RS-232, and transmits/receives uncompressed HDMI video at resolutions up to 1080p60 and 2160p30.
The system consists of a OneLINK EZIM camera interface and a OneLINK HDMI interface. The EZIM provides camera connectivity and is mounted on the underside of the included thin-profile wall mount (screws included). The OneLINK comes with an array of 12" patch cables for the camera side, including an HDMI cable, two power cables, and two Cat5e cables for network and RS-232 serial control.
This system is compatible with the Sony SRG-120DH/300H and the Panasonic AW-HE40H/HE130 HDMI camera models. In the Box Vaddio OneLINK HDBaseT Extender Set for Sony & Panasonic HDMI Cameras (328') 48 VDC, 1.36A Switching Power Supply AC Power Cord 12" HDMI Cable 12" Sony 12 VDC Power Cable 12" Panasonic 12 VDC Power Cable 12" Cat5e Patch Network Cable 12" RJ45 to 8-Pin Mini-DIN RS-232 Cable Thin-Profile Wall Mount (Black) 2 x 6-32 x 0.188" Phillips Flat Head Screws (Black) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio OneLINK HDBaseT Extender Set for Sony & Panasonic HDMI Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVaddio 999-9530-000 Specs | Compatibility | Sony SRG-120DH & SRG-300H
Panasonic AW-HE40H & AW-HE130 | | Transmission Range | 328' (100m) over Cat5e/6 | | Resolution | Up to 1080p60, 2160p30 | | Connectors | OneLINK HDMI Interface:
RJ45 shielded, interconnection
HDMI, video output
RJ45 shielded, Ethernet
RJ45 shielded, RS-232
5.5 mm DC barrel, power input
3-Pin Phoenix, IR forward
OneLINK EZIM:
RJ45 shielded, interconnection
HDMI, video input
RJ45 shielded, Ethernet
RJ45 shielded, RS-232
EIAJ-04, power output | | Indicators | OneLINK HDMI Interface:
2 x LEDs on Ethernet port
OneLINK EZIM:
2 x LEDs on Ethernet port | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity (Relative) | 20 to 80% | | Power Supply | 48 VDC, 1.36 A | | Dimensions | OneLINK HDMI Interface:
1.7 x 8.4 x 6.0" (43.7 x 212.7 x 152.4 mm)
OneLINK EZIM
3.9 x 4.3 x 1.2" (98.1 x 109.5 x 31.5 mm) | | Weight | OneLINK HDMI Interface:
1.6 lb (703 g)
OneLINK EZIM:
0.6 lb (250 g) |
